November 14, 2016

ZSC31015 Datasheet

ZSC31015

Bsink

VBP

ExtTemp

VBN

VSS

Sig

VDD

Vgate

0.1

F

Vsupply

Ground

+5.5 to +30 V

OUT

Optional Bsink

BSS169

4.2.

Absolute Analog Voltage Output

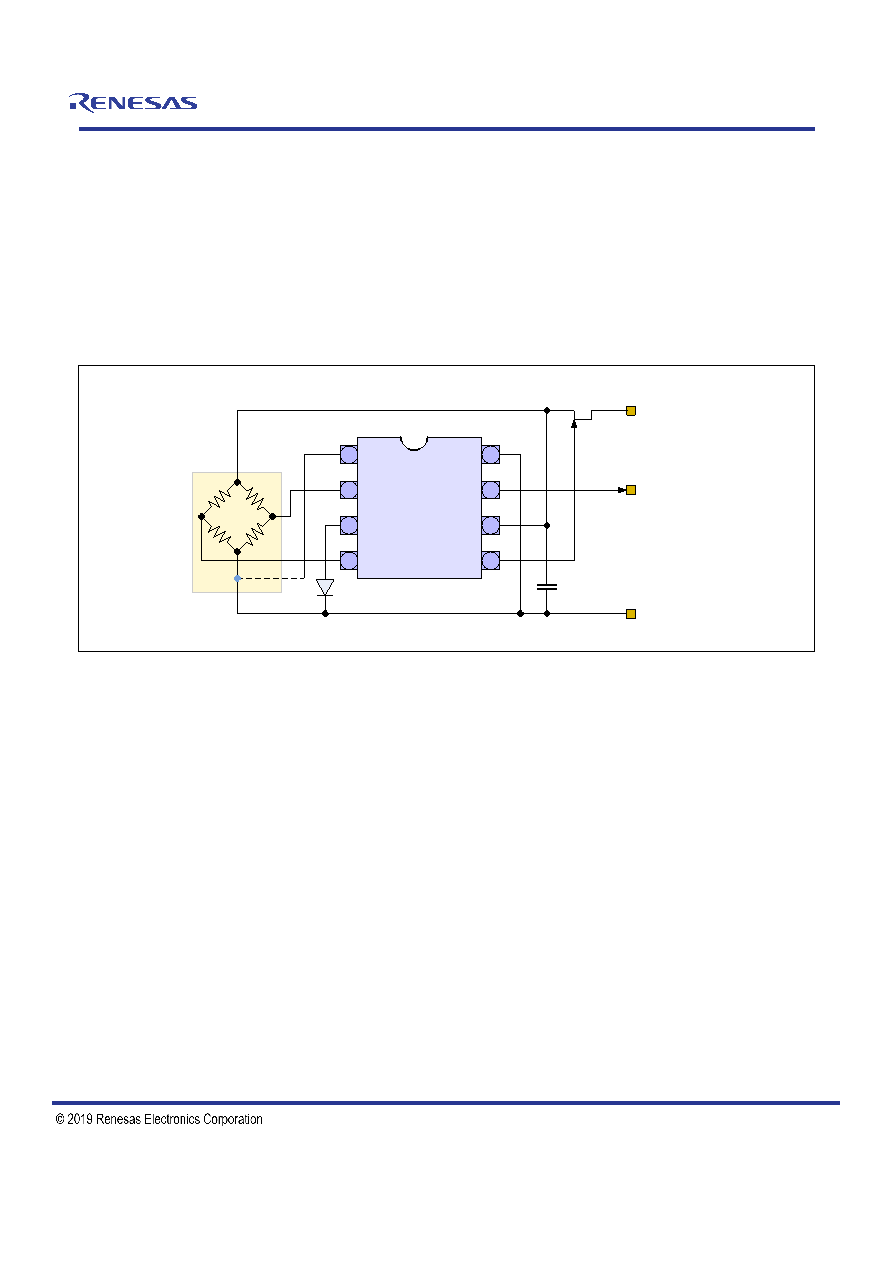

The figure below shows an application circuit for an absolute voltage output configuration with temperature com-

pensation via internal temperature PTAT and external JFET regulation for all industry standard applications.

Figure 4.2 Absolute Analog Voltage Output

– Temperature Compensation

via Internal Temperature PTAT with External JFET Regulation

The output signal range can be one of the following options:

 0 to 1 V analog output. The absolute voltage output reference is trimmable: 1 V (+/-3 mV) in the 1 V Output

Mode via a 4-bit EEPROM field (see section 2.4.3).

 Rail-to-rail analog output. The on-chip reference for the JFET regulator block is trimmable: 5 V (±15 mV) in

the Ratiometric Output Mode via a 4-bit EEPROM field. (See section 2.4.3).
