VIPER318HDTR Datasheet(PDF) 31 Page - STMicroelectronics

Part # VIPER318HDTR
Description  Energy saving offline high voltage converter
PDF  40 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  STMICROELECTRONICS [STMicroelectronics]
Direct Link  http://www.st.com
Logo STMICROELECTRONICS - STMicroelectronics

VIPER318HDTR Datasheet(HTML) 31 Page - STMicroelectronics

Back Button VIPER318HDTR Datasheet HTML 27Page - STMicroelectronics VIPER318HDTR Datasheet HTML 28Page - STMicroelectronics VIPER318HDTR Datasheet HTML 29Page - STMicroelectronics VIPER318HDTR Datasheet HTML 30Page - STMicroelectronics VIPER318HDTR Datasheet HTML 31Page - STMicroelectronics VIPER318HDTR Datasheet HTML 32Page - STMicroelectronics VIPER318HDTR Datasheet HTML 33Page - STMicroelectronics VIPER318HDTR Datasheet HTML 34Page - STMicroelectronics VIPER318HDTR Datasheet HTML 35Page - STMicroelectronics Next Button
Zoom Inzoom in Zoom Outzoom out
 31 / 40 page
background image

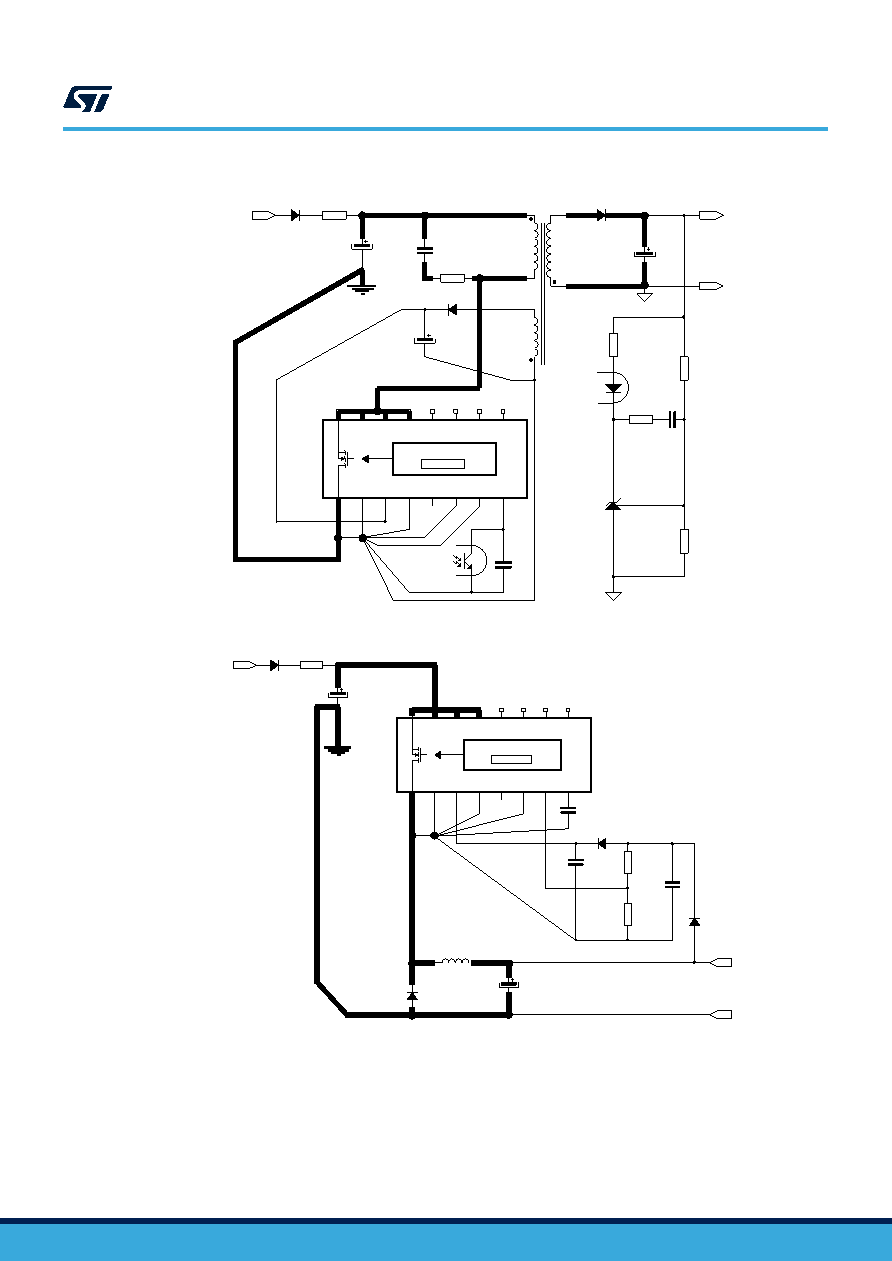

Figure 44. Recommended routing for flyback converter
C1
OPTO
ROPTO
~ AC
DIN
Cs
OPTO
RL
RH
TR
COUT
VOUT
GROUND
DOUT
CONTROL
DR.
DR.
DR. DR. N.C. N.C. N.C. N.C.
N.C.
GND
VCC N.A. UVP OVP FB COMP
VIPER31
RC
RIN
CIN
CCL
RCL
DAUX
CC
Figure 45. Recommended routing for buck converter
C1
D1
RL
RH
Cs
Cc
GROUND
CONTROL
DR.
DR.
DR. DR. N.C. N.C. N.C. N.C.
N.C.
GND
VCC N.A. UVP OVP FB COMP
VIPER31
~ AC
DIN
RIN
CIN
DAUX
LOUT
DOUT
COUT
VOUT
VIPER31
Layout guidelines and design recommendations
DS13285 - Rev 3
page 31/40
