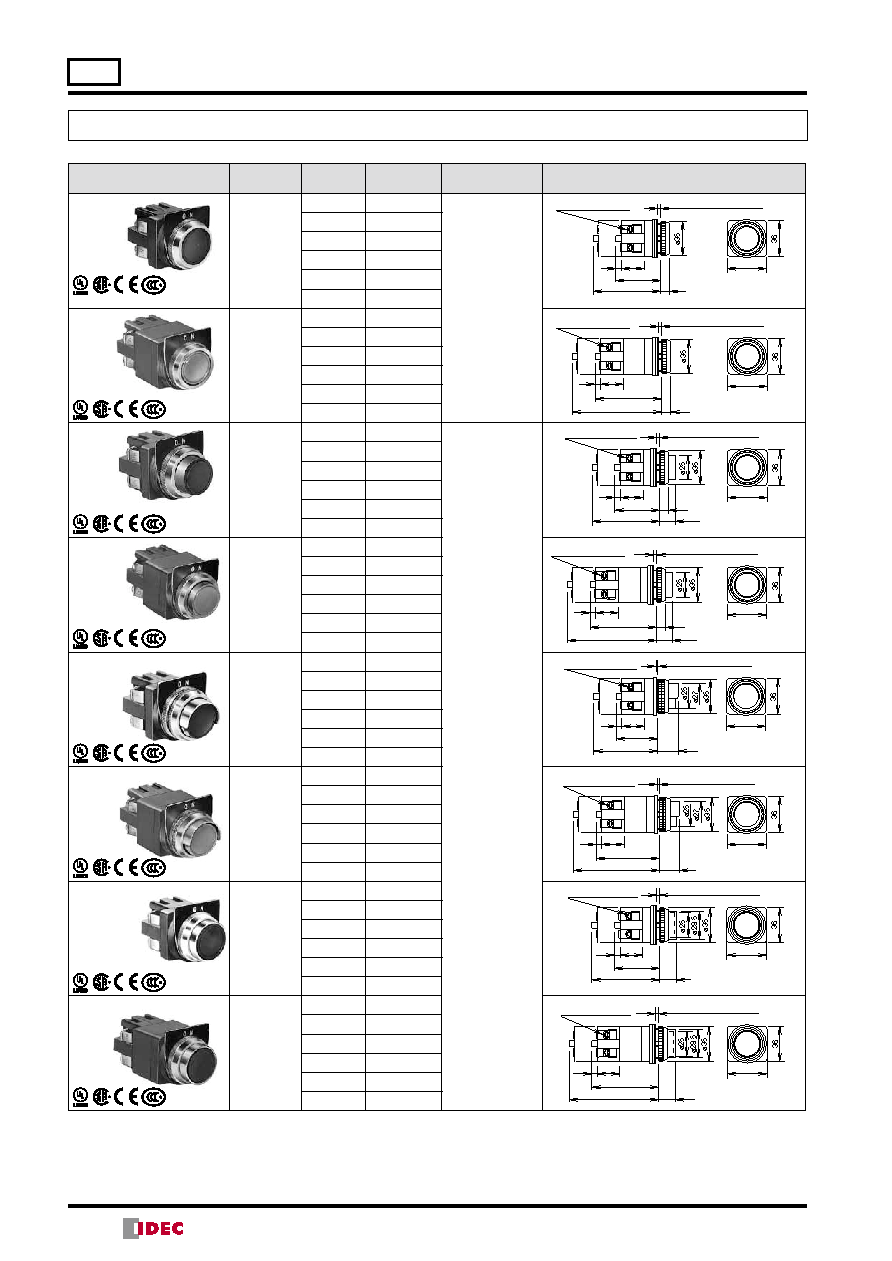

7 / 51 page  22 ø30 ø30 Series Pushbuttons Flush / Extended / Extended w/Half Shroud / Extended w/Full Shroud Pushbuttons Package Quantity: 1 Shape Operation Contact Part No. ➀ Button Color Code Dimensions (mm) Flush ABN1 Momentary 1NO ABN110➀ Black (B), green (G), and red (R) buttons are sup- plied with each unit. Specify S, W, or Y when a blue, white, or yellow button is required. M3.5 Terminal Screw 6 23 46 (1 or 2 blocks) 69 (3 or 4 blocks) 9 Panel Thickness 0.8 to 7.5 40 1NC ABN101➀ 1NO-1NC ABN111➀ 2NO ABN120➀ 2NC ABN102➀ 2NO-2NC ABN122➀ Flush AON1 Maintained 1NO AON110➀ M3.5 Terminal Screw 6 23 9 Panel Thickness 0.8 to 7.5 40 68 (1 to 2 blocks) 91 (3 to 4 blocks) 1NC AON101➀ 1NO-1NC AON111➀ 2NO AON120➀ 2NC AON102➀ 2NO-2NC AON122➀ Extended ABN2 Momentary 1NO ABN210➀ Specify a button color code in place of ➀ in the Part No. B: black G: green R: red S: blue W: white Y: yellow M3.5 Terminal Screw 6 23 46 (1 or 2 blocks) 69 (3 or 4 blocks) 9 Panel Thickness 0.8 to 7.5 40 15.5 1NC ABN201➀ 1NO-1NC ABN211➀ 2NO ABN220➀ 2NC ABN202➀ 2NO-2NC ABN222➀ Extended AON2 Maintained 1NO AON210➀ M3.5 Terminal Screw 6 23 9 Panel Thickness 0.8 to 7.5 40 15.5 68 (1 to 2 blocks) 91 (3 to 4 blocks) 1NC AON201➀ 1NO-1NC AON211➀ 2NO AON220➀ 2NC AON202➀ 2NO-2NC AON222➀ Extended with Half Shroud ABN2G Momentary 1NO ABN2G10➀ M3.5 Terminal Screw 6 23 40 Panel Thickness 0.8 to 4 20.5 42 (1 or 2 blocks) 65 (3 or 4 blocks) 1NC ABN2G01➀ 1NO-1NC ABN2G11➀ 2NO ABN2G20➀ 2NC ABN2G02➀ 2NO-2NC ABN2G22➀ Extended with Half Shroud AON2G Maintained 1NO AON2G10➀ M3.5 Terminal Screw 6 23 40 Panel Thickness 0.8 to 4 20.5 64 (1 or 2 blocks) 87 (3 or 4 blocks) 1NC AON2G01➀ 1NO-1NC AON2G11➀ 2NO AON2G20➀ 2NC AON2G02➀ 2NO-2NC AON2G22➀ Extended with Full Shroud ABN2F Momentary 1NO ABN2F10➀ M3.5 Terminal Screw 6 23 40 Panel Thickness 0.8 to 7.5 46 (1 or 2 blocks) 69 (3 or 4 blocks) 17 1NC ABN2F01➀ 1NO-1NC ABN2F11➀ 2NO ABN2F20➀ 2NC ABN2F02➀ 2NO-2NC ABN2F22➀ Extended with Full Shroud AON2F Maintained 1NO AON2F10➀ M3.5 Terminal Screw 6 23 40 Panel Thickness 0.8 to 7.5 17 68 (1 or 2 blocks) 91 (3 or 4 blocks) 1NC AON2F01➀ 1NO-1NC AON2F11➀ 2NO AON2F20➀ 2NC AON2F02➀ 2NO-2NC AON2F22➀ •Round bezel and shroud (metal): Chrome-plated •Other contact arrangements and gold-plated silver contacts are also available. See page 20. (nameplate sold sepa- rately) (nameplate sold separately) (nameplate sold separately) (nameplate sold separately) (nameplate sold sepa- rately) (nameplate sold separately) (nameplate sold separately) (nameplate sold separately) (14/03/18) |
|
