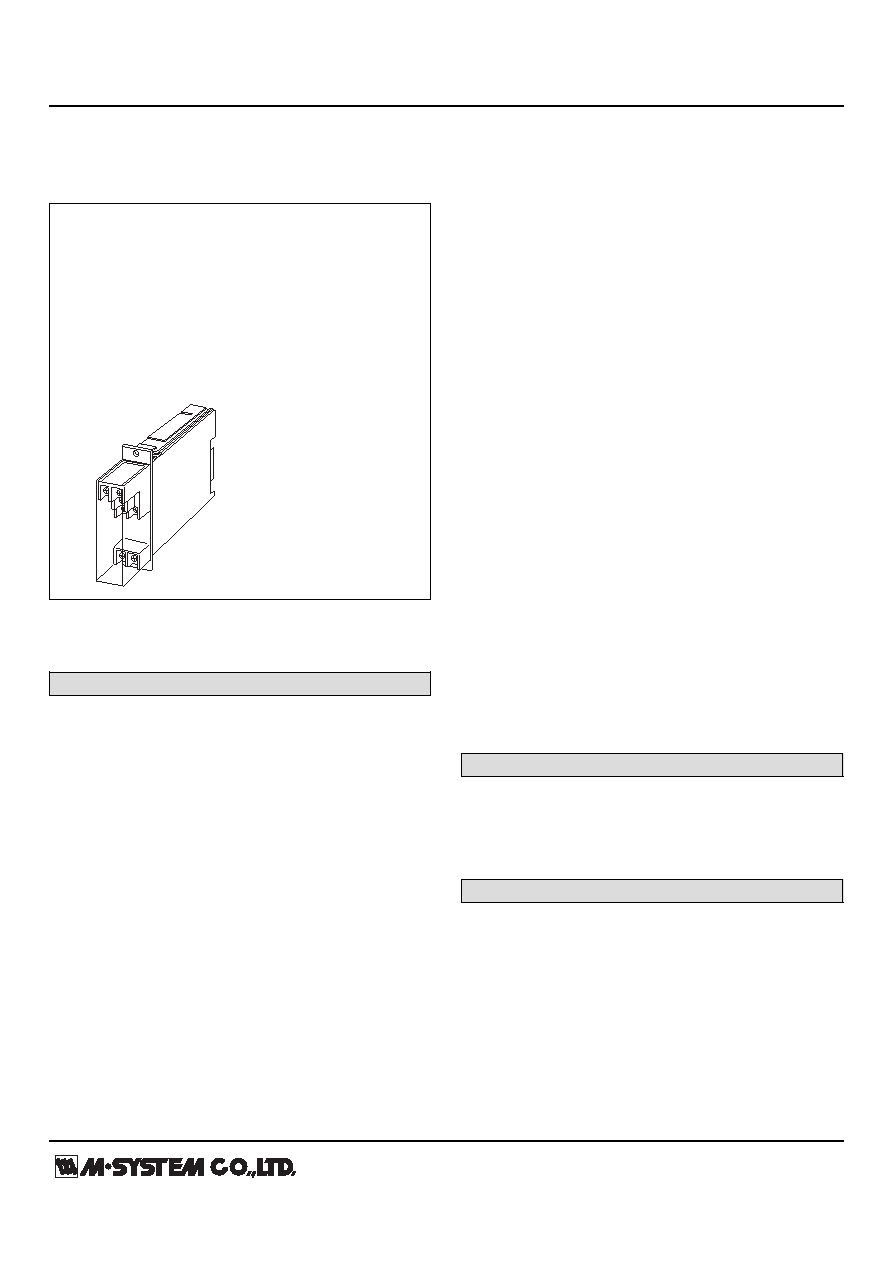

MODEL: 10YK

http://www.m-system.co.jp/

10YK SPECIFICATIONS

ES-0857 Rev.1 Page 1/3

High-density Signal Conditioners 10-RACK

OUTPUT ISOLATOR

(fast response)

Functions & Features

• Converting a DC input into two isolated standard process

signal

• Input from the Standard Rack connector can be monitored

at the front terminals

Typical Applications

• Isolation between control room and field instrumentation

MODEL: 10YK–[1][2][3]–R[4]

ORDERING INFORMATION

• Code number: 10YK-[1][2][3]-R[4]

Specify a code from below for each [1] through [4].

(e.g. 10YK-6A6-R/Q)

• Special input range (For code 0)

• Specify the specification for option code /Q

(e.g. /C01)

[1] INPUT

Current

A: 4 – 20 mA DC (Input resistance 250 Ω)

D: 0 – 20 mA DC (Input resistance 50 Ω)

G: 0 – 1 mA DC (Input resistance 1000 Ω)

H: 10 – 50 mA DC (Input resistance 100 Ω)

Voltage

1: 0 – 10 mV DC (Input resistance 10 kΩ min.)

2: 0 – 100 mV DC (Input resistance 100 kΩ min.)

3: 0 – 1 V DC (Input resistance 1 MΩ min.)

4: 0 – 10 V DC (Input resistance 1 MΩ min.)

5: 0 – 5 V DC (Input resistance 1 MΩ min.)

6: 1 – 5 V DC (Input resistance 1 MΩ min.)

0: Specify voltage (See INPUT SPECIFICATIONS)

[2] OUTPUT 1

Current

A: 4 – 20 mA DC (Load resistance 600 Ω max.)

B: 2 – 10 mA DC (Load resistance 1200 Ω max.)

C: 1 – 5 mA DC (Load resistance 2400 Ω max.)

D: 0 – 20 mA DC (Load resistance 600 Ω max.)

E: 0 – 16 mA DC (Load resistance 750 Ω max.)

F: 0 – 10 mA DC (Load resistance 1200 Ω max.)

G: 0 – 1 mA DC (Load resistance 12 kΩ max.)

Voltage

1: 0 – 10 mV DC (Load resistance 10 kΩ min.)

2: 0 – 100 mV DC (Load resistance 100 kΩ min.)

3: 0 – 1 V DC (Load resistance 100 Ω min.)

4: 0 – 10 V DC (Load resistance 1000 Ω min.)

5: 0 – 5 V DC (Load resistance 500 Ω min.)

6: 1 – 5 V DC (Load resistance 500 Ω min.)

[3] OUTPUT 2

0: None

Voltage

6: 1 – 5 V DC (Load resistance 5000 Ω min.)

POWER INPUT

DC Power

R: 24 V DC

(Operational voltage range 24 V ±10 %, ripple 10 %p-p max.)

[4] OPTIONS

blank: none

/Q: With options (specify the specification)

SPECIFICATIONS OF OPTION: Q

COATING (For the detail, refer to M-System's web site.)

/C01: Silicone coating

/C02: Polyurethane coating

/C03: Rubber coating

GENERAL SPECIFICATIONS

Construction: Rack-mounted; terminal access via screw

terminals at the front and via card-edge connector at the

rear; terminal cover provided

Connection

Input: Card-edge connector

Output, input monitor: M3.5 screw terminals (torque 0.8

N·m)

Power input: Supplied from card-edge connector

Screw terminal: Nickel-plated steel

Housing material: Flame-resistant resin (black)

Isolation: Input to output 1 to output 2 to power

Overrange output: Approx. -10 to +120 % at 1 – 5 V
