MODEL: M2XV2

M2XV2 SPECIFICATIONS

ES-5081 Rev.9 Page 4/4

http://www.m-system.co.jp/

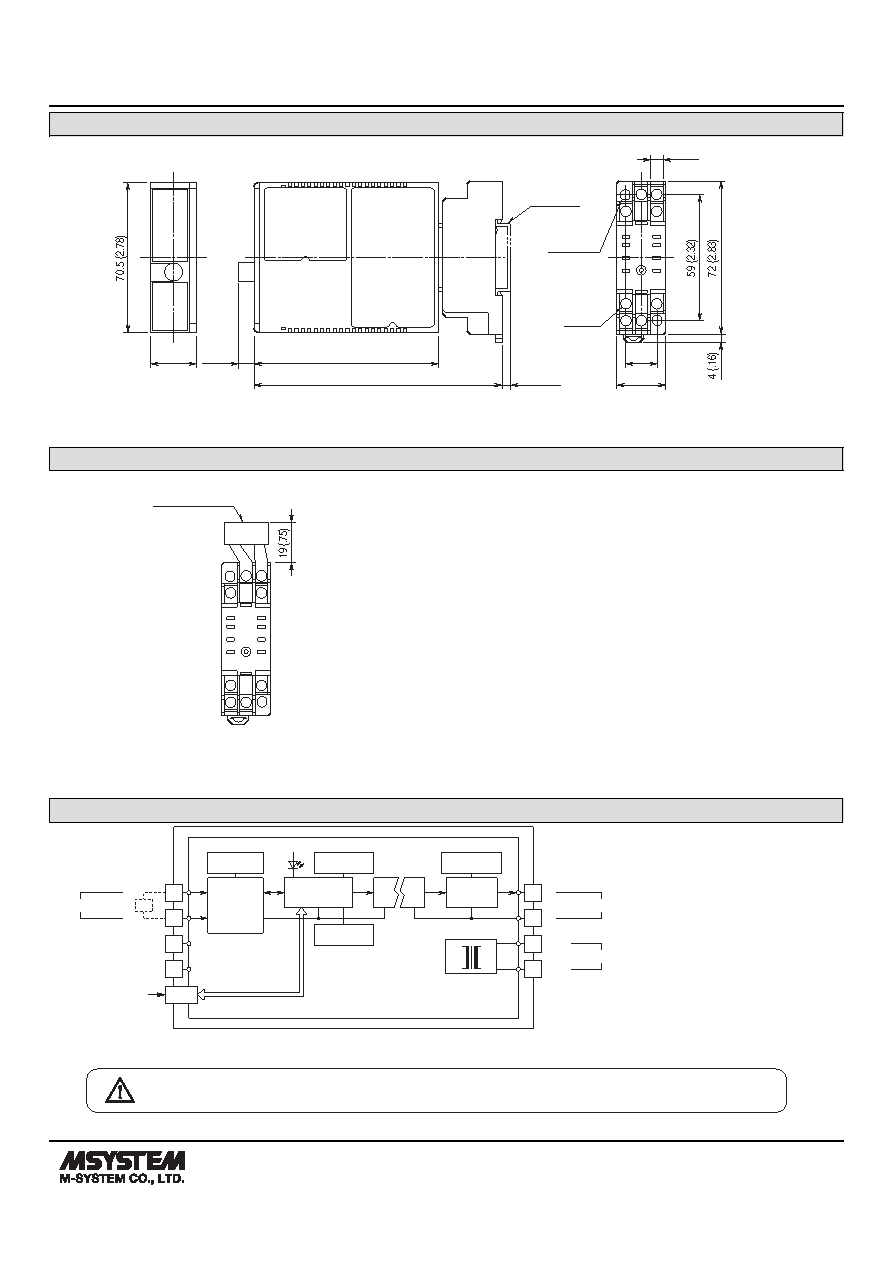

EXTERNAL DIMENSIONS unit: mm (inch)

21.5 (.85)

86.7 (3.41)

7.3 (.29)

15 (.59)

6 (.23)

DIN RAIL

35mm wide

[4 (.16)]

8–M3

SCREW

23 (.91)

2–4.2x5

(.17x.20)

MTG HOLE

6 (.24) deep

116.7 (4.59)

• When mounting, no extra space is needed between units.

14 13

TERMINAL ASSIGNMENTS unit: mm (inch)

14 13

INPUT RESISTOR

(model: REM2)

Input shunt resistor attached

for current input.

SCHEMATIC CIRCUITRY & CONNECTION DIAGRAM

–

Isolation

Base Socket

*Input shunt resistor attached for current input.

INPUT

Low Drift

Amplifier

Output

Driver

OUTPUT

Digital

Computation

ZERO/SPAN

SELECTOR

INPUT RANGE

SELECTOR

OUTPUT RANGE

SELECTORS

UP/DOWN

SWITCHES

CONFIGURATOR

JACK

U(+)

V(–)

POWER

STATUS
