MODEL: M80BS-8

M80BS-8 SPECIFICATIONS

ES-5398 Rev.2 Page 3/3

http://www.m-system.co.jp/

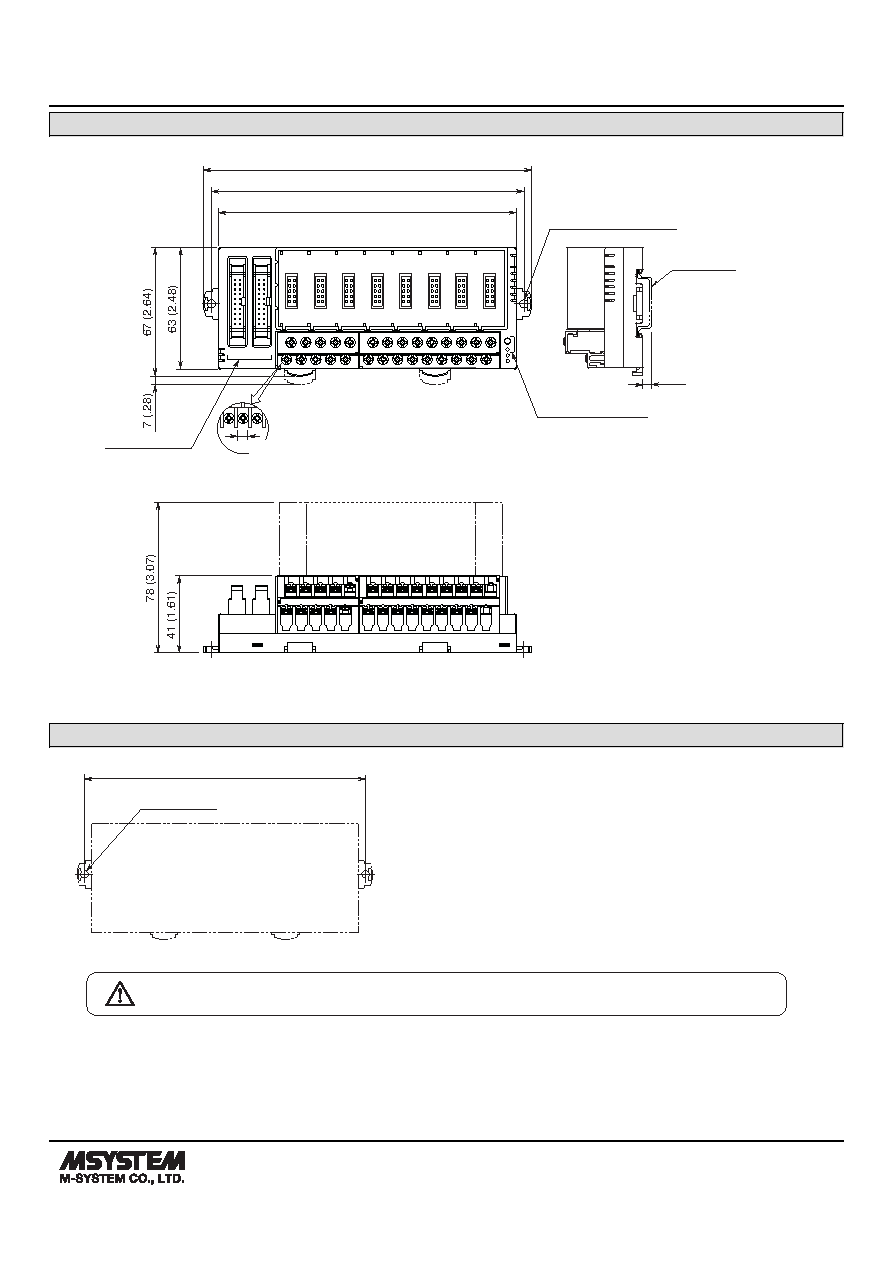

EXTERNAL DIMENSIONS & TERMINAL ASSIGNMENTS unit: mm (inch)

154 (6.06)

170 (6.69)

161.6 (6.36)

CH1

CH2

CH3

CH4

CH5

CH6

CH7

CN1

CN2

CH8

FG NC 1B

2A

2C

+

-

1A

1C

2B

3B

4A

4C

5B

6A

3A

3C

4B

5A

5C

6C

7B

8A

8C

6B

7A

7C

8B

I/O Connectors *

28-M3 I/O TERMINAL SCREWS

6.1(.24)

1

2

1

2

19

20

19

20

Power indicator LED

5 (.2)

2 - 4.3 dia. 4 deep

(2 - 1.17 dia. 0.16 deep)

DIN RAIL

35mm wide

MOUNTING REQUIREMENTS unit: mm (inch)

2-M4 SCREW

161.6 (6.36)

Specifications are subject to change without notice.
