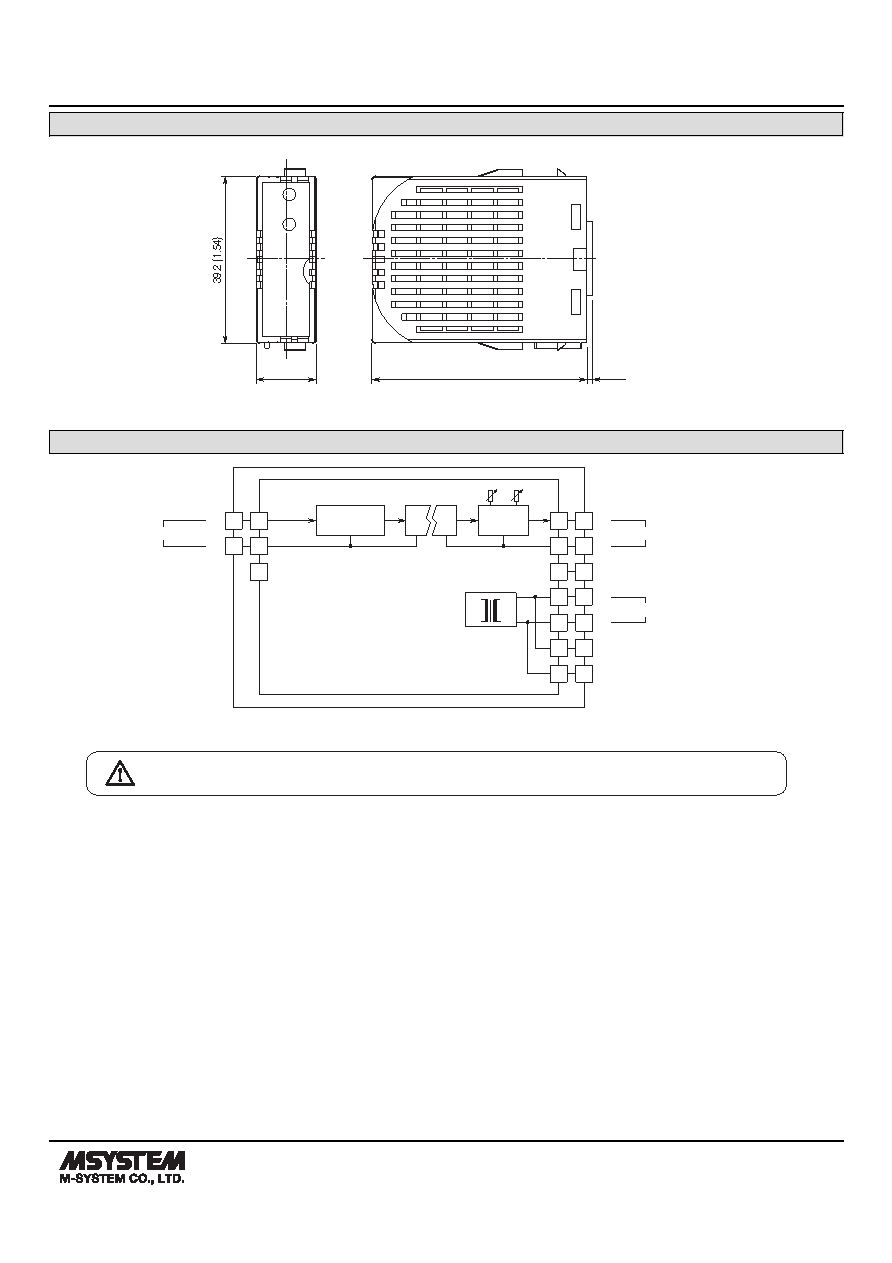

MODEL: M80YS
M80YS SPECIFICATIONS
ES-5397 Rev.0 Page 2/2
http://www.m-system.co.jp/
EXTERNAL DIMENSIONS unit: mm (inch)
14.0 (.55)
50.5 (1.99)
1.3 (.05)
SCHEMATIC CIRCUITRY & CONNECTION DIAGRAM
S
Z
Low Drift
Amplifier
2
9
10
6
8
3
4
INPUT
+
–
Isolation
Output
Driver
1
OUTPUT
+
–
POWER
5
7
+
–
Note: Use shielded cables for I/O wiring.
Installation Base
A
B
C
 
 
 
 
 
 
Specifications are subject to change without notice.
