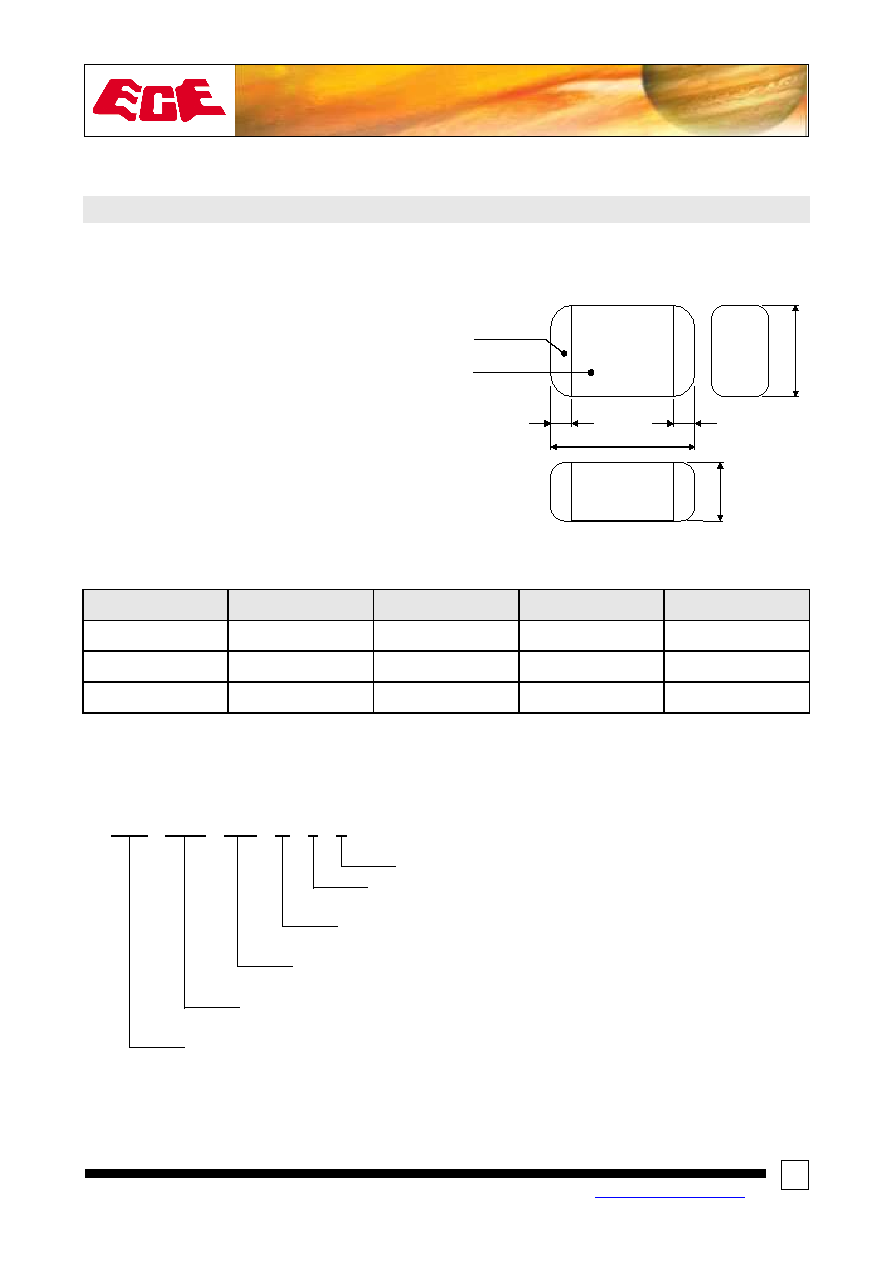

1

For the latest product information, Please visit our website at http://www.ece.com.tw

ECE－

－

The Name You Can Trust!

HIGH FREQUENCY MULTILAYER CHIP INDUCTORS

EFH SERIES

■ FEATURES

■

DIMENSIONS

The EFH series is designed for high

frequency application up to GHz band

circuit due to low inductance.

High SRF exhibits high Q value at high

frequency.

Monolithic inorganic material construction

for high reliability.

Excellent for high frequency RF

applications such as cellular phones,

pagers, PDAs, computer communications,

etc..

UNIT: mm

Type

A

B

C

D

EFH1005(0402)

1.0±0.10

0.50±0.10

0.5±0.10

0.1~0.3

EFH1608(0603)

1.6±0.15

0.80±0.15

0.8±0.15

0.2~0.6

EFH2012(0805)

2.0±0.20

1.25±0.20

※

0.2~0.8

See attach "product's thickness" dimensions.

※

■ PART NUMBERING SYSTEM

EFH

1608

47N

M

1

Z

Z: RoHS Compliant

Packing:

1: Tape and 7" Reel

Tolerance:

S=±0.3nH, J=±5%, K=±10%

Inductance:

47N: 47nH

Dimensions:

Length(mm) x Width(mm)

Product Name:

High Frequency Multilayer Chip Inductors

Terminal

electrode

Ceramic

B

C

D

A
