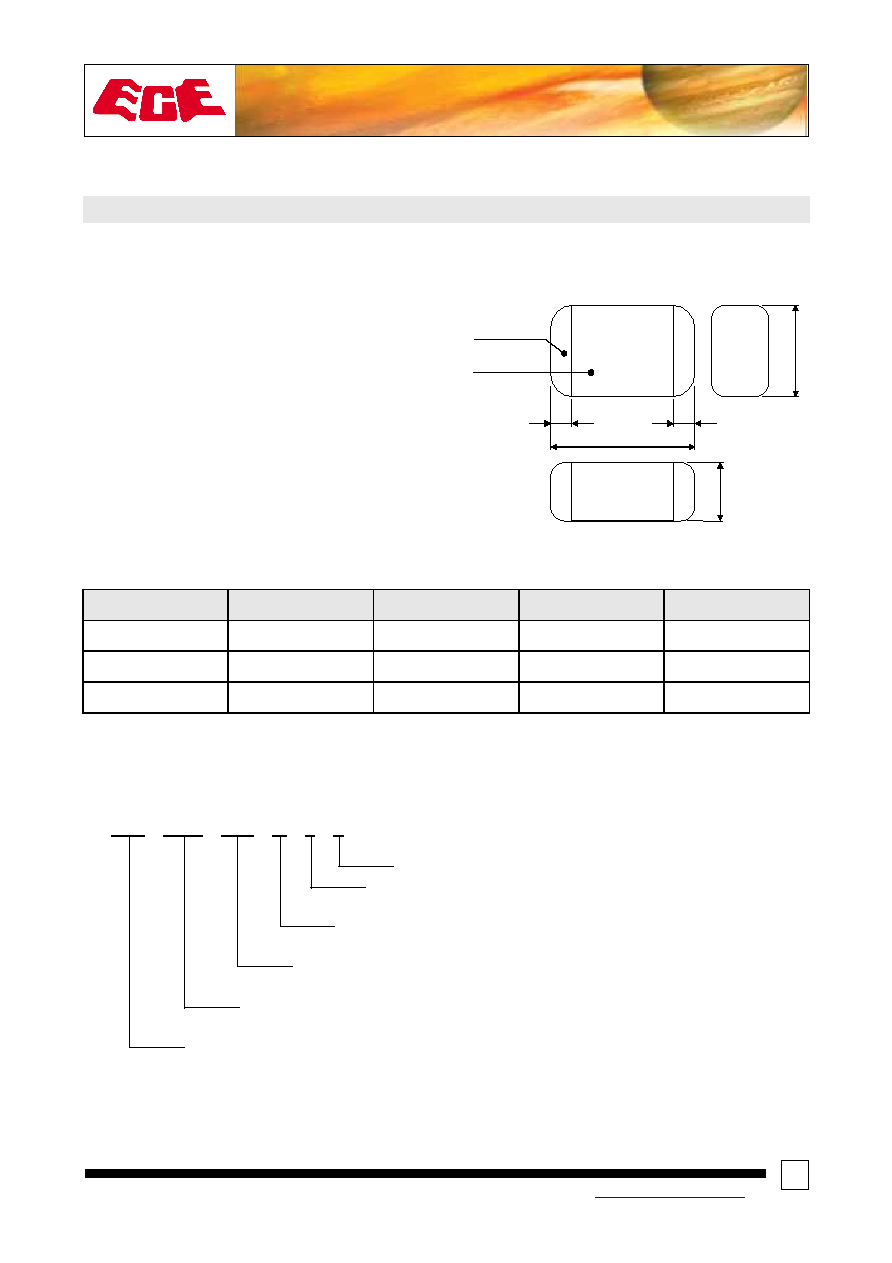

1

For the latest product information, Please visit our website at http://www.ece.com.tw

ECE－

－

The Name You Can Trust!

MULTILAYER CHIP INDUCTORS

EFL SERIES

■ FEATURES

■

DIMENSIONS

Most compact size available without

direction and easy for mounting.

Excellent solderability and high heat

resistance for either flow or reflow

soldering.

Closed magnetic circuit avoids crosstalk

and is suitable for high density PCB.

Monolithic material construction for high

reliability.

UNIT: mm

Type

A

B

C

D

EFL1608(0603)

1.6±0.15

0.80±0.15

0.8±0.15

0.1~0.5

EFL2012(0805)

2.0±0.20

1.25±0.20

※

0.2~0.8

EFL3216(1206)

3.2±0.20

1.60±0.20

※

0.4~1.0

See attach "product's thickness" dimensions.

※

■ PART NUMBERING SYSTEM

EFL

2012

47N

M

1

Z

Z: RoHS Compliant

Packing:

1: Tape and 7" Reel

Tolerance:

K=±10%, M=±20%

Inductance:

47N: 0.047µH

Dimensions:

Length(mm) x Width(mm)

Product Name:

Multilayer Chip Inductors

Terminal

electrode

Ferrite

B

C

D

A
