MODEL: W5PA

W5PA SPECIFICATIONS

ES-8533 Rev.7 Page 3/3

http://www.m-system.co.jp/

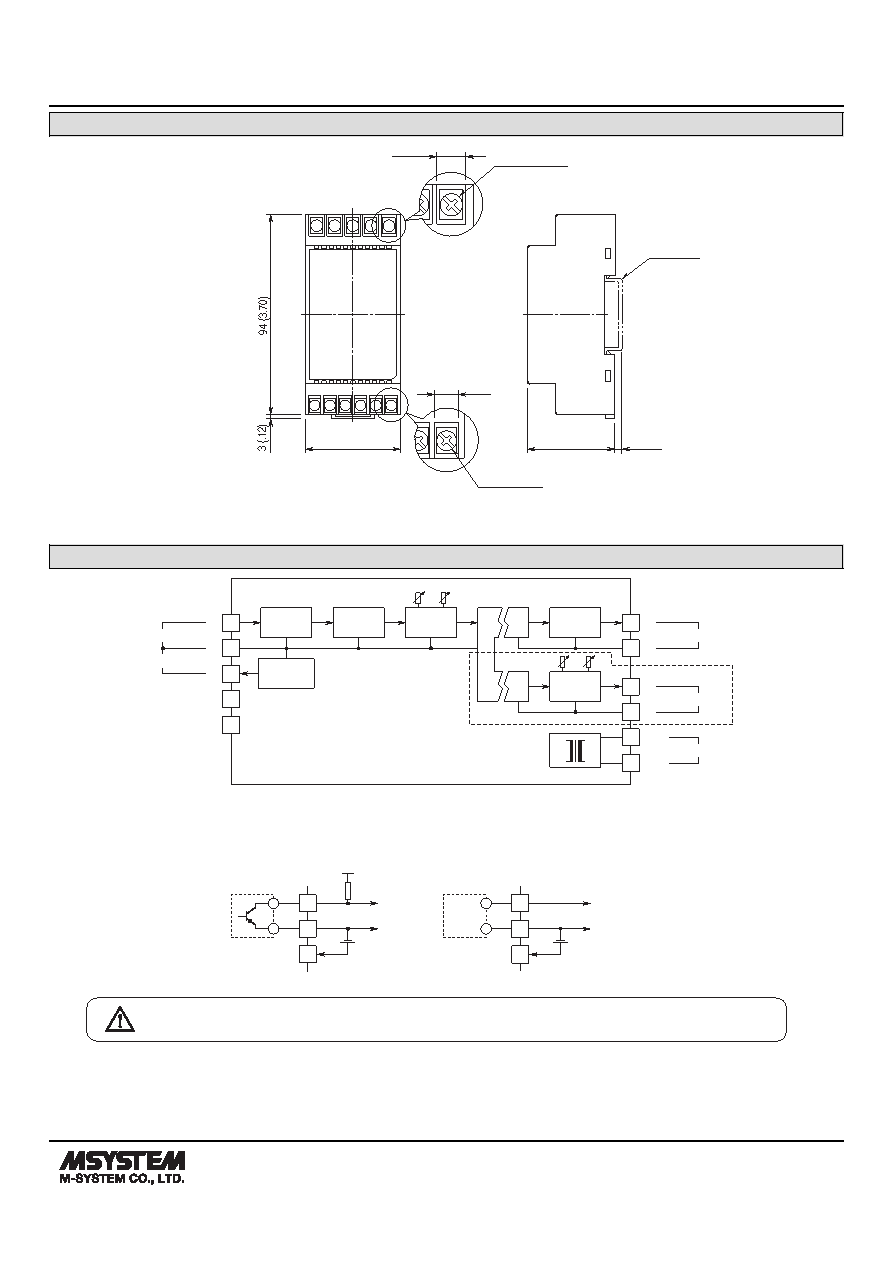

EXTERNAL DIMENSIONS & TERMINAL ASSIGNMENTS unit: mm (inch)

5

4

3

2

1

11

10

9

8

7

6

45 (1.77)

41 (1.61)

[3.3 (.13)]

• When mounting, no extra space is needed between units.

DIN RAIL

35mm wide

5–M3.5 SCREW

7.4 (.29)

6–M3 SCREW

6 (.24)

SCHEMATIC CIRCUITRY & CONNECTION DIAGRAM

S

Z

Voltage

Amplifier

Digital

Computation

Waveform

Shaper

4

5

3

1

2

+

–

4

5

+

2.5kΩ

3

■ Open Collector or Mechanical Contact

Input Connection Examples

■ Voltage Pulse

–

+5V

4

5

+

–

U(+)

V(–)

POWER

10

11

+

–

OUTPUT 1

+

–

Isolation

Output

Driver

S

Z

Output

Driver

OUTPUT 2

6

7

8

9

Note 1: The section enclosed by broken line is only with 2nd output option.

Note 2: DO NOT connect to the terminals 1 and 2.

Excitation

Supply

+

SENSOR EXCITATION

INPUT

Vsns

3

Vsns
