MODEL: JC-CU
JC-CU SPECIFICATIONS
ES-9042 Rev.2 Page 3/9
https://www.m-system.co.jp/

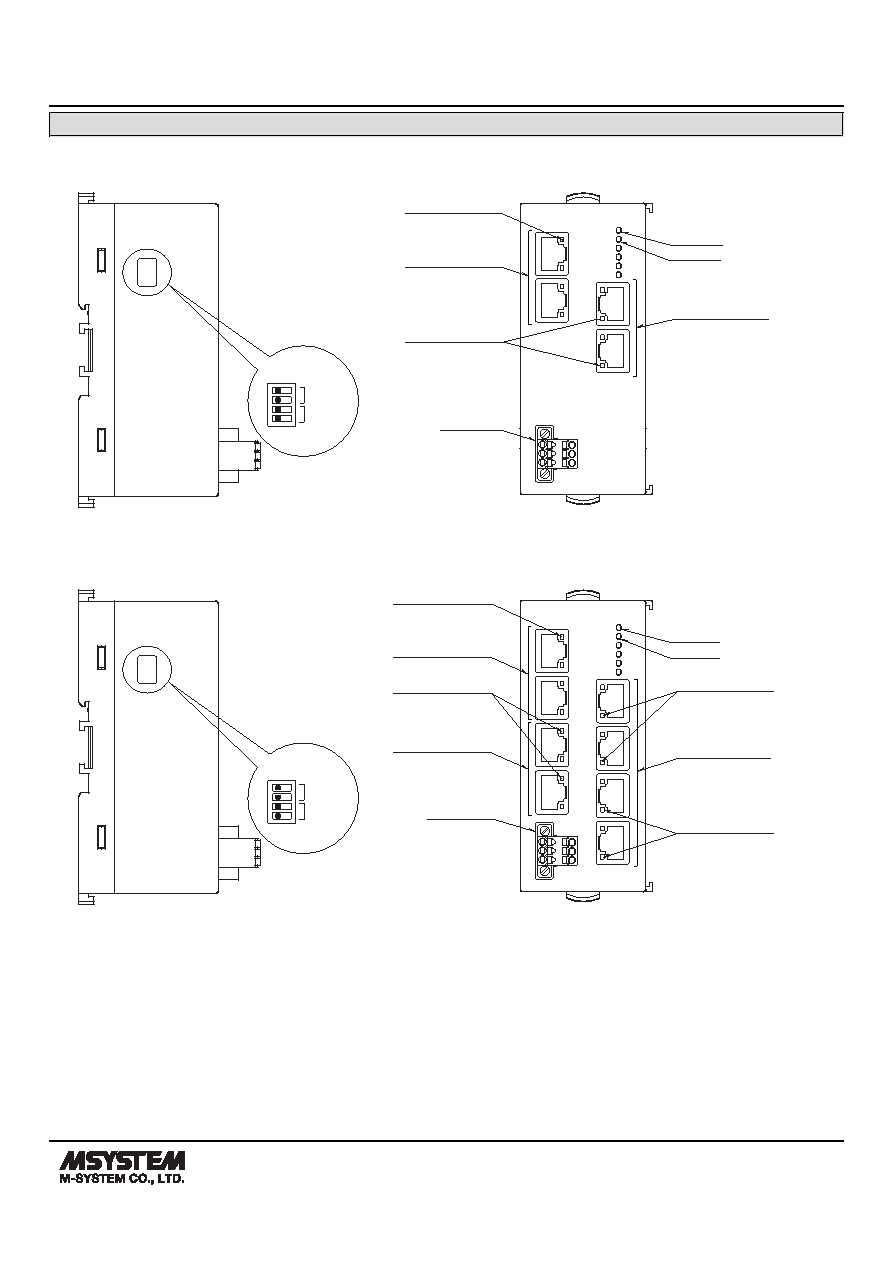

EXTERNAL VIEW
■ I/O TYPE : 3
3port
• SIDE VIEW
SW1
ON ➞
SW1
1
2
3
4
Operating Mode Setting
DIP SW(SW1)
Terminating
Resistor
Transfer Rate
ON ➞
• FRONT VIEW
PWR+
PWR-
FE
LNK1
LNK2
CU1
CU2
CU0A
CU0B
LNK0
PWR
ERR
ERR LED
RJ-45 Modular Jack
for Trunk
Status Indicator LED
RJ-45 Modular Jack
for Feeder
Status Indicator LED
Power Supply
Connector
PWR LED
■ I/O TYPE : 7
7port
PWR+
PWR-
FE
LNK4
LNK1
LNK2
LNK3
CU1
CU2
CU3
CU4
CU0A
CU0B
CU5
CU6
LNK0
LNK5
LNK6
Status Indicator LED
RJ-45 Modular Jack
for Trunk
Status Indicator LED
RJ-45 Modular Jack
for Feeder
Power Supply
Connector
RJ-45 Modular Jack
for Feeder
Status Indicator LED
Status Indicator LED
PWR
ERR
ERR LED
PWR LED
• SIDE VIEW
SW1
ON ➞
SW1
1
2
3
4
Operating Mode Setting
DIP SW(SW1)
Terminating
Resistor
Transfer Rate
ON ➞
• FRONT VIEW
