TSV7721 Datasheet(PDF) 13 Page - STMicroelectronics

Part # TSV7721
Description  High bandwidth (22 MHz) low offset (200 μV) 5 V op amp
PDF  40 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  STMICROELECTRONICS [STMicroelectronics]
Direct Link  http://www.st.com
Logo STMICROELECTRONICS - STMicroelectronics

TSV7721 Datasheet(HTML) 13 Page - STMicroelectronics

Back Button TSV7721 Datasheet HTML 9Page - STMicroelectronics TSV7721 Datasheet HTML 10Page - STMicroelectronics TSV7721 Datasheet HTML 11Page - STMicroelectronics TSV7721 Datasheet HTML 12Page - STMicroelectronics TSV7721 Datasheet HTML 13Page - STMicroelectronics TSV7721 Datasheet HTML 14Page - STMicroelectronics TSV7721 Datasheet HTML 15Page - STMicroelectronics TSV7721 Datasheet HTML 16Page - STMicroelectronics TSV7721 Datasheet HTML 17Page - STMicroelectronics Next Button
Zoom Inzoom in Zoom Outzoom out
 13 / 40 page
background image

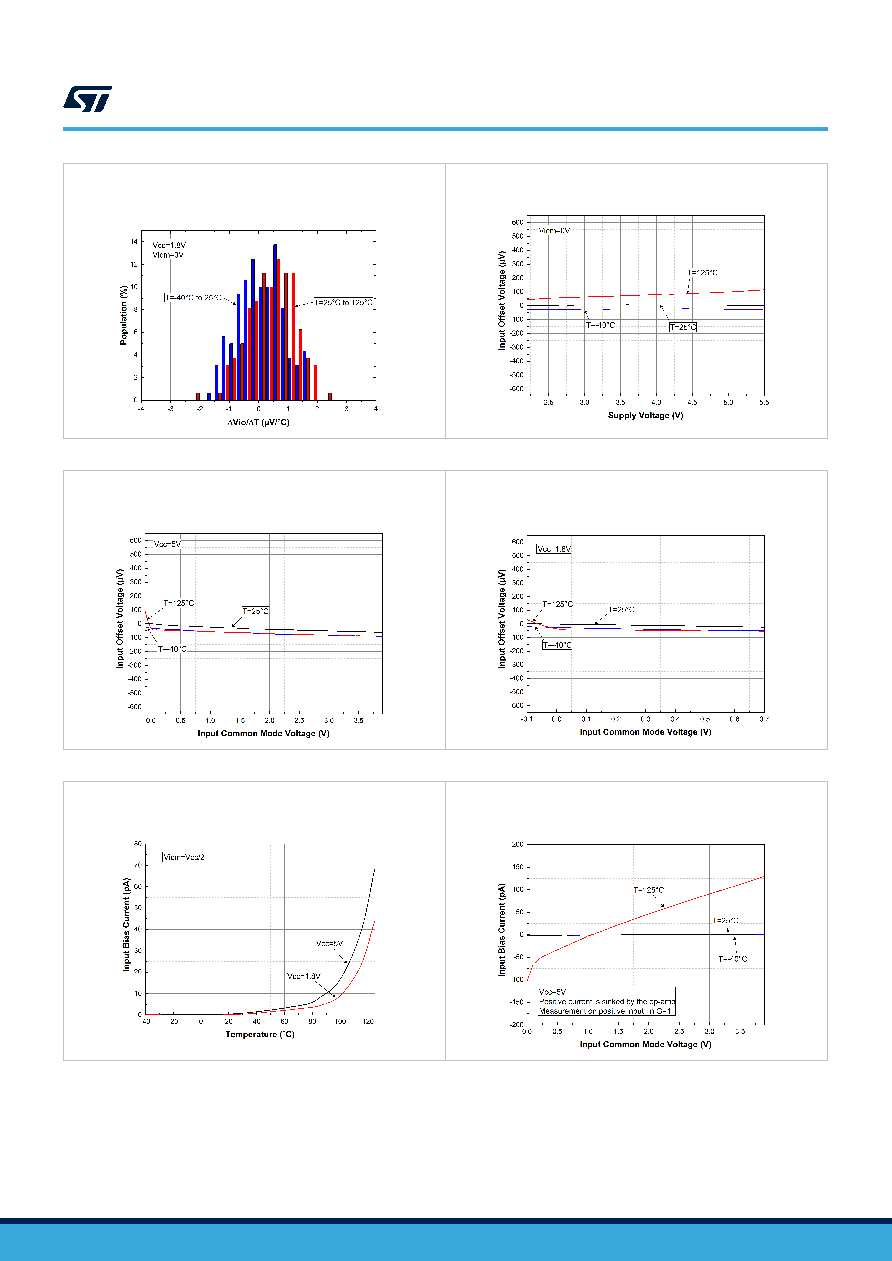

Figure 10. Input offset voltage thermal coefficient at
VCC=1.8 V
Figure 11. Input offset voltage vs. supply voltage
Figure 12. Input offset voltage vs. common-mode voltage
at VCC = 5 V
Figure 13. Input offset voltage vs. common-mode voltage
at VCC = 1.8 V
Figure 14. Input bias current vs. temp. at VICM = VCC / 2
Figure 15. Input bias current vs. common-mode voltage at
VCC = 5 V
TSV7721, TSV7722, TSV7723
Typical performance characteristics
DS13614 - Rev 3
page 13/40
