MODEL: LPD

http://www.m-system.co.jp/

LPD SPECIFICATIONS

ES-1989 Rev.6 Page 3/3

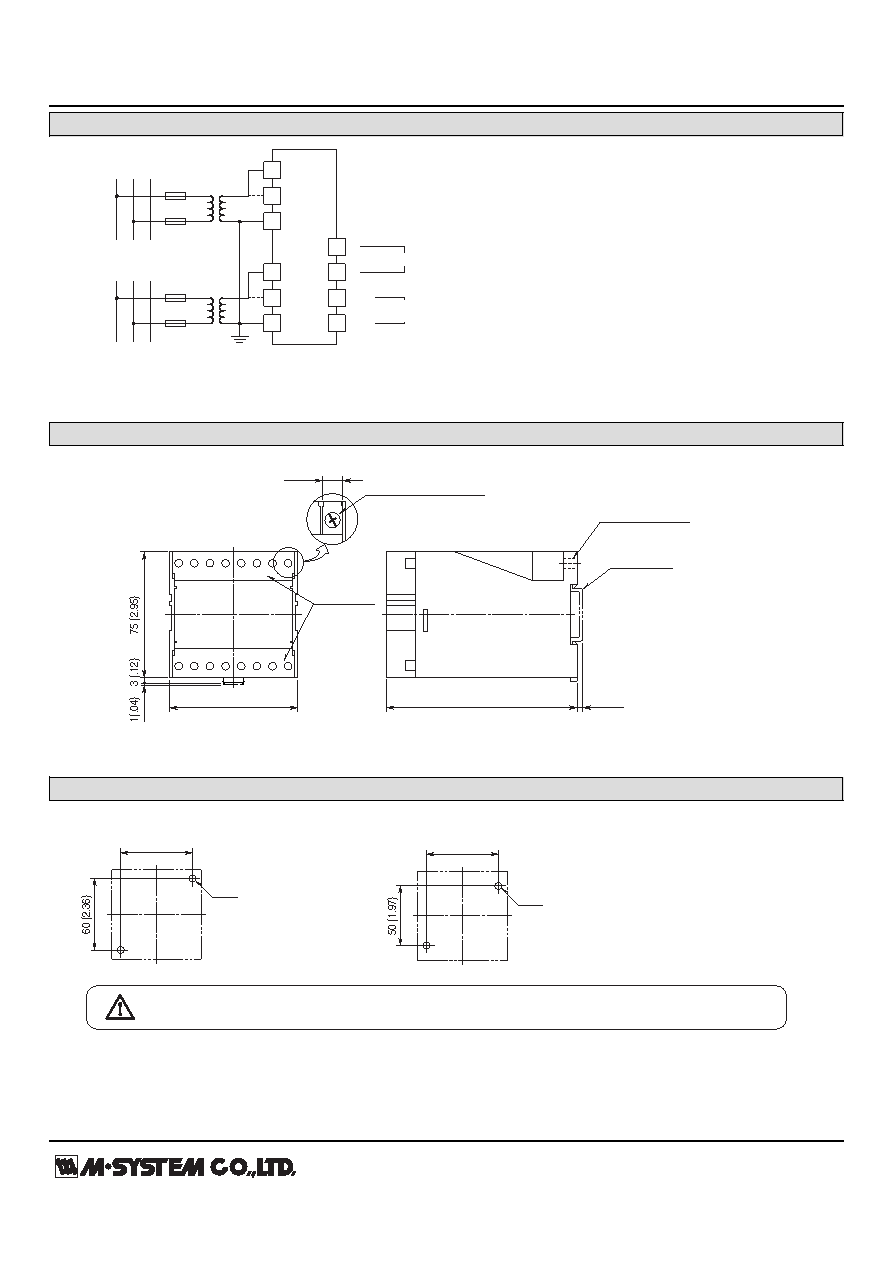

CONNECTION DIAGRAM

+

–

OUTPUT

11

U(+)

V(–)

9

10

12

V

U

v

u

FUSE

VT

3

5

6

For measuring line voltages, use the terminals 1 and 4.

For measuring phase voltages, use the terminals 2 and 5.

4 A2

REFERENCE INPUT

1

2

B2

C2

V

U

v

u

FUSE

VT

3

2

3

1 A1

MEASURED INPUT

1

2

B1

C1

AUXILIARY

POWER

EXTERNAL DIMENSIONS & TERMINAL ASSIGNMENTS unit: mm (inch)

112 (4.41)

[3.3 (.13)]

DIN RAIL

35mm wide

8 (.31)

M3.5 SCREW

(Only on the used terminals)

75 (2.95)

TERMINAL

COVER

2–5.8 (.23) dia. or

2–4.8 (.18) dia.

MTG HOLE

8 (.31) deep

•When mounting, no extra space is needed between units.

9 10 11 12 13 14 15 16

1 2

3

4

5

6

7 8

MOUNTING REQUIREMENTS unit: mm (inch)

2–M5

60 (2.36)

■ M5 SCREWS

2–M4

60 (2.36)

■ M4 SCREWS

Specifications are subject to change without notice.
