MODEL: M7EASDY

M7EASDY SPECIFICATIONS

ES-7763 Rev.12 Page 4/5

https://www.m-system.co.jp/

STANDARDS & APPROVALS

EU conformity:

EMC Directive

EMI EN 61000-6-4

EMS EN 61000-6-2

Low Voltage Directive

EN 61010-1

Measurement Category II (output)

Installation Category II (power)

Pollution Degree 2

Input or output to power: Reinforced insulation (300 V)

Input to output: Basic insulation (300 V)

(When 150 V AC max. load voltage or measurement

category I, applicable as reinforced insulation)

RoHS Directive

EXTERNAL VIEW

Refer to the instruction manual for the setting procedure.

LCD Display

Mode Button

Set Button

PC Configurator

Jack

Up Button

Down Button

Up

Down

Mode

Set

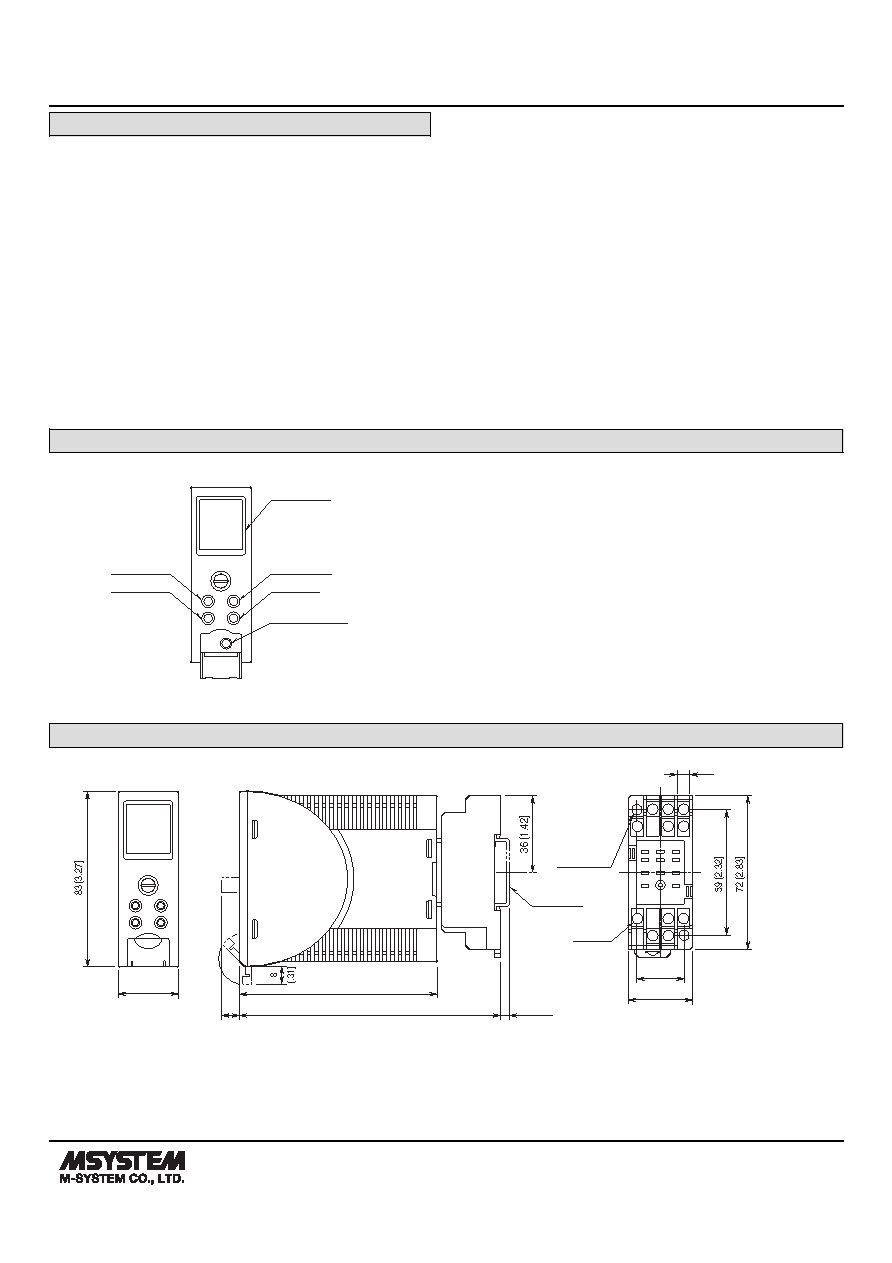

EXTERNAL DIMENSIONS & TERMINAL ASSIGNMENTS unit: mm [inch]

29 [1.14]

94 [3.70]

8

[.31]

124 [4.88]

22 [.87]

6 [.23]

11–M3

SCREW

29.5 [1.16]

2–4.2x5

[.17x.20]

MTG HOLE

6 [.24] deep

DIN RAIL

35mm wide

(4 [.16])

• When mounting, no extra space is needed between units.

4

8 7

10

11

5

6

1

2

3

9
