Triangulation sensor with background suppression

OBT650-R200-2EP-IO

3

To unlock the adjustment functions, rotate the sensing range/sensitivity adjuster by more than 180°.

Sensing Range/Sensitivity

To increase the sensing range/sensitivity, rotate the sensing range/sensitivity adjuster clockwise.

To reduce the sensing range/sensitivity, rotate the sensing range/sensitivity adjuster counter-clockwise.

Mass

approx. 74 g

Cable length

2 m

Approvals and certificates

UL approval

E87056 , cULus Listed , class 2 power supply , type rating 1

CCC approval

CCC approval / marking not required for products rated ≤36 V

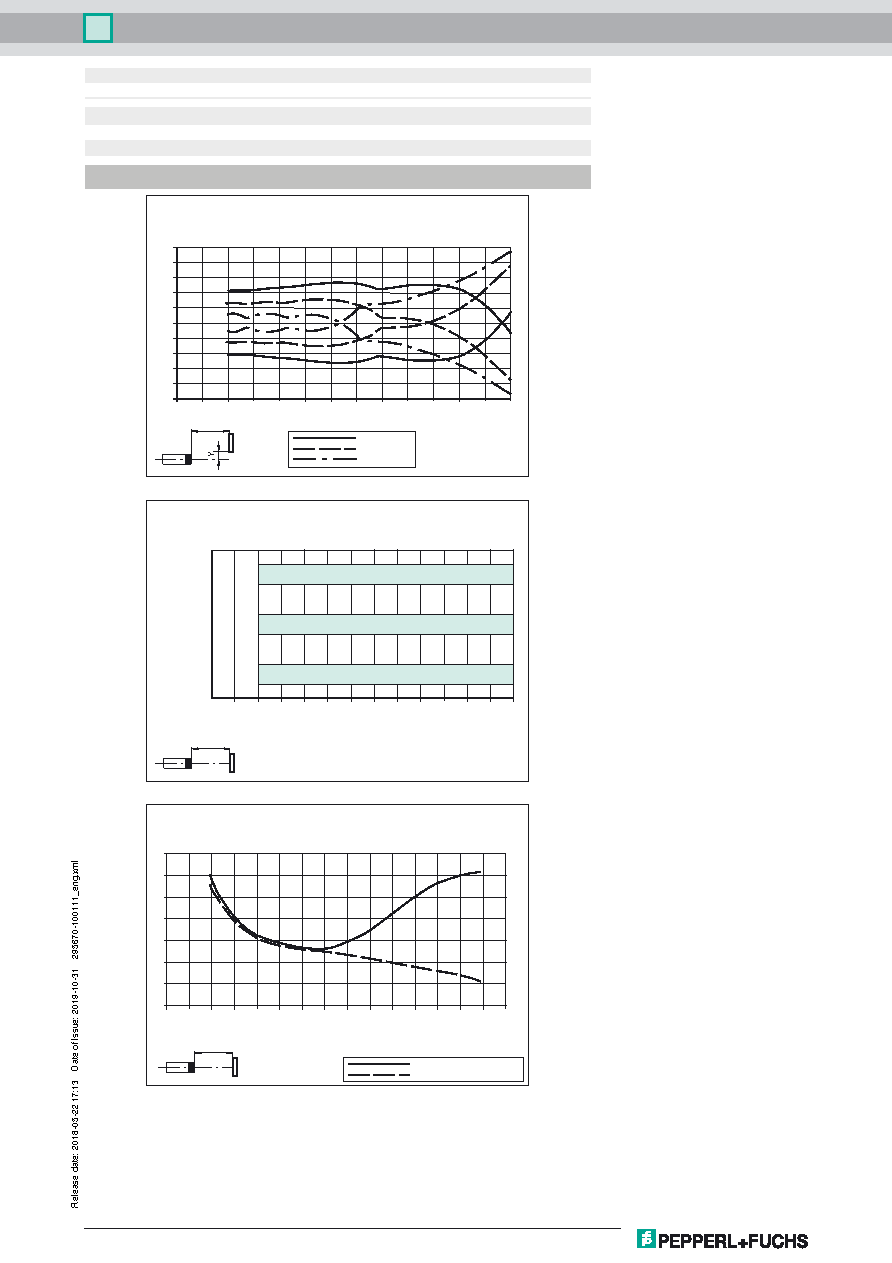

Curves/Diagrams

X

Distance X [mm]

Offset Y [mm]

Characteristic response curve

white 90 %

grey 18 %

black 6 %

0

50

100

150

200

250

300 350

400

450

500

550 600

650

10

8

6

4

2

0

-2

-4

-6

-8

-10

white

grey

black

Detection range [mm]

Object colour

Detection ranges

0

50

100 150

200 250 300 350

400 450 500 550 600

650

X

90%

18%

6%

X

Adjusted detection distance X [mm]

Deviation of measured detection distance X [%]

Difference in detection distance

black / white

grey / white

7

6

5

4

3

2

1

0

0

50 100 150 200 250 300 350 400 450 500 550 600 650 700 750
