MODEL: R8-NC3

R8-NC3 SPECIFICATIONS

ES-9726 Rev.5 Page 3/5

http://www.m-system.co.jp/

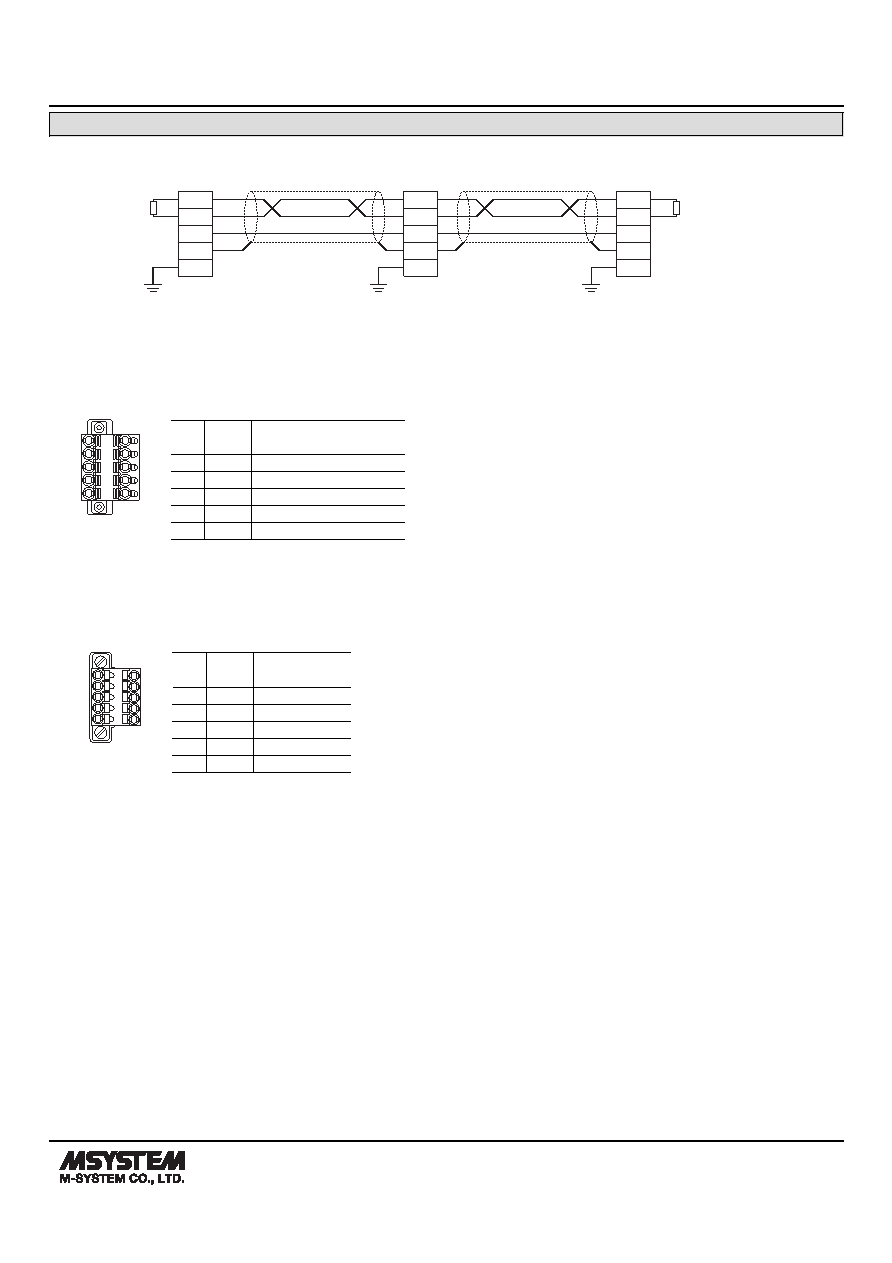

CONNECTION DIAGRAMS

DA

DB

DG

SLD

FG

MASTER UNIT

DA

DB

DG

SLD

FE

R8-NC3

DA

DB

DG

SLD

FE

R8-NC3

TERMINATOR

blue

white

yellow

*1. Turn on the terminator DIP switch to activate the internal terminating resistor.

*1

■ MASTER CONNECTION

■ POWER SUPPLY, EXCITATION SUPPLY CONNECTOR TERMINAL ASSIGNMENT

Printed-circuit board connector (Phoenix Contact)

Unit side connector:

MSTBV2,5/5-GF-5,08AU

Cable side connector: TFKC2,5/5-STF-5,08AU

PIN

ID

FUNCTION

No.

1

24V

Power supply 24V DC

2

0V

Power supply 0V DC

3

+

Excitation supply 24V DC

4

−

Excitation supply 0V DC

5

FE1

Grounding

1

2

3

4

5

■ NETWORK CONNECTOR ASSIGNMENT

Printed-circuit board connector (Phoenix Contact)

MC1,5/5-GF-3,5

TFMC1,5/5-STF-3,5

PIN

ID

FUNCTION

No.

1

DA

DA

2

DG

DG

3

DB

DB

4

SLD

Shield

5

FE

1

2

3

4

5

Functional earth

Unit side connector:

Cable side connector:
