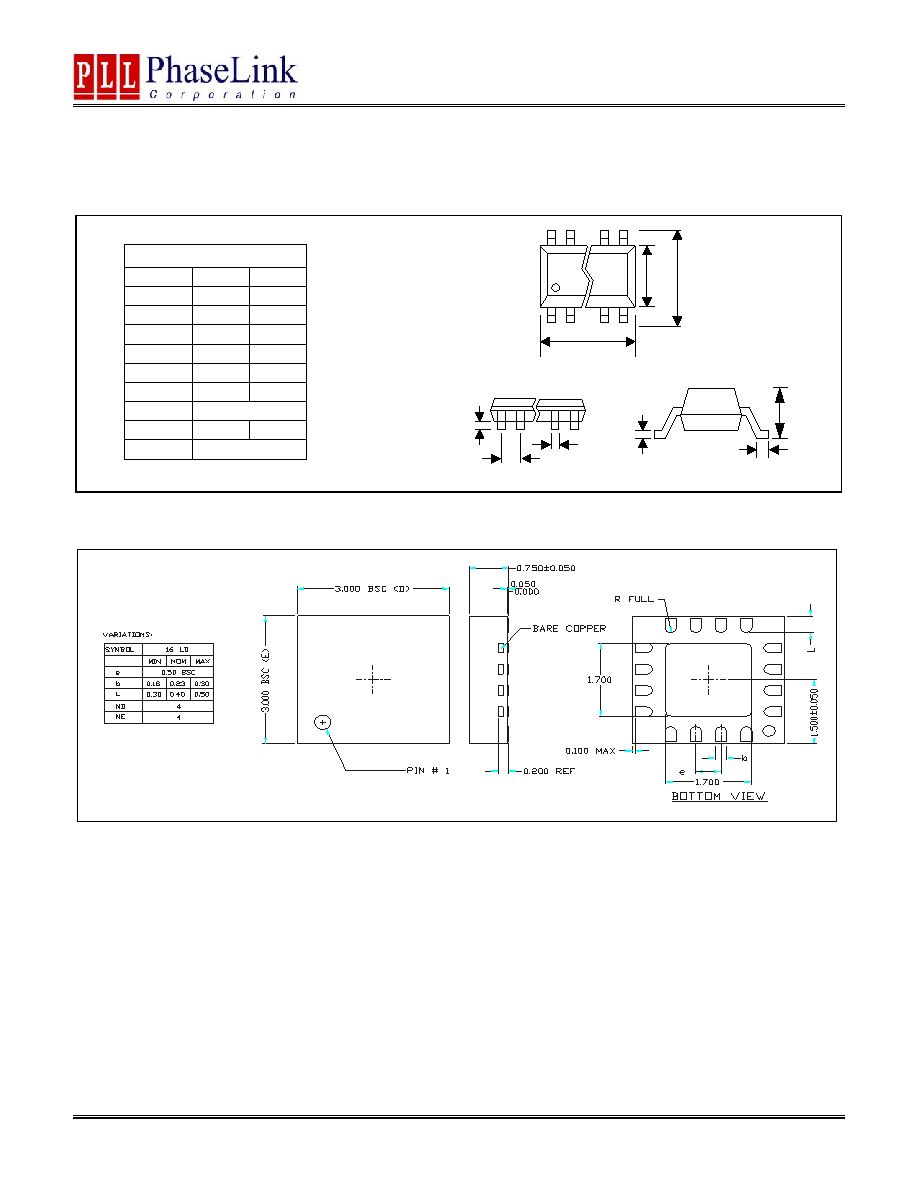

PACKAGE INFORMATION

16-PIN SSOP

C

L

A

EH

D

A1

e

B

16 PIN TSSOP ( mm )

Symbol

Min.

Max.

A

-

1.20

A1

0.05

0.15

B0.19

0.30

C0.09

0.20

D4.90

5.10

E4.30

4.50

H

6.40 BSC

L0.45

0.75

e

0.65 BSC

16-PIN 3x3 QFN
