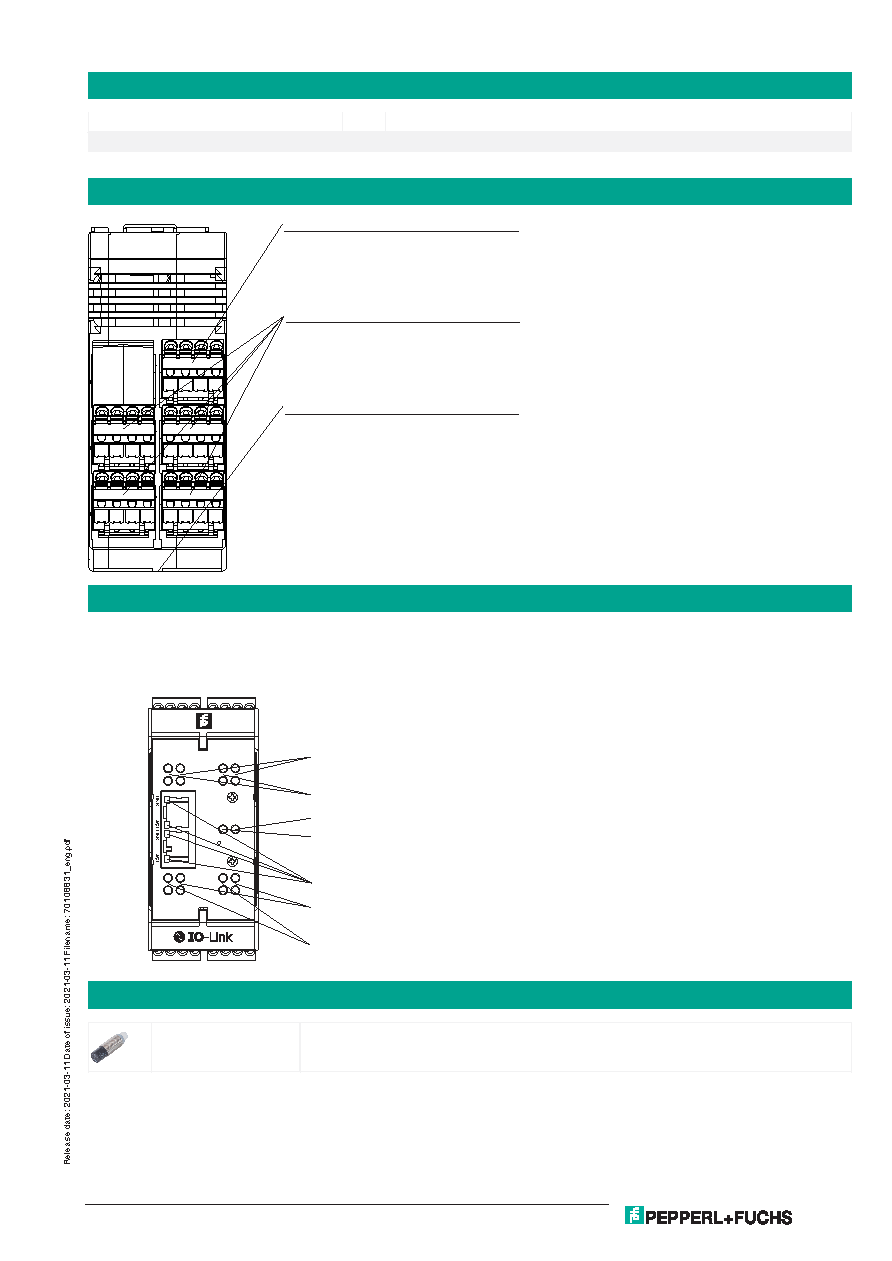

Technical Data

Construction type

Cabinet module

Mounting

DIN mounting rail

Connection

IO-Link

Voltage

Ethernet (front of module)

1 = 24 V DC power supply return

2 = 24 V DC power supply return

3 = Primary +24 V DC supply

4 = Secondary +24 V DC supply

1 = Tx+

2 = Tx-

3 = Rx+

4 = n.c.

5 = n.c.

6 = Rx-

7 = n.c.

8 = n.c.

1 = L+

2 = L-

3 = DI

4 = C/Q

Assembly

IO-Link LEDs

DI LEDs

Module status LED

Network status LED

Ethernet link and activity LEDs

IO-Link LEDs

DI LEDs

Port 1

Port 5

Port 2

Port 6

Port 3

Port 7

Port 4

Port 8

NET

MOD

Matching System Components

IQT1-18GM-IO-V1

HF read/write station with IO-Link in accordance with ISO 15693

IO-Link master (EIP/MOD)

ICE2-8IOL-K45P-RJ45

3
