PLL502-05

Low Phase Noise VCXO (12MHz to 25MHz)

47745 Fremont Blvd., Fremont, California 94538 Tel (510) 492-0990 Fax (510) 492-0991 www.phaselink.com Rev 09/17/04 Page 4

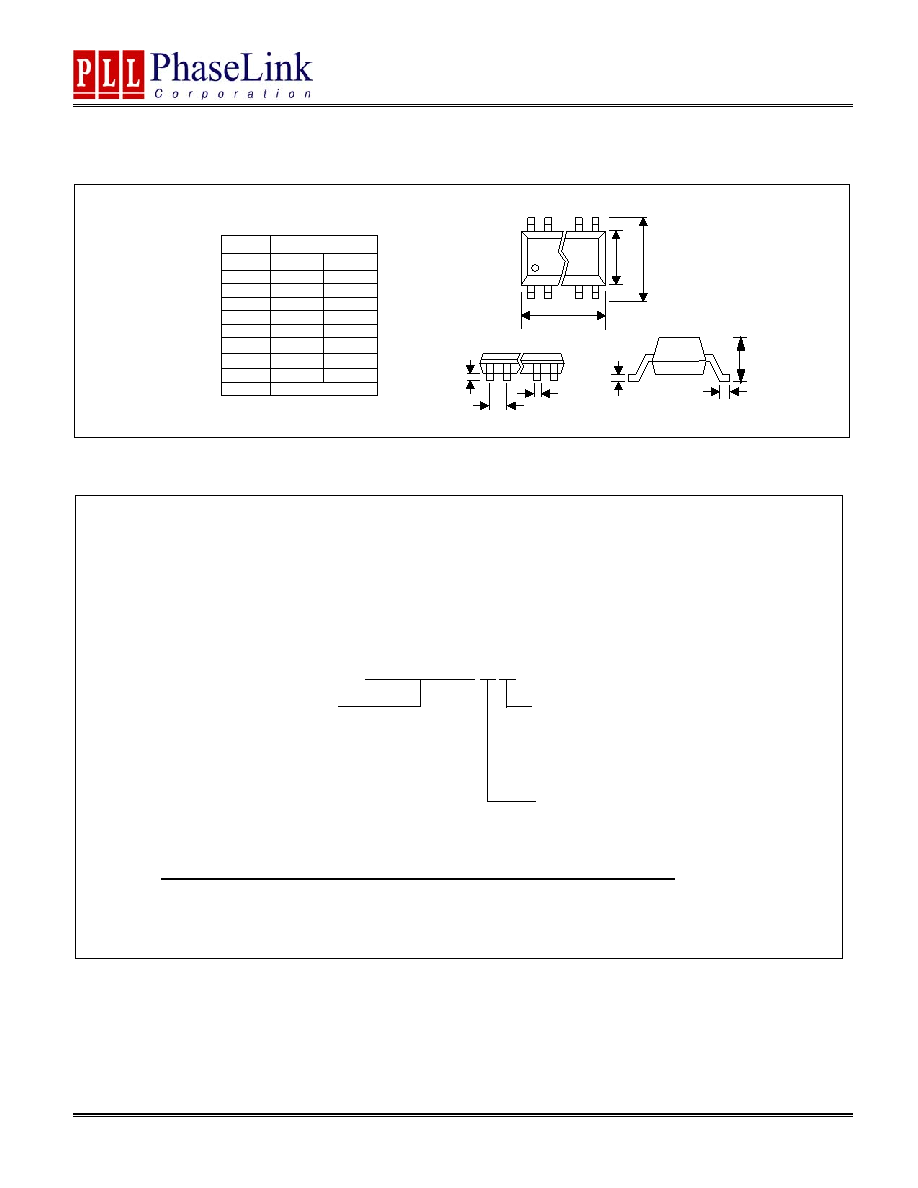

PACKAGE INFORMATION

ORDERING INFORMATION

PhaseLink Corporation, reserves the right to make changes in its products or specifications, or both at any time without notice. The information fur-

nished by Phaselink is believed to be accurate and reliable. However, PhaseLink makes no guarantee or warranty concerning the accuracy of said

information and shall not be responsible for any loss or damage of whatever nature resulting from the use of, or reliance upon this product.

LIFE SUPPORT POLICY: PhaseLink’s products are not authorized for use as critical components in life support devices or systems without the ex-

press written approval of the President of PhaseLink Corporation.

For part ordering, please contact our Sales Department:

47745 Fremont Blvd., Fremont, CA 94538, USA

Tel: (510) 492-0990 Fax: (510) 492-0991

PART NUMBER

The order number for this device is a combination of the following:

Device number, Package type and Operating temperature range

PLL502-05 x x

Temperature

C=Commercial

I=Industrial

Package

S=SOIC

Part Number

Order Number

Marking

Package Option

PLL502-05SC

P502-05SC

8-Pin SOIC (Tube)

PLL502-05SC-R

P502-05SC

8-Pin SOIC (Tape and Reel)

C

L

A

8 PIN ( dimensions in mm )

Narrow SOIC

Symbol

Min.

Max.

A

1.47

1.73

A1

0.10

0.25

B

0.33

0.51

C

0.19

0.25

D4.80

4.95

E

3.80

4.00

H

5.80

6.20

L

0.38

1.27

e

1.27 BSC

E

H

D

A

1

e

B
