20 / 41 page

715

800-262-IDEC (4332) • USA & Canada

ø22mm - TW Series

Switches & Pilot Devices

1904032203

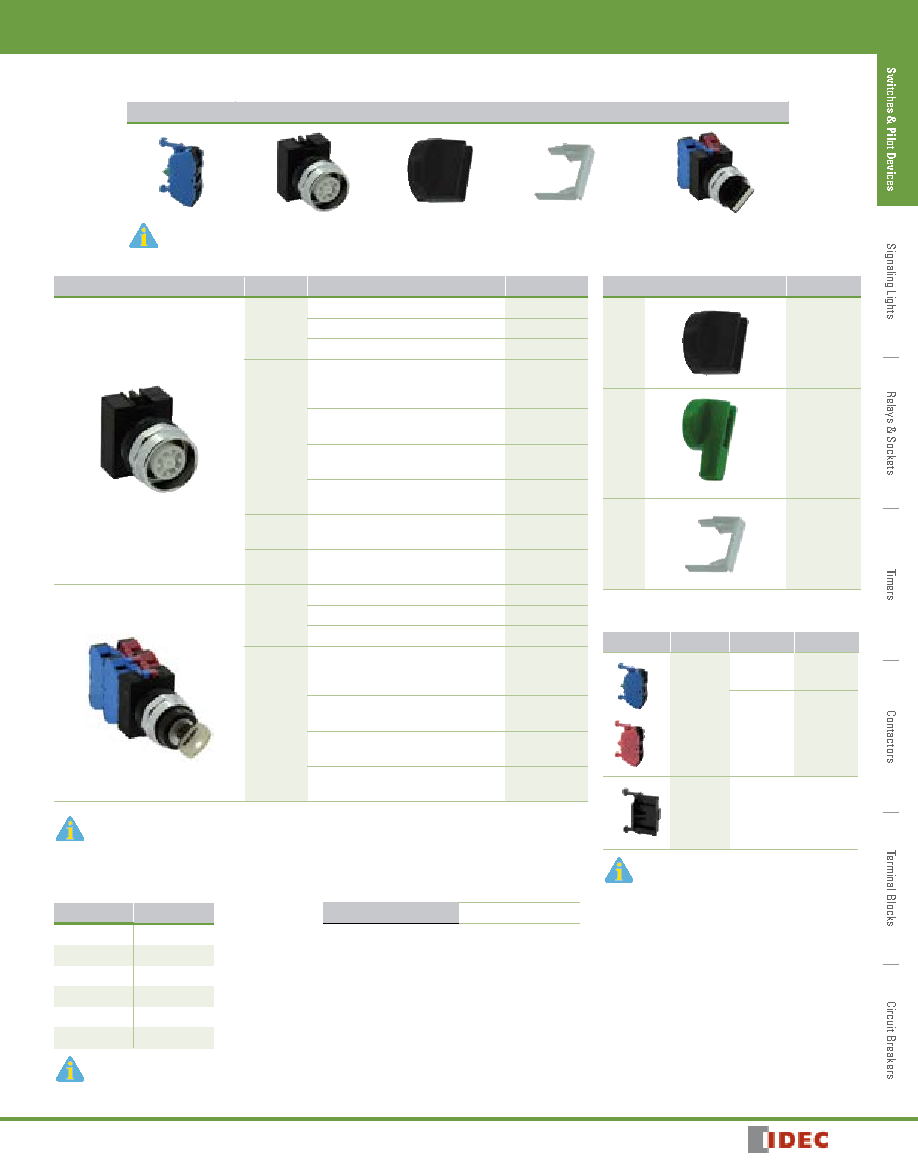

Non-Illuminated Selector Switches (Sub-Assembled)

Contact Blocks

Operator

Knob or Lever*

Color Insert*

Complete Part†

1. *Not needed with key type switches.

2. †Knob type shown.

Operators

Style

Positions

Description

Part Number

Knob/Lever

Maintained

ASW200

Spring return from right

ASW2100

Spring return from left

ASW2200

Maintained, Cam 1

Maintained, Cam 2

Maintained, Cam 3

ASW300-1

ASW300-2

ASW300-3

Spring return from right, Cam 1

Spring return from right, Cam 2

ASW3100-1

ASW3100-2

Spring return from left, Cam 1

Spring return from left, Cam 2

ASW3200-1

ASW3200-2

Spring return from left/right, Cam 1

Spring return from left/right, Cam 2

ASW3300-1

ASW3300-2

Maintained, Standard Cam

Maintained, Cam 1

ASW400

ASW400-1

Maintained, Standard cam

Maintained, Cam 1

ASW500

ASW500-1

Key

Maintained

ASW2K00

Spring return from right

ASW21K00

Spring return from left

ASW22K00

Maintained, Cam 1

Maintained, Cam 2

Maintained, Cam 3

ASW3K00-1

ASW3K00-2

ASW3K00-3

Spring return from right, Cam 1

Spring return from right, Cam 2

ASW31K00-1

ASW31K00-2

Spring return from left, Cam 1

Spring return from left, Cam 2

ASW32K00-1

ASW32K00-2

Spring return from left/right, Cam 1

Spring return from left/right, Cam 2

ASW33K00-1

ASW33K00-2

1. Two keys are supplied with every key switch, all are keyed alike, and removable from any maintained position.

2. Locking rings are included with all operators. Order knobs, levers, and color inserts separately.

3. Different cams produce different contact actions. For details, see page 720.

4. Key switch operator supplied with black sleeve.

Handles and Inserts

Style

Part Number

Knob

ASWHHY-j

Lever

ASWHHL-j

Color

Insert

TW-HC1-j

Contact Blocks

Style

Contacts

1NO

1NC

Finger-

Safe

Spring-Up

Terminal

HW-U10-F

HW-U01-F

HW-U10R-F

(early make)

HW-U01R-F

(late break)

Dummy

Block

HW-DB

1. Push rod color code:

Green = NO contact block

Red = NC contact block.

2. Dummy blocks (no contacts) are used with an odd

number of contact blocks.

Handle/Insert Color Codes

Color

Code

Black*

Blue

Green

Red

Yellow

White†

*Color inserts not available in black.

†

Knob and lever not available in white.

Replacement Parts

Key Switch Black Sleeve

AKW2B-B
