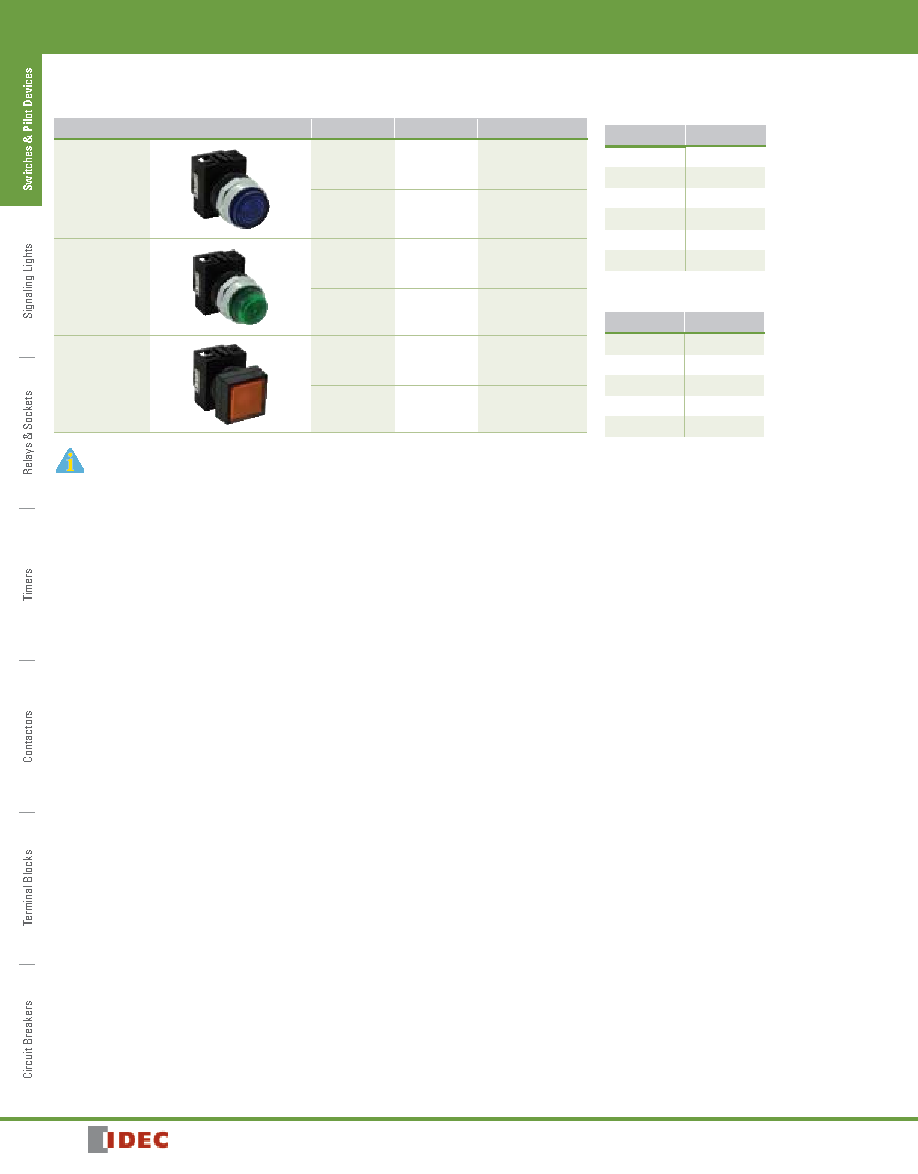

ø22mm - TW Series

Switches & Pilot Devices

706

www.IDEC.com

1904032203

Pilot Lights (Assembled) continued

Assembled Pilot Lights

Style

Type

Voltage

Part Number

Round Flat

Transformer

120VAC

240VAC

480VAC

APW1126D-k

APW1246D-k

APW1486D-k

Full Voltage

—

APW199D-k-l

Dome

Transformer

120VAC

240VAC

480VAC

APW2126D-k

APW2246D-k

APW2486D-k

Full Voltage

—

APW299D-k-l

Square Flat

Transformer

120VAC

240VAC

480VAC

APQW1B126D-k

APQW1B246D-k

APQW1B486D-k

Full Voltage

—

APQW1B99D-k-l

1. In place of k, specify the Lens Color Code from table below.

2. In place of l, specify the Full Voltage Code from table below.

3. For accessories, see page 728.

4. For dimensions, see page 730.

5. For sub-assembly part numbers, see next page.

6. Yellow pilot light comes with white LED.

Lens Color Codes

Color

Code

Amber

Green

Red

Blue

White

Yellow

Full Voltage Codes

Voltage

Code

6V AC/DC

12V AC/DC

12V

24V AC/DC

24V

120V AC

120V

240V AC

240V
