ø22mm - TW Series

Switches & Pilot Devices

712

www.IDEC.com

1904032203

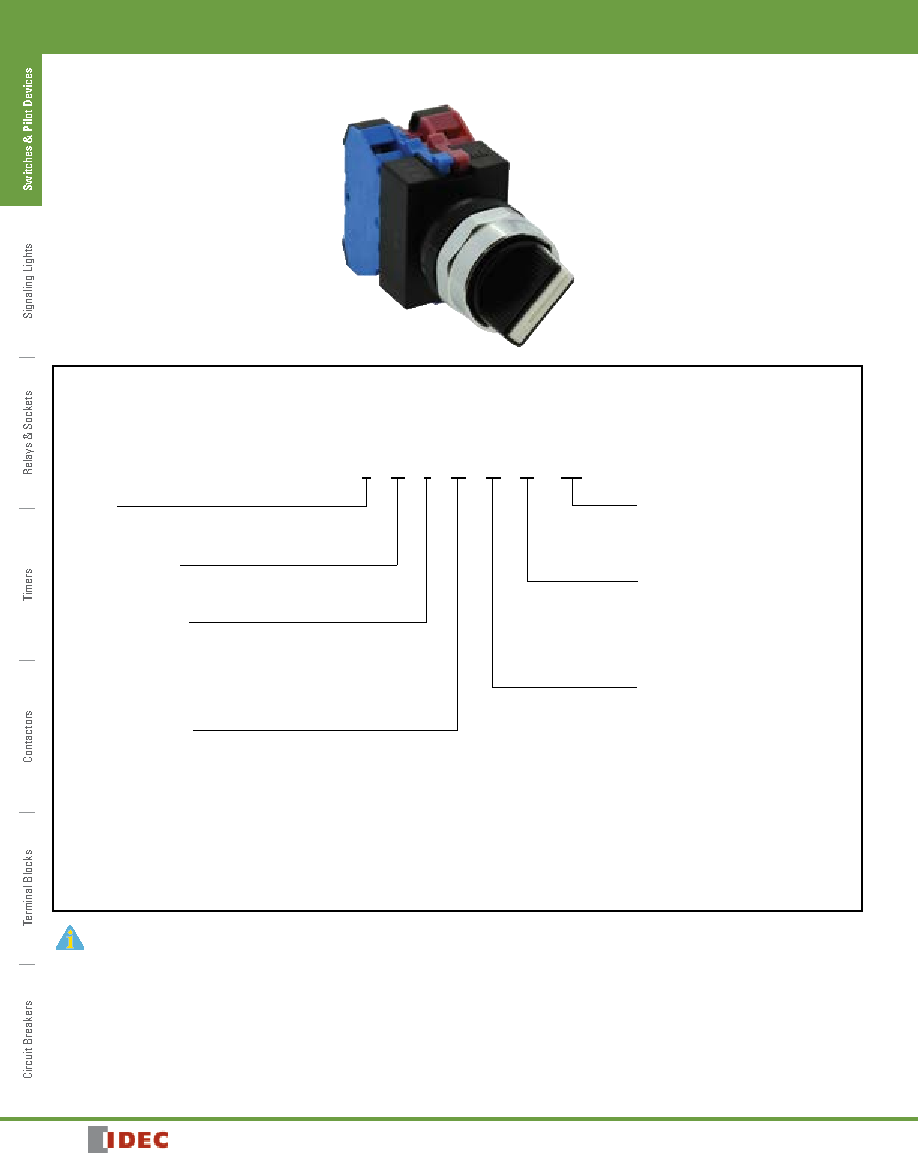

Non-Illuminated Selector Switches (Assembled)

Assembled Selector Switches

(1)

(L)

20 – 304

Function

S: Selector Switch

Series Designation

W: TW Series

Number of Positions

2: 2-Position

3: 3-Position

4: 4-Position

5: 5-Position

Spring Return Action

Blank: Maintained

1: Spring return from Right (2 or 3 position)

2: Spring return from Left (2 or 3 position)

3: 2-Way spring return from Left and Right

(3 position only)

Circuit Number

(Standard circuits shown on following

pages and 720.)

Contact Arrangement Code

10: 1NO

01: 1NC

20: 2NO

02: 2NC

40: 4NO

04: 4NC

11: 1NO-1NC 22: 2NO-2NC

Operator Style Code

Blank:

Knob Operator

L: Lever Operator

K: Key Operator

1. Use only when interpreting part numbers. Do not use for developing part numbers.

2. Custom contact configurations available.

3. Custom key removable codes available.

4. Portions of part number inside ( ) are optional.
