701

800-262-IDEC (4332) • USA & Canada

ø22mm - TW Series

Switches & Pilot Devices

1904032203

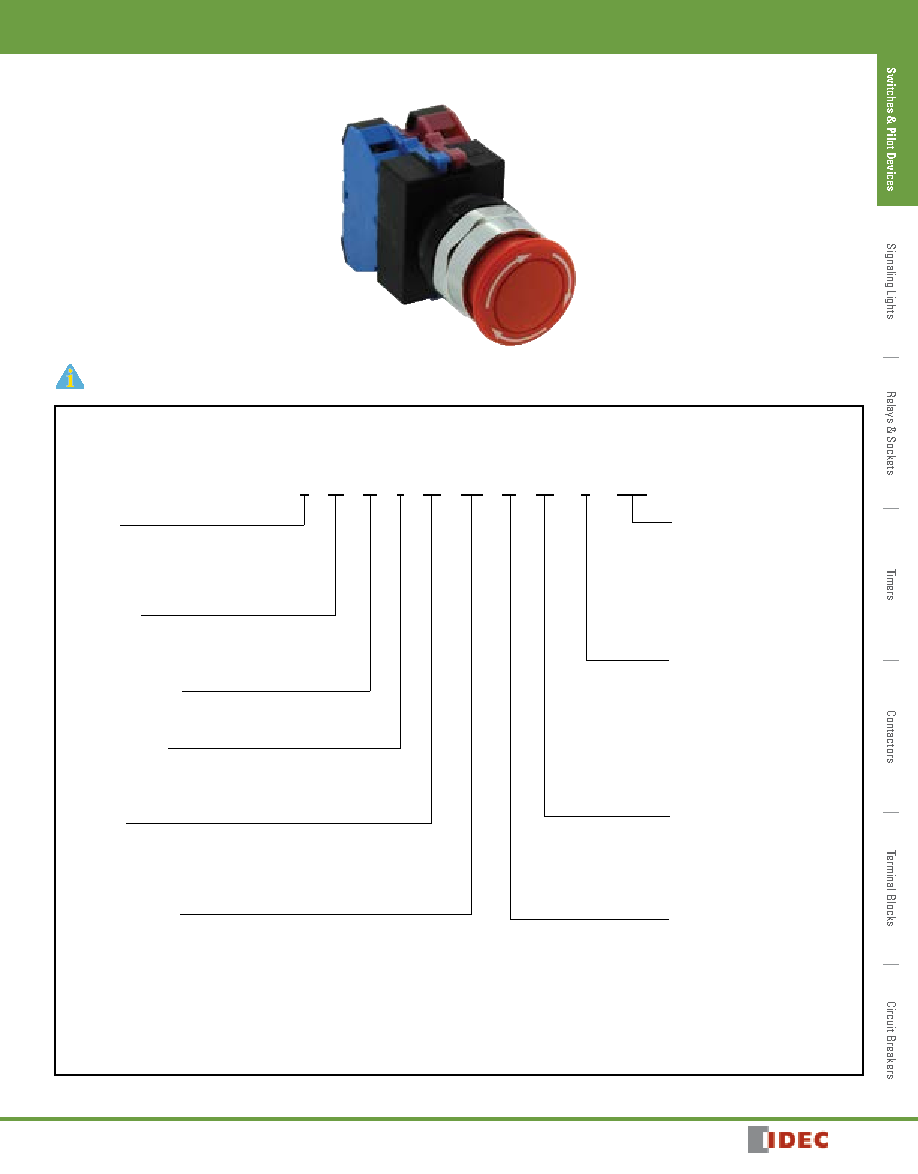

Stop Switches (Assembled)

To be used for interpreting part numbers only, not for part number development.

Assembled Stop Switches

(L)

(B)

(99)

(D) – R – (24V)

Function

V: Pushlock Turn Reset

Y: Push-Pull

X: Pushlock Key Reset

Illumination

Blank: None

L: Illuminated

Series Designation

W: TW Series

Button/Lens Size

3: 29mm Mushroom

4: 40mm Mushroom

Lens Type

(illuminated units only)

Blank: Standard (ribbed)

B: Engravable (smooth with insert)

Illuminated Circuit

(illuminated unit only)

99: Full Voltage (LED determines voltage)

126: 120V AC Step Down Transformer

246: 240V AC Step Down Transformer

486: 480V AC Step Down Transformer

Lamp Voltage

(full voltage illuminated units only)

6V: 6V AC/DC

12V: 12V AC/DC

24V: 24V AC/DC

120V: 120V AC

240V: 240V AC

Button/Lens Color

A: Amber R: Red

W: White

G: Green S: Blue Y: Yellow

B: Black

Lamp Type

(illuminated units only)

D: LED

Contact Arrangement

10:1NO

01:1NC

20:2NO

02:2NC

11:1NO/1NC 22:2NO/2NC
