ø22mm - TW Series

Switches & Pilot Devices

708

www.IDEC.com

1904032203

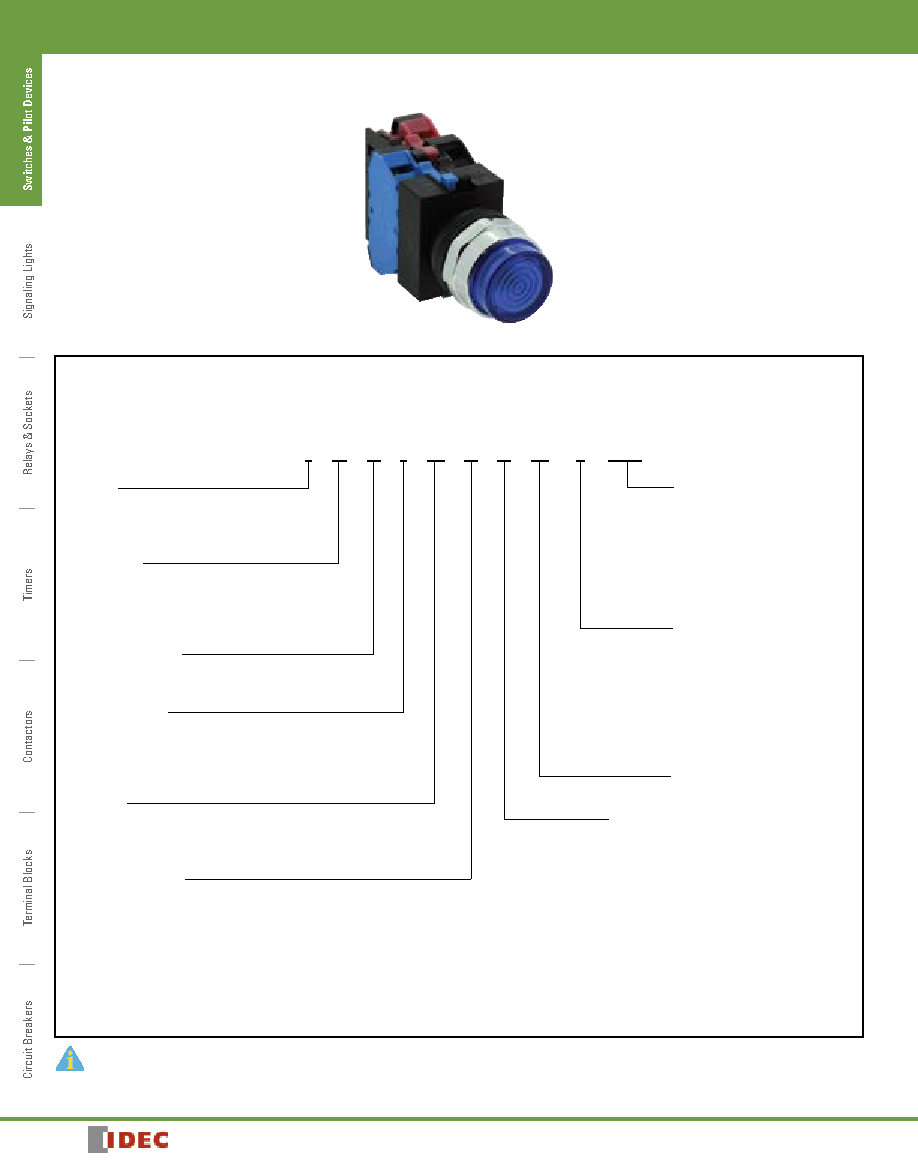

Illuminated Pushbuttons (Assembled)

Assembled Illuminated Pushbuttons

(F)

(B)

(D) – R – (24V)

Function

L:Momentary Action

OL:Maintained Action

Bezel Shape

Blank: Octagonal (round lenses)

F: Full Shroud (round lenses)

Q: Square

Series Designation

W: TW series

Lens Shape/Size

2: Standard Extended (round or square)

3: 29mm Mushroom

4: 40mm Mushroom

Lens Type

Blank: Standard (ribbed)

B: Engravable (smooth with insert)

Illumination Circuit

99: Full Voltage (lamp determines voltage)

126: 120V AC Step Down Transformer

246: 240V AC Step Down Transformer

486: 480V AC Step Down Transformer

Lamp Voltage

(Full Voltage Units Only)

6V: 6V AC/DC

12V: 12V AC/DC

24V: 24V AC/DC

120V: 120V AC

240V: 240V AC

Lens Code

A: Amber

G: Green

R: Red

S: Blue

W: White

Y: Yellow

Lamp Type

D: LED Lamp

Contact Arrangement

10: 1NO

01: 1NC

20: 2NO

02: 2NC

11: 1NO-1NC

22: 2NO-2NC

1. Use only when interpreting part numbers. Do not use for developing part numbers.

2. Transformers step down to 6V.
