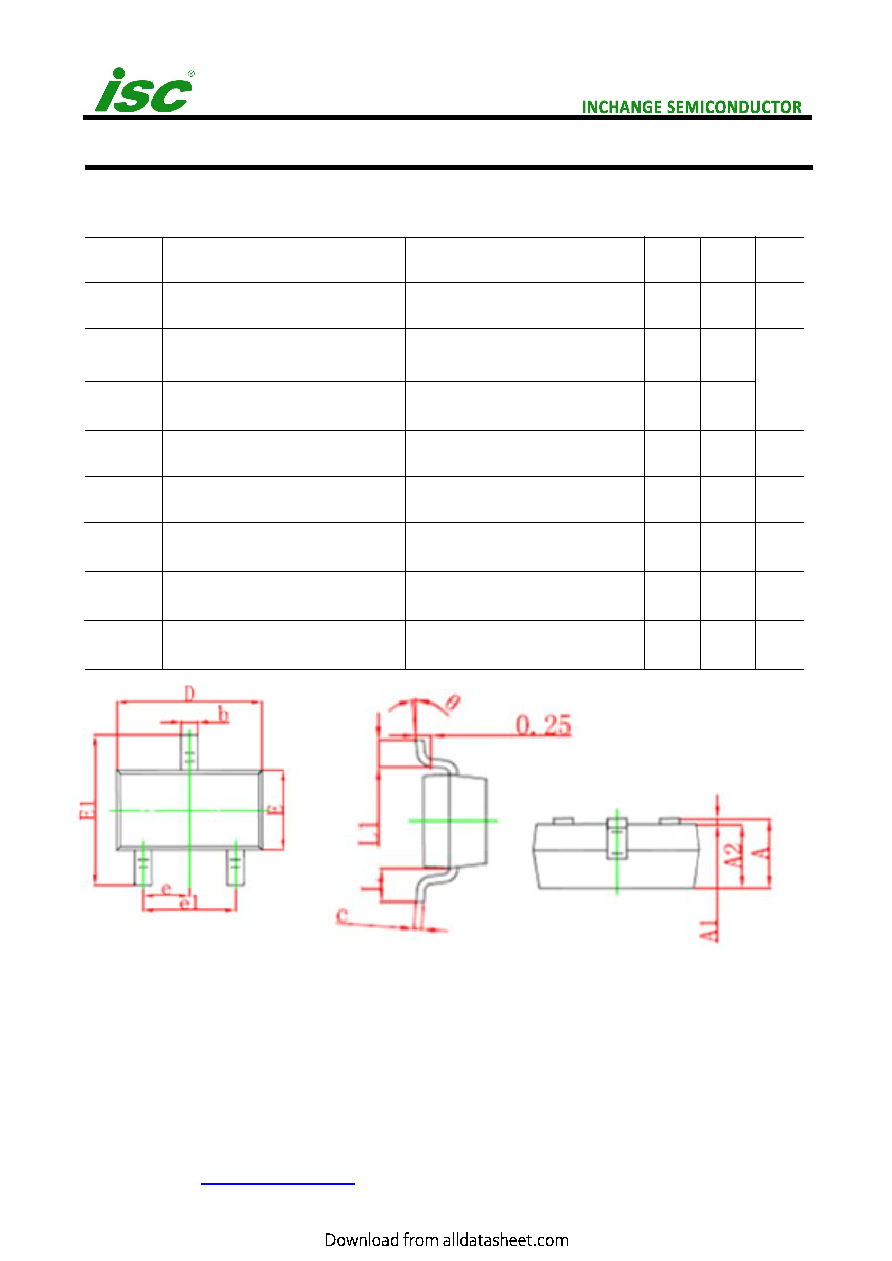

 2 / 3 page
background image
isc Website：www.iscsemi.com
isc & iscsemi is registered trademark
2
isc Silicon NPN Power Transistors
STR1550
ELECTRICAL CHARACTERISTICS
TC=25℃ unless otherwise specified
SYMBOL
PARAMETER
CONDITIONS
MIN
MAX
UNIT
V(BR)CEO
Collector-Emitter Breakdown Voltage
IC= 1mA; IB= 0
500
V
VCE(sat)
Collector-Emitter Saturation Voltage
IC= 20mA, IB = 2.0mA
0.2
V
VCE(sat)
Collector-Emitter Saturation Voltage
IC= 50mA, IB = 6mA
0.3
VBE(sat)
Base-Emitter Saturation Voltage
IC= 50mA, IB = 5mA
0.9
V
ICBO
Collector Cutoff Current
VCE= 500V; VEB= 0
10
µA
hFE-1
DC Current Gain
IC= 1.0mA, VCE = 10 V
100
hFE-2
DC Current Gain
IC= 50mA, VCE = 10 V
100
300
hFE-3
DC Current Gain
IC= 100mA, VCE = 10 V
10
