Peak Gain

The peak gain across the antenna bandwidth is shown in Figure 4. Peak gain represents the maximum

antenna input power concentration across 3-dimensional space, and therefore peak performance at a given

frequency, but does not consider any directionality in the gain pattern.

-10

-5

0

5

10

2000

2500

3000

3500

4000

4500

5000

5500

6000

Frequency (MHz)

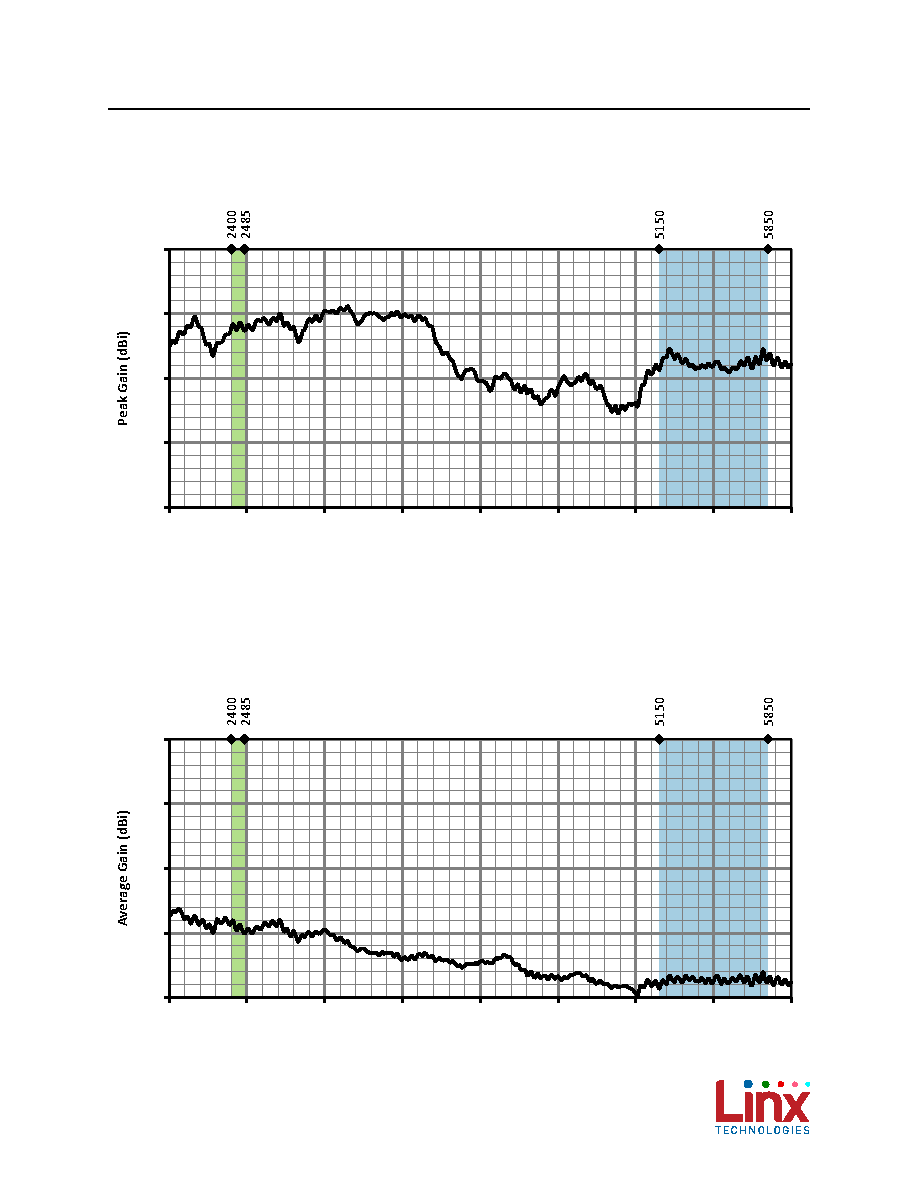

Figure 4. ANT-2/5-HDP-2000 Peak Gain with Frequency Band Highlights

Average Gain

Average gain (Figure 5), is the average of all antenna gain in 3-dimensional space at each frequency,

providing an indication of overall performance without expressing antenna directionality.

-10

-5

0

5

10

2000

2500

3000

3500

4000

4500

5000

5500

6000

Frequency (MHz)

Figure 5. ANT-2/5-HDP-2000 Antenna Average Gain with Frequency Band Highlights
