AiT Semiconductor Inc.
www.ait-ic.com
2SD1007
GENERAL PURPOSE TRANSISTORS
NPN TRANSISTORS
REV1.1
- MAR 2015 RELEASED, AUG 2020 UPDATED -
- 3 -

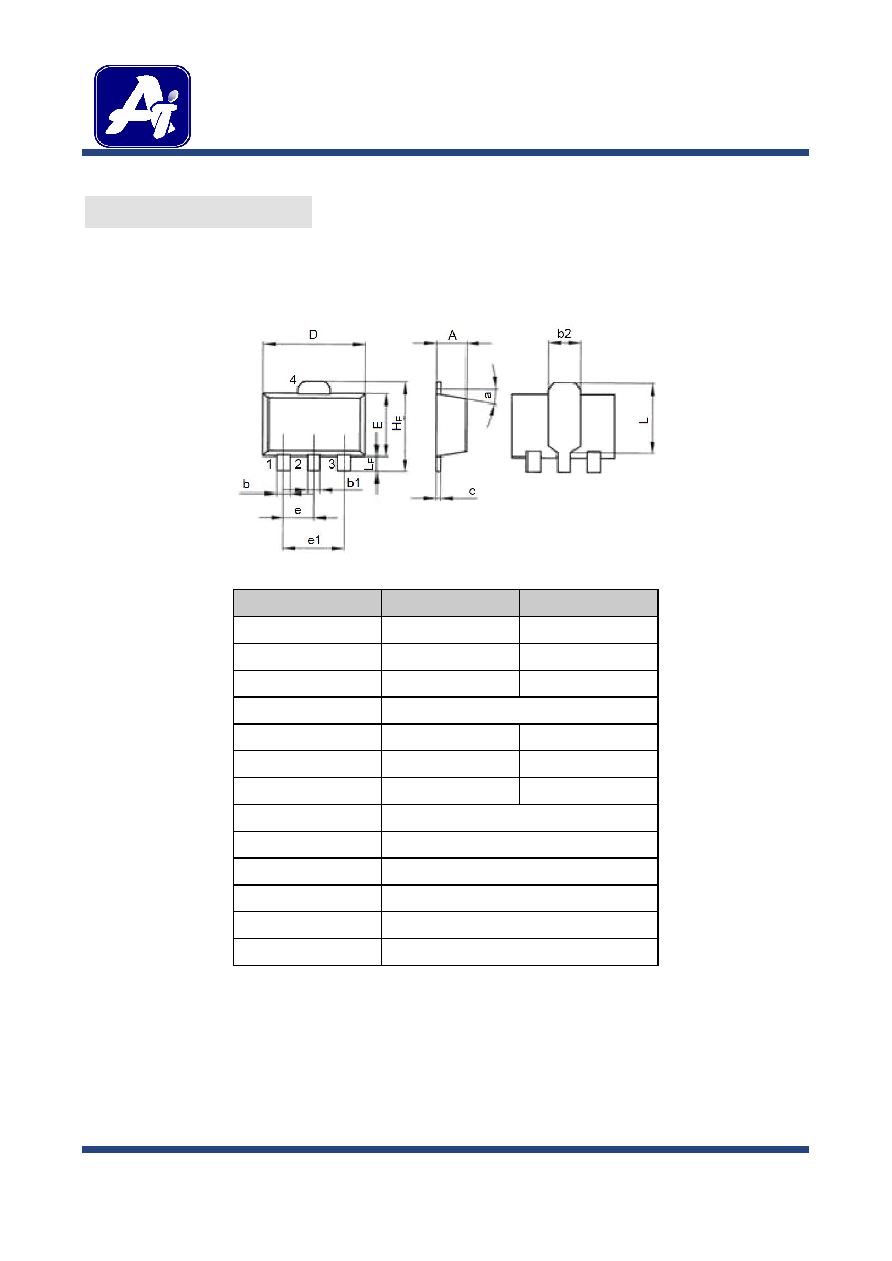

PACKAGE INFORMATION
Dimension in SOT-89 (Unit: mm)
Symbol
Min
Max
A
1.4
1.6
b
0.35
0.55
b1
0.4
0.65
b2
1.6 TYP
c
0.35
0.45
D
4.4
4.6
E
2.35
2.55
e
1.5 TYP
e1
3.0 TYP
HE
4.15 TYP
L
2.7 TYP
LE
1.0 TYP
α
5°
