ADPA1106ACGZN-R7 Datasheet(PDF) 7 Page - Analog Devices

Part # ADPA1106ACGZN-R7
Description  46 dBm (40 W), 2.7 GHz to 3.5 GHz, GaN Power Amplifier
PDF  19 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  AD [Analog Devices]
Direct Link  http://www.analog.com
Logo AD - Analog Devices

ADPA1106ACGZN-R7 Datasheet(HTML) 7 Page - Analog Devices

Back Button ADPA1106ACGZN-R7 Datasheet HTML 3Page - Analog Devices ADPA1106ACGZN-R7 Datasheet HTML 4Page - Analog Devices ADPA1106ACGZN-R7 Datasheet HTML 5Page - Analog Devices ADPA1106ACGZN-R7 Datasheet HTML 6Page - Analog Devices ADPA1106ACGZN-R7 Datasheet HTML 7Page - Analog Devices ADPA1106ACGZN-R7 Datasheet HTML 8Page - Analog Devices ADPA1106ACGZN-R7 Datasheet HTML 9Page - Analog Devices ADPA1106ACGZN-R7 Datasheet HTML 10Page - Analog Devices ADPA1106ACGZN-R7 Datasheet HTML 11Page - Analog Devices Next Button
Zoom Inzoom in Zoom Outzoom out
 7 / 19 page
background image
Data Sheet
ADPA1106
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. 0 | 7 of 19

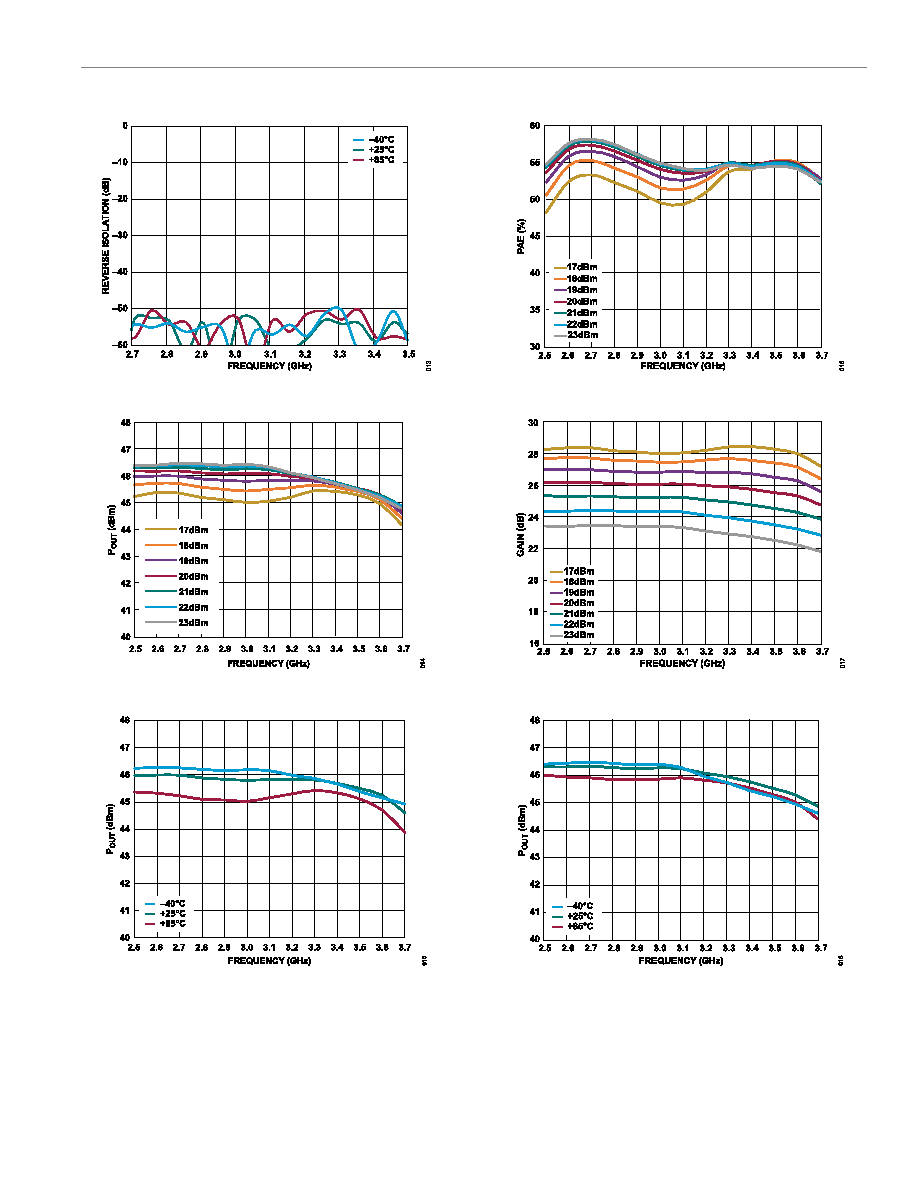

Figure 13. Reverse Isolation vs. Frequency at Various Temperatures
Figure 14. POUT vs. Frequency at Various PIN Levels
Figure 15. POUT vs. Frequency at Various Temperatures, PIN = 19 dBm
Figure 16. PAE vs. Frequency at Various PIN Levels
Figure 17. Gain vs. Frequency at Various PIN Levels
Figure 18. POUT vs. Frequency at Various Temperatures, PIN = 21 dBm
