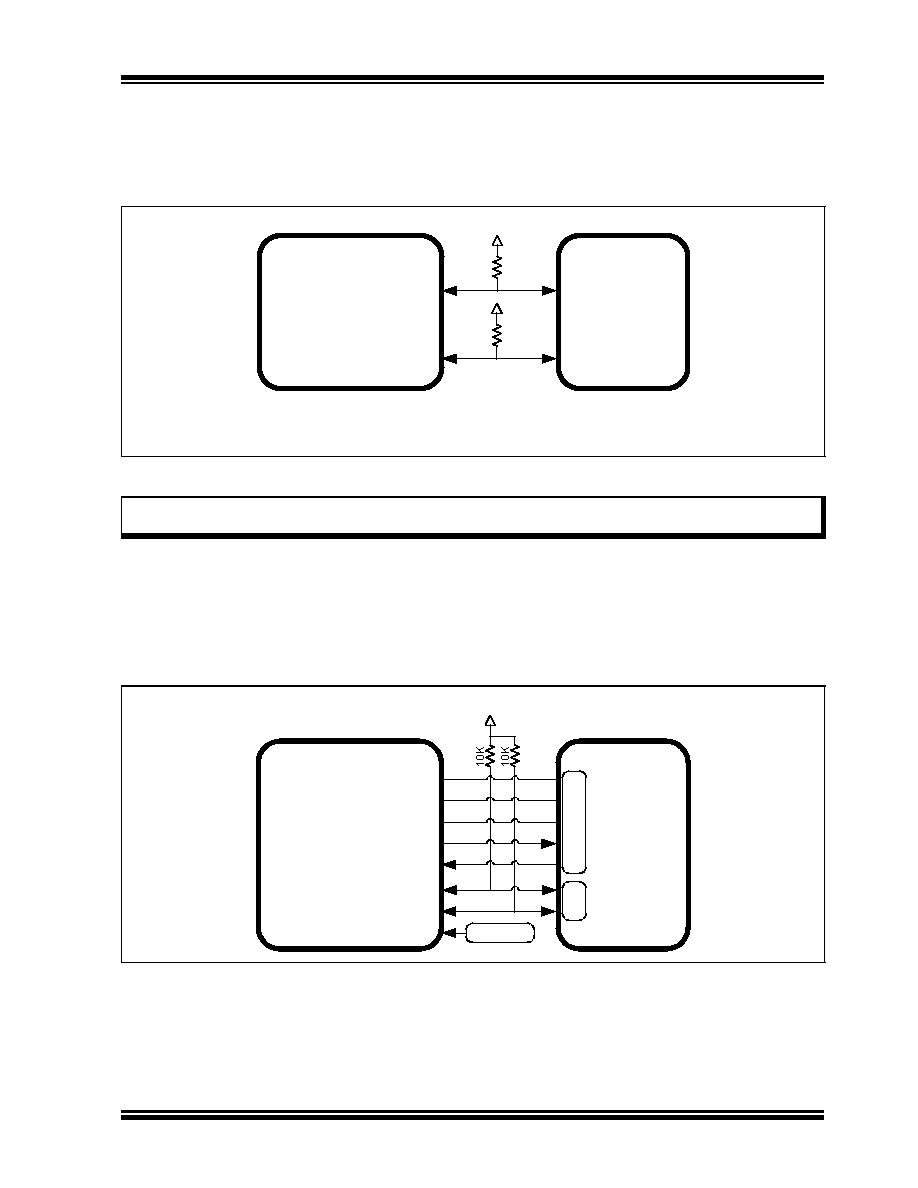

23 / 56 page  2022 Microchip Technology Inc. and its subsidiaries DS00002670G-page 23 USB7002 4.3 SMBus/I2C Connections Figure 4-3 illustrates the SMBus/I2C connections. 4.4 I2S Connections Figure 4-4 illustrates the I2S connections. FIGURE 4-3: SMBUS/I2C CONNECTIONS Note: Resistor values detailed in Figure 4-3 are suggestions. Optimal pull-up values may vary dependent on external factors. FIGURE 4-4: I2S CONNECTIONS +3.3V USB7002 x_I2C_CLK x_I2C_DAT SMBus/I2C Clock Data R +3.3V R R = 4.7K for 400/100KHz Master I2C interfaces, 1.0K for 1MHz Master I2C interfaces, 10K for Slave I2C interfaces USB7002 I2S_LRCK I2S_SDO I2S_SD I2S_MCLK CODEC I2S_SCK +3.3V I2S MSTR_I2C_CLK MSTR_I2C_DAT I 2C Audio Jack MIC_DET |
|
