2.2

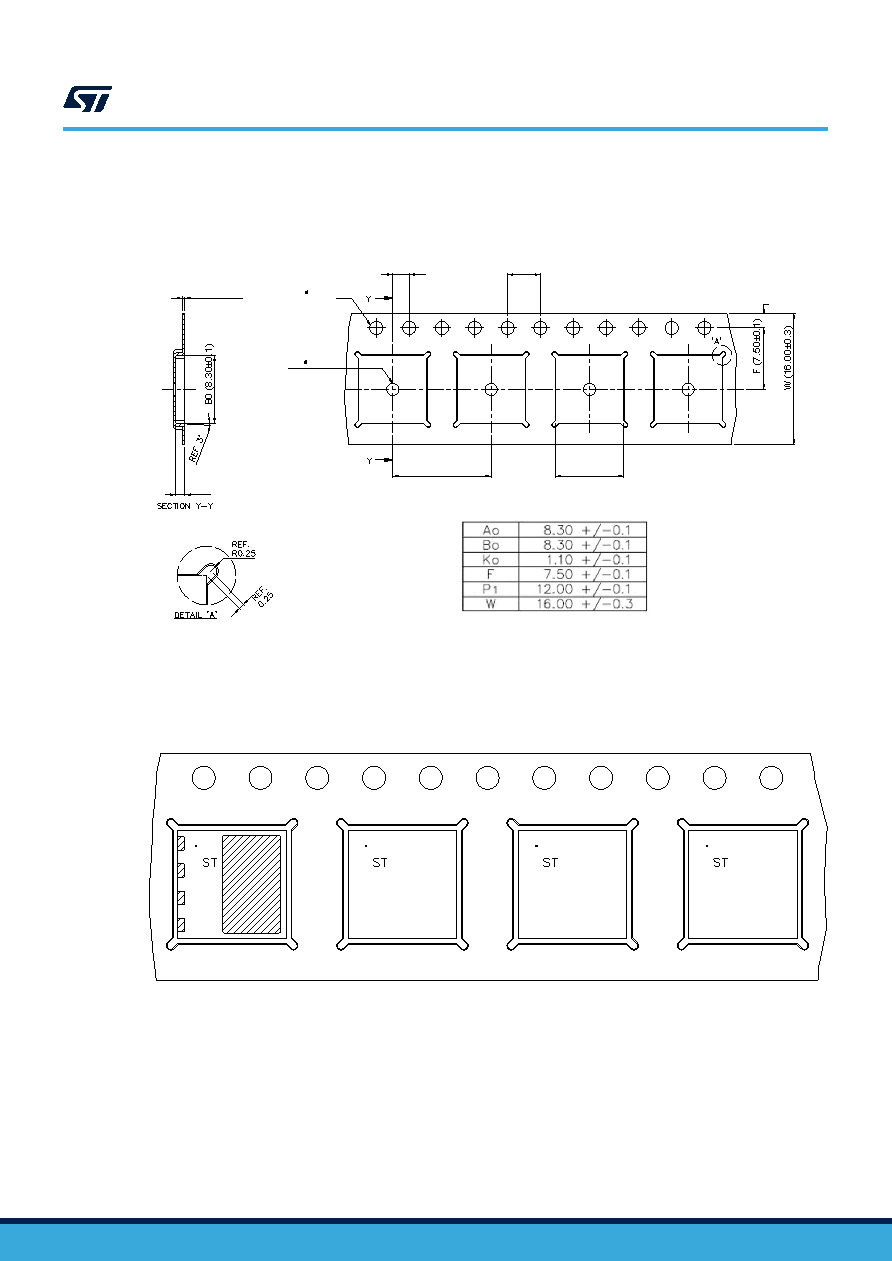

PowerFLAT 8x8 HV packing information
Figure 11. PowerFLAT 8x8 HV tape
E (1.75±0.1)
A0 (8.30±0.1)
P1 (12.00±0.1)
P2 (2.0±0.1)
P0 (4.0±0.1)
D0 ( 1.55±0.05)
D1 ( 1.5 Min)
T (0.30±0.05)
K0 (1.10±0.1)
Note:
All dimensions are in millimeters.
Figure 12. PowerFLAT 8x8 HV package orientation in carrier tape
STPSC4H065DLF
PowerFLAT 8x8 HV packing information
DS12819 - Rev 2
page 8/12
