FDSD-002-R Datasheet(PDF) 2 Page - C&K Components

Part # FDSD-002-R
Description  Micro Mini Side Actuated Detect Switches
PDF  2 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  CK-COMPONENTS [C&K Components]
Direct Link  http://www.ck-components.com
Logo CK-COMPONENTS - C&K Components

FDSD-002-R Datasheet(HTML) 2 Page - C&K Components

  FDSD-002-R Datasheet HTML 1Page - C&K Components FDSD-002-R Datasheet HTML 2Page - C&K Components
Zoom Inzoom in Zoom Outzoom out

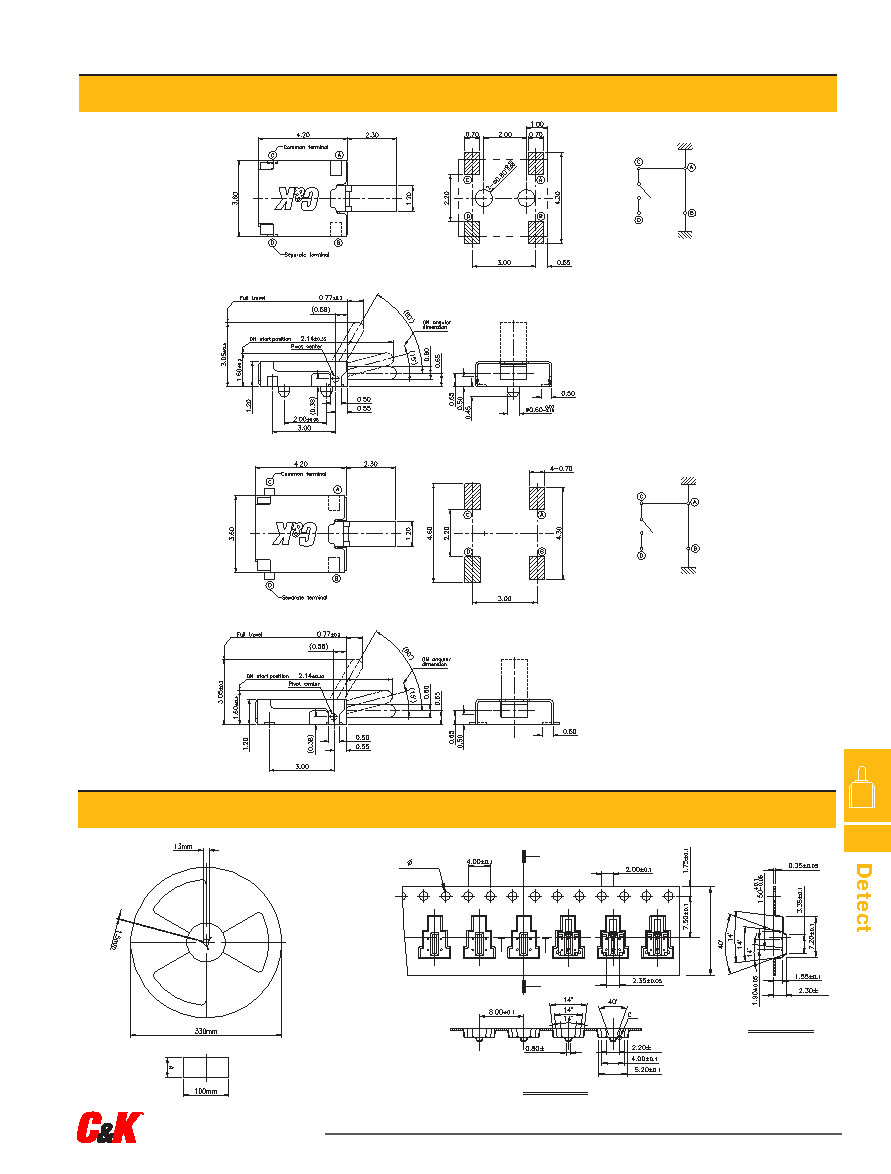

 2 / 2 page
background image
E
E–27
Dimensions are shown: mm
Specifications and dimensions subject to change
www.ckswitches.com
SERIES
FDSD Series
Micro Mini Side Actuated Detect Switches
Circuit diagram
PCB LAYOUT
FDSD001R
Circuit diagram
PCB LAYOUT
FDSD002R
10 Sep 19
NEW
