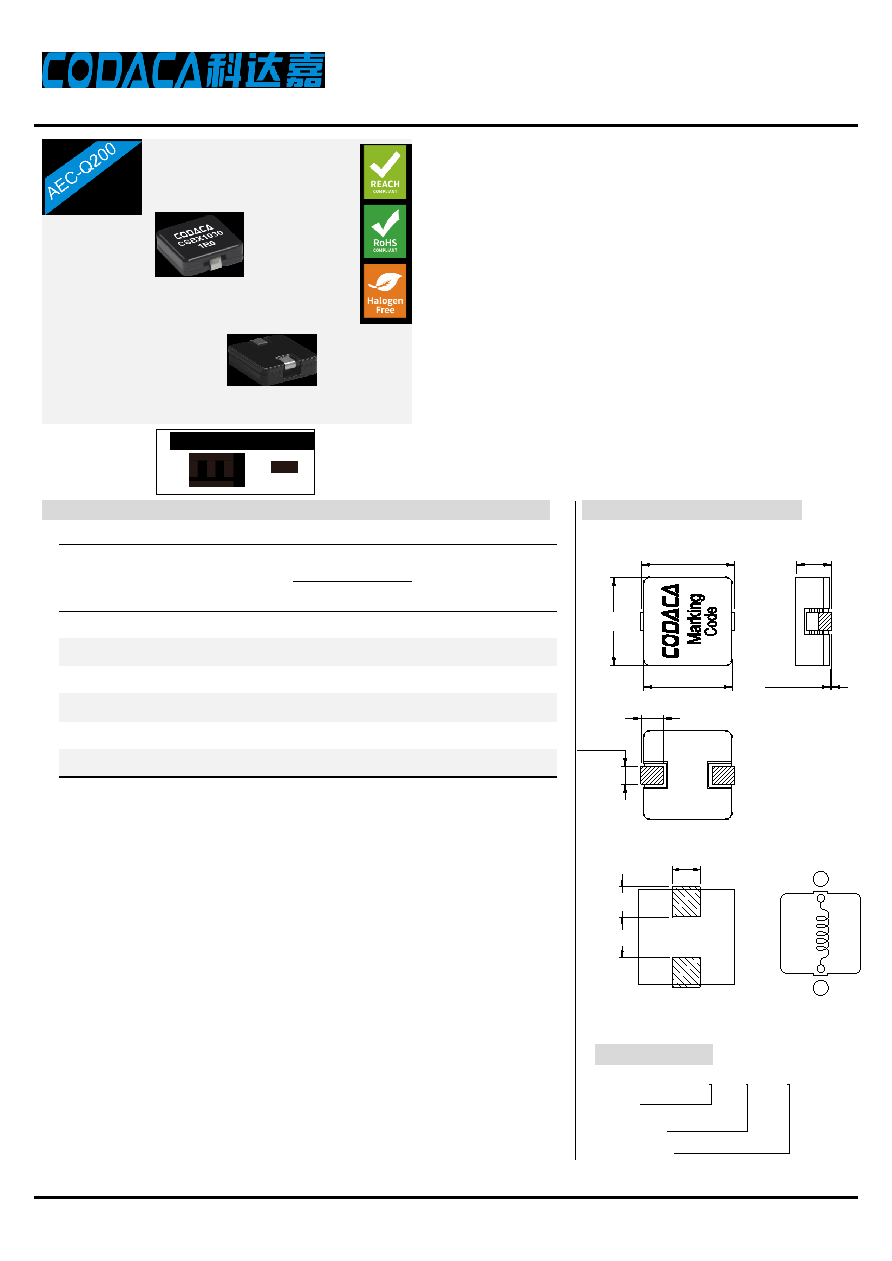

High Current Power Inductor

CSBX1030 Series

This product is not authorized for use in any application related to safety.

Specification subject to change without notice. Please check web site for latest information.

Revised: 07/14/2020

Outline

:

▪ Special materials eliminate all thermal aging issues.

▪ Flat wire coil for low losses at high frequency

▪ Soft saturation makes them ideal for VDR/VRM applications

Features：

▪ Core material: Composite

▪ Core and winding loss:

See www.codaca.com/en/PowerInductorLossComparison

▪ Enviromental: RoHS, Reach compliant ,Halogen free

▪ Weight:1.61 g

▪ Moisture Sensitivity:Level (MSL) 1

(unlimited floor life at <30°C / 85% relative humidity).

▪ Operating temperature range: -55℃～+150℃

(including coil

’s self temperature rise)

▪ Storage temperature range: -40℃～+125℃

Application：

▪ Rraphic cards/ industrial conputers.

▪ DC /DC converters/Motherboards/Filter

▪ High current switching regulators/Polyphase-switching regulators

1 Electrical Characteristics

2 Product Dimensions (mm)

Part No.

Inductance

(

μH)※1

D.C.R. (m

Ω)

Isat

(A)

※2

Irms

(A)

※3

10.2±0.5

10.2±0.5

3.0±0.3

0 ~ 0.2

11.2Max

2.5±0.5

2.0±0.3

1

2

4.0

3.85

3.8

±20%

Typical

Max.

Typical

Typical

CSBX1030-R20M

0.20

0.82

0.95

65.0

22.0

CSBX1030-R47M

0.47

2.15

2.50

40.0

18.0

CSBX1030-1R0M

1.00

4.08

4.70

25.0

15.0

CSBX1030-1R5M

1.50

6.58

7.60

22.0

12.0

CSBX1030-2R2M

2.20

11.5

13.3

18.0

9.00

CSBX1030-2R5M

2.50

11.5

13.3

15.0

9.00

3 How to Order

CSBX1030-R20M

Model

Dimensions

Value Code

Typical Land Pattern

Schematic

All data is tested on 25

℃ ambient temperature

1. Inductance measure condition at 100kHz,0.5V

2. Isat:the actual value of DC current when the inductance decrease 30% of its initial value

3. Irms:the actual value of DC current when the temperature rise is

ΔT50℃(Ta=25℃)
