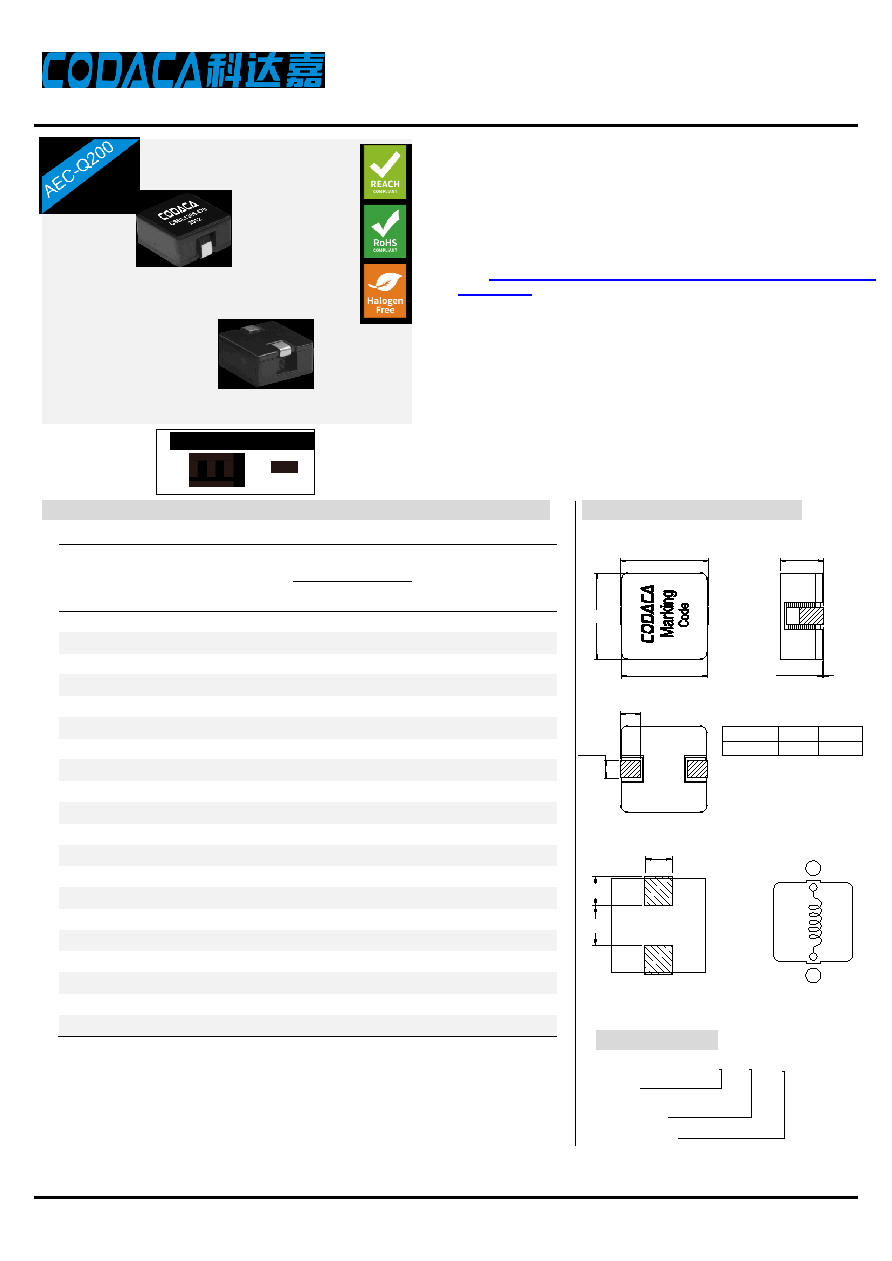

High Current Power Inductor

CSBL1265 Series

This product is not authorized for use in any application related to safety.

Specification subject to change without notice. Please check web site for latest information.

Revised: 07/14/2020

Outline

:

▪ Flat wire winding, achieve a low D.C. Resistance.

▪ Magnetic shielded structure: excellent resistance

to electro magnetic interference(EMI)

▪ Soft saturation makes them ideal for VDR/VRM applications

Features：

▪ Core material: Composite

▪ Core and winding loss:

See https://www.codaca.com/DesignTool_Power-Inductor-Loss-Com

parison.html

▪ Enviromental: RoHS, Reach compliant ,Halogen free

▪ Weight:5.39 g

▪ Moisture Sensitivity:Level (MSL) 1

(unlimited floor life at <30°C / 85% relative humidity).

▪ Operating temperature range: -40℃～+125℃

(including coil

’s self temperature rise)

▪ Storage temperature range: -40℃～+125℃

Application：

▪ Rraphic cards/ industrial conputers.

▪ DC /DC converters/Motherboards/Filter

▪ High current switching regulators/Polyphase-switching regulators

1 Electrical Characteristics

2 Product Dimensions (mm)

Part No.

Inductance

(

μH)※1

D.C.R. (m

Ω)

Isat

(A)

※2

Irms

(A)

※3

6.2±0.3

0 ~ 0.2

3.0±0.5

13.8Max

12.8±0.5

12.8±0.5

A±0.3

Part No.

Dimension A

R20-330

2.5

390-470

2.0

1

2

5.0

4.5

6.0

±20%

Typical

Max.

Typical

Typical

CSBL1265-R20M

0.20

0.32

0.37

70.0

36.0

CSBL1265-R47M

0.47

0.65

0.75

55.0

32.0

CSBL1265-R85M

0.85

0.90

1.05

50.0

26.0

CSBL1265-1R3M

1.30

1.69

1.95

35.0

25.0

CSBL1265-2R0M

2.00

2.25

2.60

30.0

23.0

CSBL1265-2R7M

2.70

3.25

3.75

28.0

20.0

CSBL1265-3R6M

3.60

4.20

4.85

24.0

17.0

CSBL1265-4R7M

4.70

5.42

6.25

21.0

14.0

CSBL1265-5R8M

5.80

6.93

7.97

18.0

12.0

CSBL1265-7R3M

7.30

5.68

6.50

13.0

13.0

CSBL1265-9R2M

9.20

7.24

8.35

12.0

12.0

CSBL1265-110M

11.0

8.87

10.2

11.0

11.0

CSBL1265-130M

13.0

10.2

11.7

10.0

10.0

CSBL1265-150M

15.0

12.3

14.1

9.50

9.00

CSBL1265-180M

18.0

15.2

17.5

8.50

8.50

CSBL1265-220M

22.0

18.6

21.5

8.00

8.00

CSBL1265-270M

27.0

23.9

27.5

6.50

6.50

CSBL1265-330M

33.0

26.3

30.3

6.00

5.50

CSBL1265-390M

39.0

40.3

46.5

5.70

4.50

CSBL1265-470M

47.0

54.5

62.7

5.00

4.00

All data is tested on 25

℃ ambient temperature

1.Inductance measure condition at 100kHz,0.5V

2.Isat:the actual value of DC current when the inductance decrease 30% of its initial value

3.Irms:the actual value of DC current when the temperature rise is

ΔT40℃(Ta=25℃)

3 How to order:

CSBL1265-470M

Model

Dimensions

Value Code

Typical Land Pattern

Schematic
