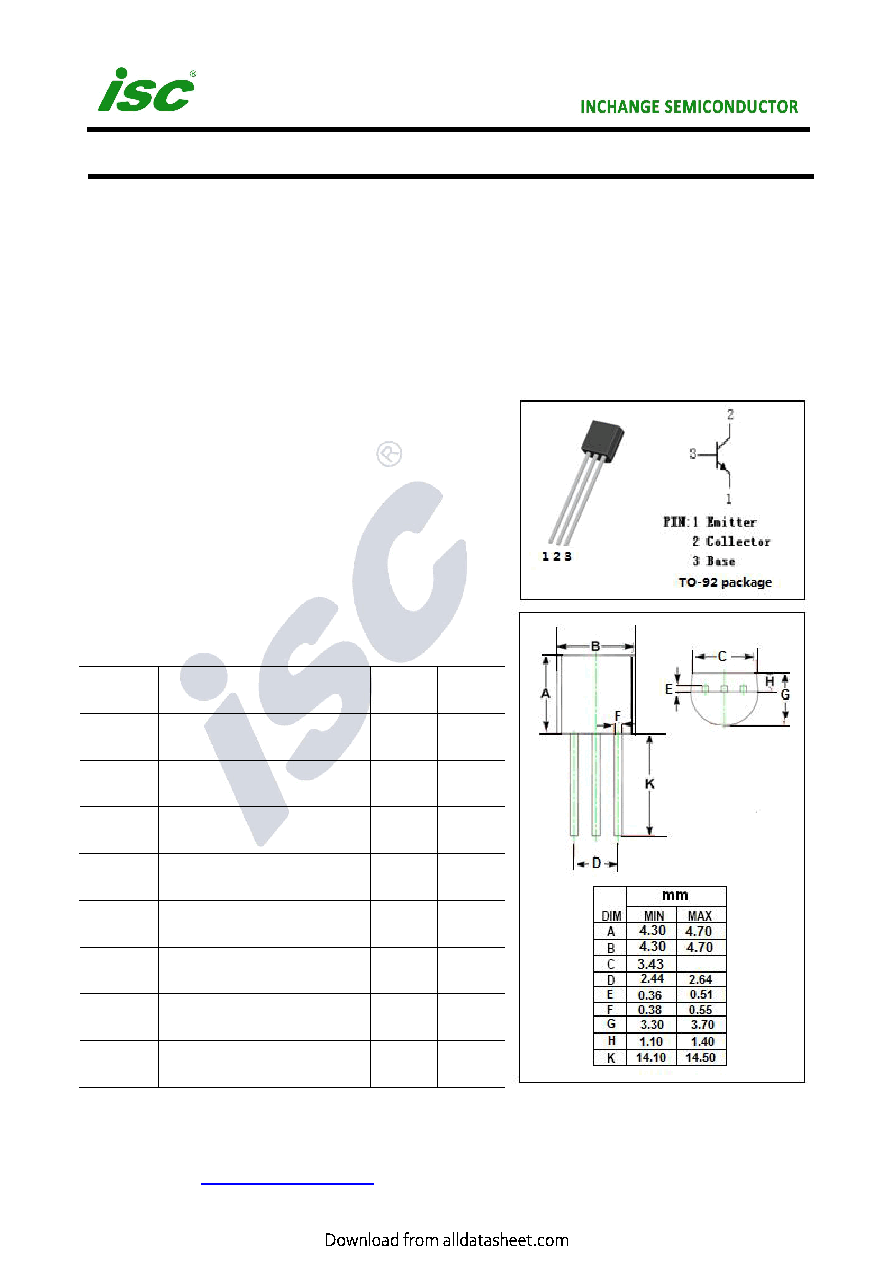

isc Silicon NPN Power Transistor
2SC2705
DESCRIPTION
·
Current-Gain sustaining Voltage
:VCEO = 150(min)
·
Good Linearity of hFE
·
Minimum Lot-to-Lot variations for robust device
performance and reliable operation
APPLICATIONS
·
Audio Frequency Amplifier Applications
ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
SYMBOL
PARAMETER
VALUE
UNIT
VCBO
Collector-Base Voltage
150
V
VCEO
Collector-Emitter Voltage
150
V
VEBO
Emitter-Base Voltage
5
V
IC
Collector Current-Continuous
50
mA
IB
Base Current-Continuous
5
mA
PC
Collector Power Dissipation
@ Tc=25℃
800
mW
TJ
Junction Temperature
150
℃
Tstg
Storage Temperature Range
-55~150
℃
