HSB-R001NN Datasheet(PDF) 6 Page - List of Unclassifed Manufacturers

Part # HSB-R001NN
Description  For IEEE-1394 High Performance Serial Bus Connectors
PDF  7 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  ETC [List of Unclassifed Manufacturers]
Direct Link
Logo ETC - List of Unclassifed Manufacturers

HSB-R001NN Datasheet(HTML) 6 Page - List of Unclassifed Manufacturers

  HSB-R001NN Datasheet HTML 1Page - List of Unclassifed Manufacturers HSB-R001NN Datasheet HTML 2Page - List of Unclassifed Manufacturers HSB-R001NN Datasheet HTML 3Page - List of Unclassifed Manufacturers HSB-R001NN Datasheet HTML 4Page - List of Unclassifed Manufacturers HSB-R001NN Datasheet HTML 5Page - List of Unclassifed Manufacturers HSB-R001NN Datasheet HTML 6Page - List of Unclassifed Manufacturers HSB-R001NN Datasheet HTML 7Page - List of Unclassifed Manufacturers
Zoom Inzoom in Zoom Outzoom out
 6 / 7 page
background image
●　 ●

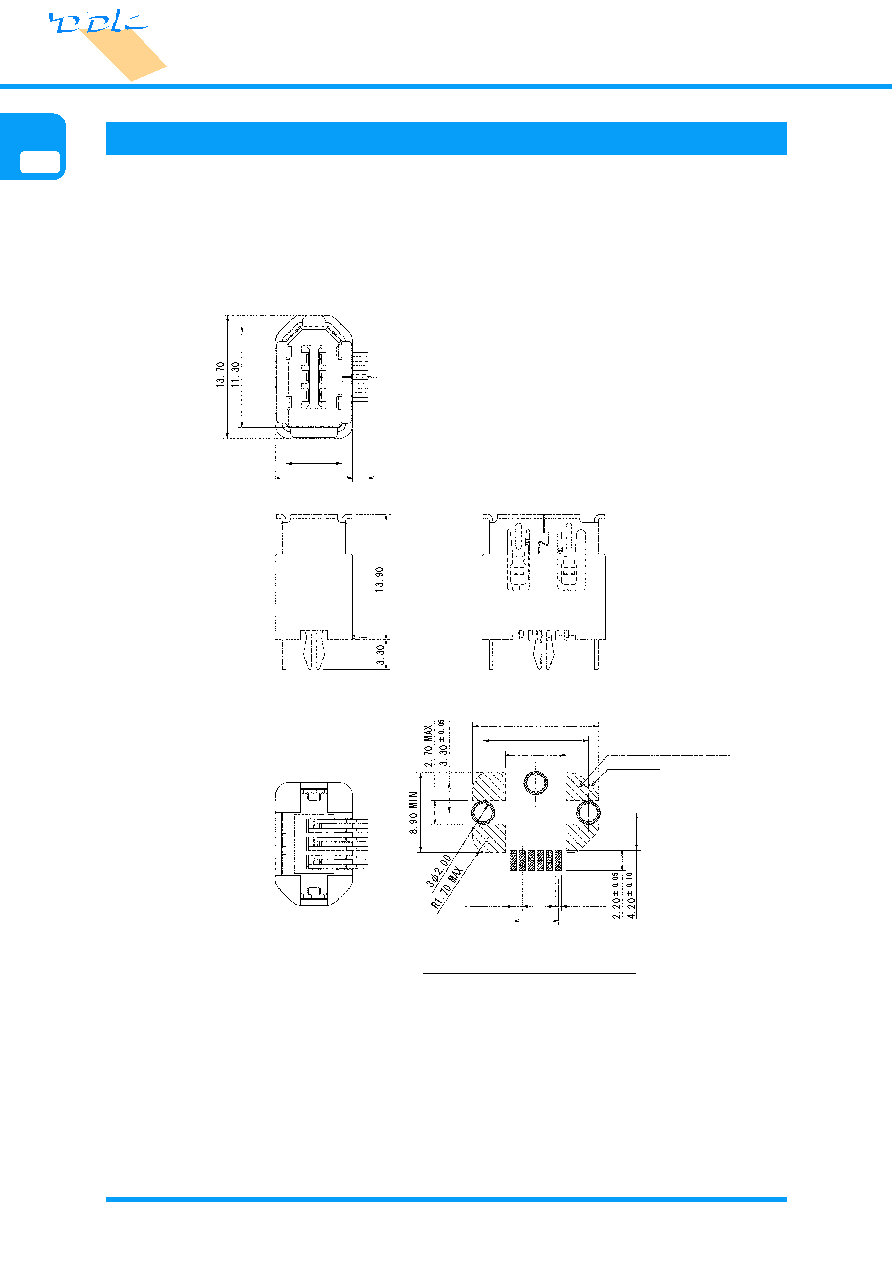

HSB Series
HSB-ARD64-SN16C
■Straight Receptacle (SMT Type)
6.20
8.60
1.70
14.00 MIN
11.70± 0.05
PATTERN PROHIBITION AREA　
C2.40 MAX　
1.00± 0.05
0.70± 0.05
5.00± 0.05
PCB Mounting Dimensions
PCB Thickness : t=1.60±0.19
( Connector Mounting Side)
6.70 MAX
6
Ａ
HSB
