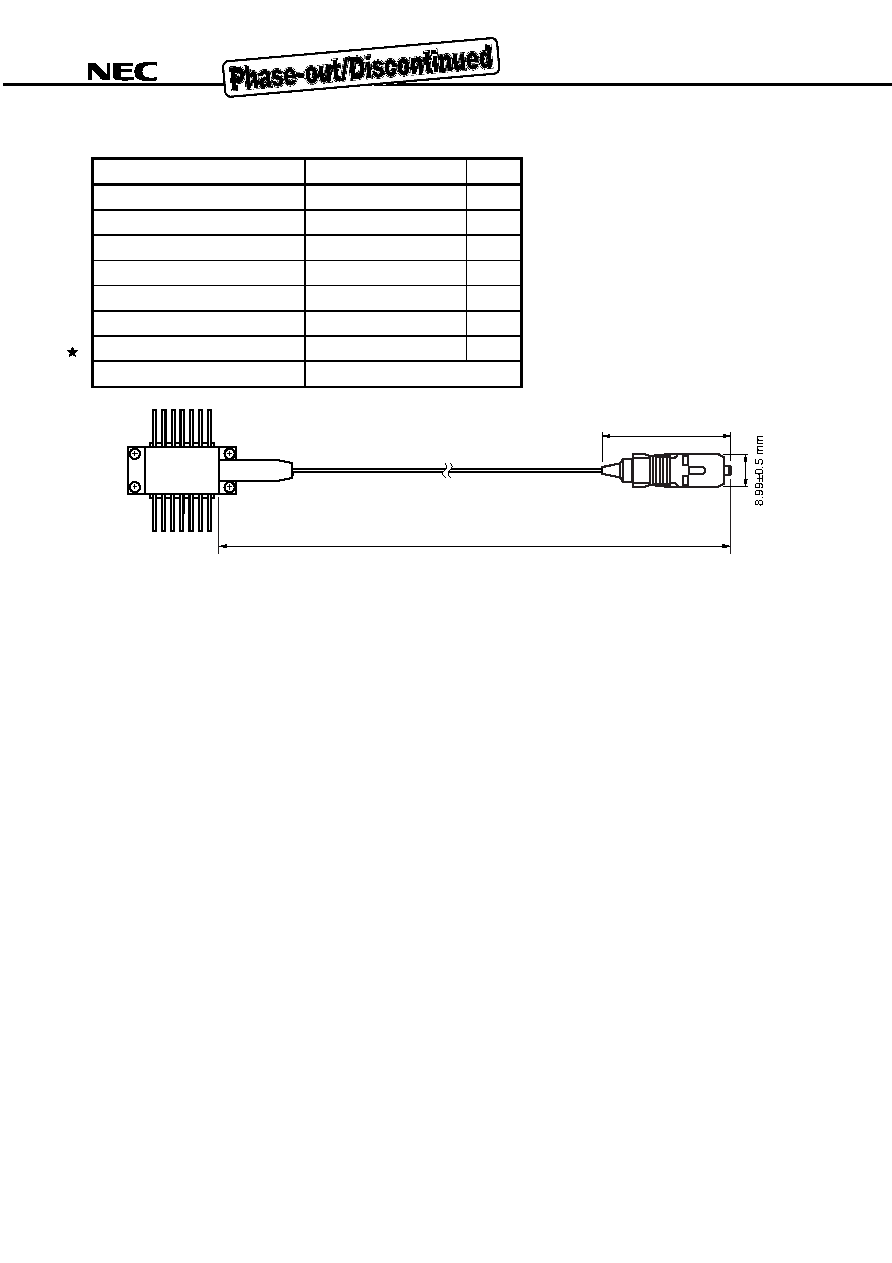

Data Sheet PL10186EJ03V0DS
3
NX8564/8565/8566LE Series
OPTICAL FIBER CHARACTERISTICS
Parameter
Specification
Unit
Mode Field Diameter
9.3
±0.5
µm
Cladding Diameter
125
±1
µm
Tight Buffer Diameter
900
±100
µm
Cut-off Wavelength
< 1 270
nm
Attenuation 1 525 to 1 575 nm
< 0.3
dB/km
Minimum Fiber Bending Radius
30
mm
Fiber Length
900 MIN.
mm
Flammability
UL1581 VW-1
-CC : SC-UPC connector
-BC : FC-UPC connector
Fiber Length : 900 mm MIN.
35±2 mm
