TCFL0402CF

3981 E. Miraloma Ave. Anaheim, CA 92806 USA

Tel: 714-528-8000

www.transko.com

sales@transko.com

Rev 1: 06-05-2020

● Inductance tolerance: Letter at end of part number: G = ±2% ; J = ±5% ; K = ±10%

● Specifications are measured using HP E4991A

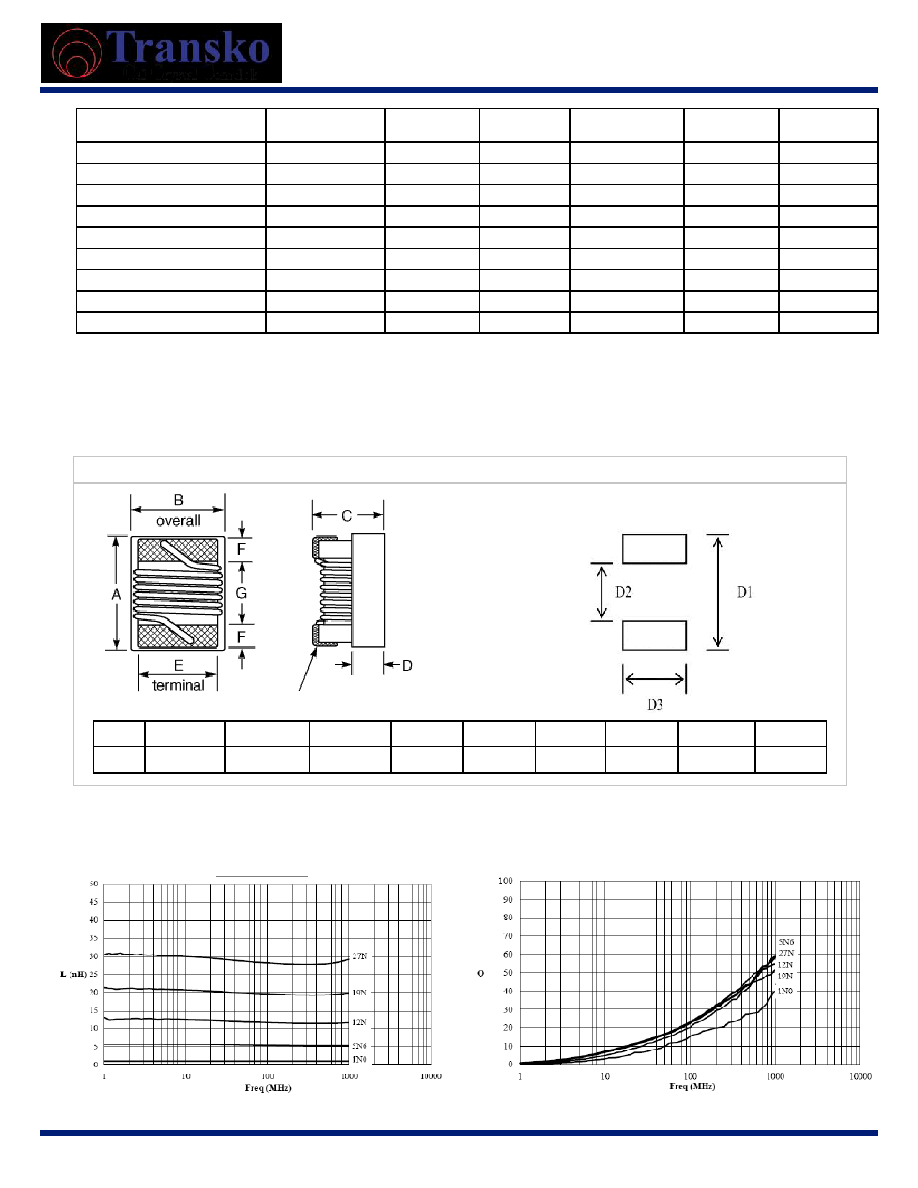

DIMENSIONS

SOLDER PATTERN

Unit: mm

A

B

C

D

F

G

D1

D2

D3

mm

1.19 Max

0.65 Max

0.66 Max

0.20

0.20

0.64

1.20

0.46

0.68

ELECTRODE TERMINAL

L vs FREQUENCY

Q vs FREQUENCY

Part Number

L( nH)/@MHz

Inductance

tolerance

Q min

@250MHz

SRF(MHz)

min.

DCR

(Ω) Max

IDC (mA)

Max

TCFL0402CF-40N_

40 / 250

G，J，K

24

2240

0.440

320

TCFL0402CF-43N_

43 / 250

G，J，K

25

2030

0.810

100

TCFL0402CF-47N_

47 / 200

G，J，K

20

2100

0.830

150

TCFL0402CF-51N_

51 / 200

G，J，K

25

1750

0.820

100

TCFL0402CF-56N_

56 / 200

G，J，K

22

1760

0.970

100

TCFL0402CF-68N_

68 / 200

G，J，K

22

1620

1.120

100

TCFL0402CF-82N_

82 / 150

J，K

20

1260

1.550

50

TCFL0402CF-R10_

100 / 150

G，J，K

20

1160

2.000

30

TCFL0402CF-R12_

120 / 150

G，J，K

20

1900

2.200

50
