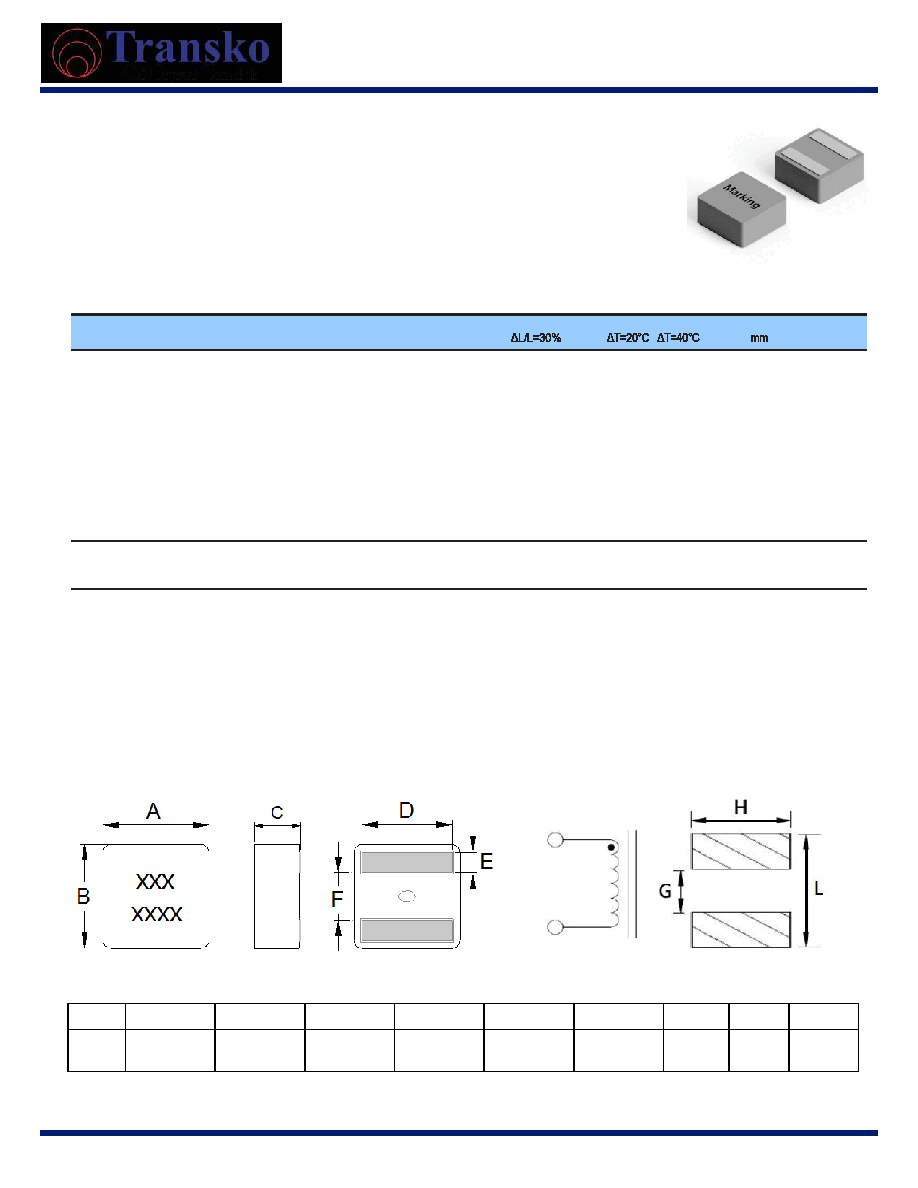

background image
TMPIT07030AF Series
3981 E. Miraloma Ave. Anaheim, CA 92806 USA
Tel: 714-528-8000
www.transko.com
sales@transko.com
Rev 1: 05-21-2020
Power Inductor SMD (6.6 X 6.4 X 3.1 mm)
FEATURES
•
Iron Powder and ferrite composite
•
Very low DCR
•
Shielded Construction
•
High current
•
Halogen Free RoHS compliant
•
Equivalent to Coilcraft XAL6030
SPECIFICATION
Inductance
DC Resistance
Isat A typ.
Irms A typ.
Dimension D
Part No.
μH
mΩ Max. (Typ.)
TMPIT07030AF-R18M
0.18±20%
1.75 (1.60)
40.0
24.0
32.0
5.30
TMPIT07030AF-R33M
0.33±20%
2.50 (2.25)
32.0
20.0
25.0
5.55
TMPIT07030AF-R56M
0.56±20%
3.31 (3.00)
29.0
17.0
22.0
5.30
TMPIT07030AF-1R0M
1.0±20%
6.05 (5.50)
23.0
13.0
18.0
5.20
TMPIT07030AF-1R2M
1.2±20%
7.40 (6.70)
22.0
12.0
16.0
5.15
TMPIT07030AF-1R8M
1.8±20%
10.2 (9.20)
18.2
10.0
14.0
5.10
TMPIT07030AF-2R2M
2.2±20%
12.2 (11.0)
15.9
7.0
10.0
5.05
TMPIT07030AF-3R3M
3.3±20%
20.8 (18.8)
12.2
6.0
8.0
5.00
TMPIT07030AF-4R5M
4.5±20%
25.3 (23.0)
10.0
5.0
7.0
5.00
•
Measurement frequency of Inductance value : 100KHz, 0.1V
DIMENSION
SOLDER PATTERN
SCHEMATIC
A
B
C
D
E
F
G
H
L
6.60 ±0.20
6.40 ±0.20
3.10 Max
See spec
table above
1.40 ±0.20
2.60 ±0.20
2.50
5.60
mm
5.60
