M2125
LINEAR INTEGRATED CIRCUIT
UNISONICTECHNOLOGIESCO.,LTD
4 of 5
www.unisonic.com.tw
QW-R105-025,B

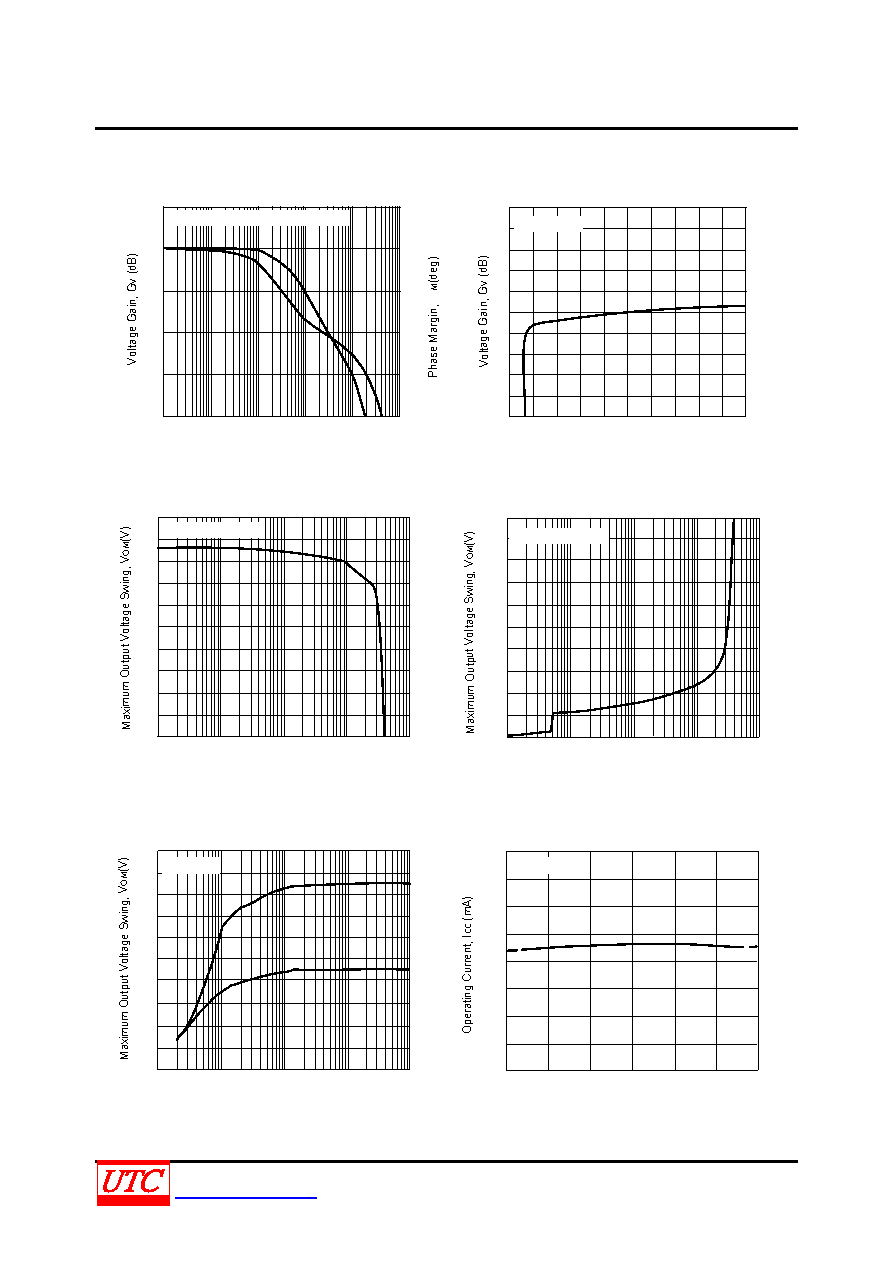

TYPICAL CHARSACTERISTICS
Voltage Gain,Phase Margin vs. Frequency
50
20
0
100
Frequency, f (Hz)
1k
10k
100k
1M
40
30
10
10M
Operating Current vs. Operating Voltage
2
0
02
4
6
8
1
10
Operating Voltage, V+/ V- (V)
225
90
0
180
135
45
V
+/V- =±2.5V,RL=2kΩ,CL=10pF
Ta=25℃
5
2
0
0.01
Output Source Current, ISOURCE(mA)
0.1
1
10
100
4
3
1
Maximum Output Voltag Swing vs. Output Source
Current
5
2
0
0.01
Output Sink Current, ISINK (mA)
0.1
1
10
100
4
3
1
Output Voltag vs. Output Sink Current
V+=5V,Ta=25℃
V+=5V,Ta=25℃
5
2
0
10
Load Resistance, RL (Ω)
100
1k
10k
100k
4
3
1
Maximum Output Voltag Swing vs. Load Resistance
1.6
0
-50
-25
0
25
50
0.8
75
Ambient Tempurature, Ta (℃)
Operating Current vs.Temperature
1.2
0.4
100
Ta=25℃
V+/V- =±2.5V
