IP101G
Data Sheet
5.10 Fiber Mode Setting
IP101G supports either TP mode or Fiber mode. User should pull high voltage on pin
RXDV/CRS_DV/FX_HEN of IP101G when reset signal is completed for Fiber mode operation. Fiber
MAU provides high voltage to pin TXER/FXSD of IP101G when Fiber MAU is active to transmit or
receive packet frames.

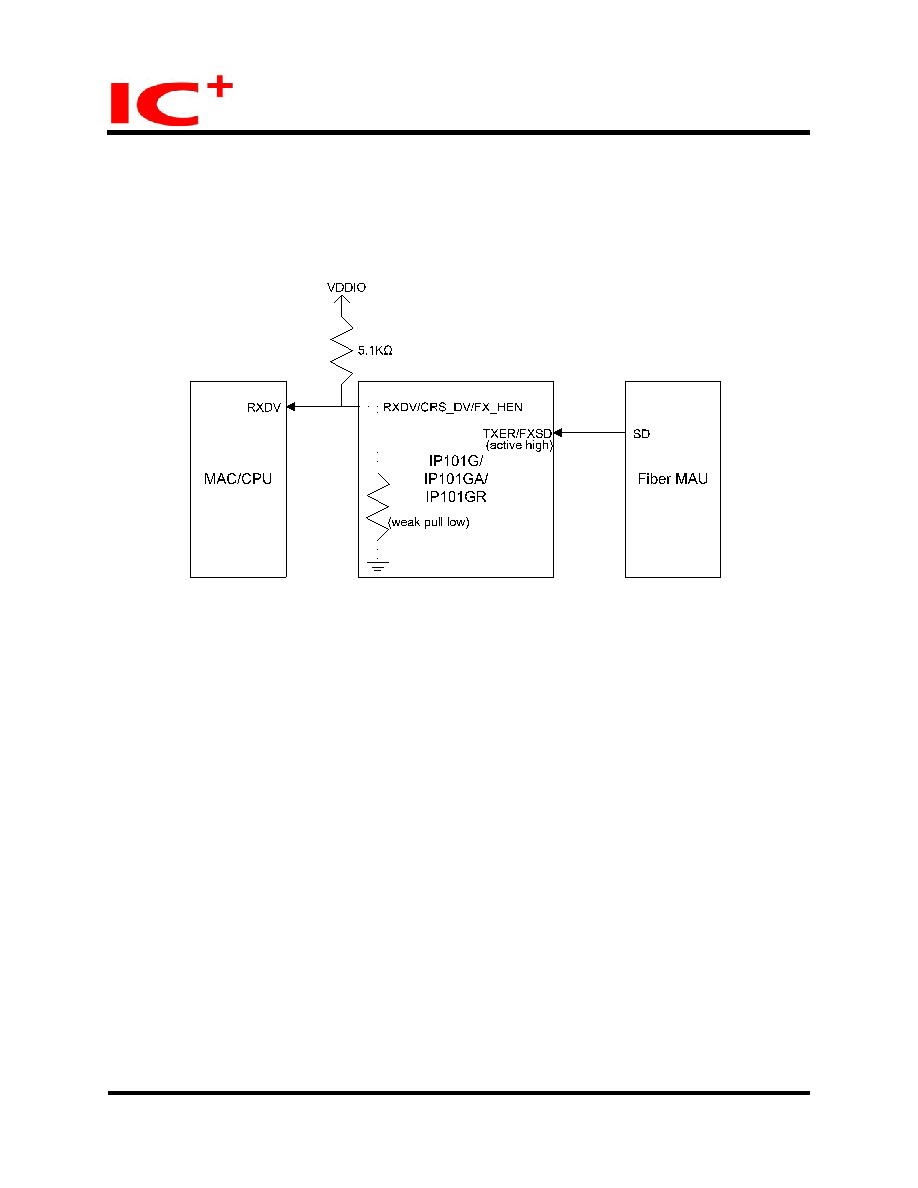

Figure 17 IP101G Fiber Mode Setting
5.11 Jumbo Frame
IP101G supports jumbo frame size up to 12K Bytes in MII mode. In the other mode RMII, IP101G
supports jumbo frame size up to 10K Bytes that is auto-negotiation at 100Mbps full duplex.
54/65
January 14, 2014
Copyright © 2011, IC Plus Corp.
IP101G-DS-R01
