IP5322 Datasheet(PDF) 9 Page - Injoinic Technology Co.,Ltd.

Part # IP5322
Description  2A charge 2.1A / 2.4A discharge integrated DCP function mobile power SOC
PDF  13 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  INJOINIC [Injoinic Technology Co.,Ltd.]
Direct Link  http://www.injoinic.com
Logo INJOINIC - Injoinic Technology Co.,Ltd.

IP5322 Datasheet(HTML) 9 Page - Injoinic Technology Co.,Ltd.

Back Button IP5322 Datasheet HTML 5Page - Injoinic Technology Co.,Ltd. IP5322 Datasheet HTML 6Page - Injoinic Technology Co.,Ltd. IP5322 Datasheet HTML 7Page - Injoinic Technology Co.,Ltd. IP5322 Datasheet HTML 8Page - Injoinic Technology Co.,Ltd. IP5322 Datasheet HTML 9Page - Injoinic Technology Co.,Ltd. IP5322 Datasheet HTML 10Page - Injoinic Technology Co.,Ltd. IP5322 Datasheet HTML 11Page - Injoinic Technology Co.,Ltd. IP5322 Datasheet HTML 12Page - Injoinic Technology Co.,Ltd. IP5322 Datasheet HTML 13Page - Injoinic Technology Co.,Ltd.
Zoom Inzoom in Zoom Outzoom out
 9 / 13 page

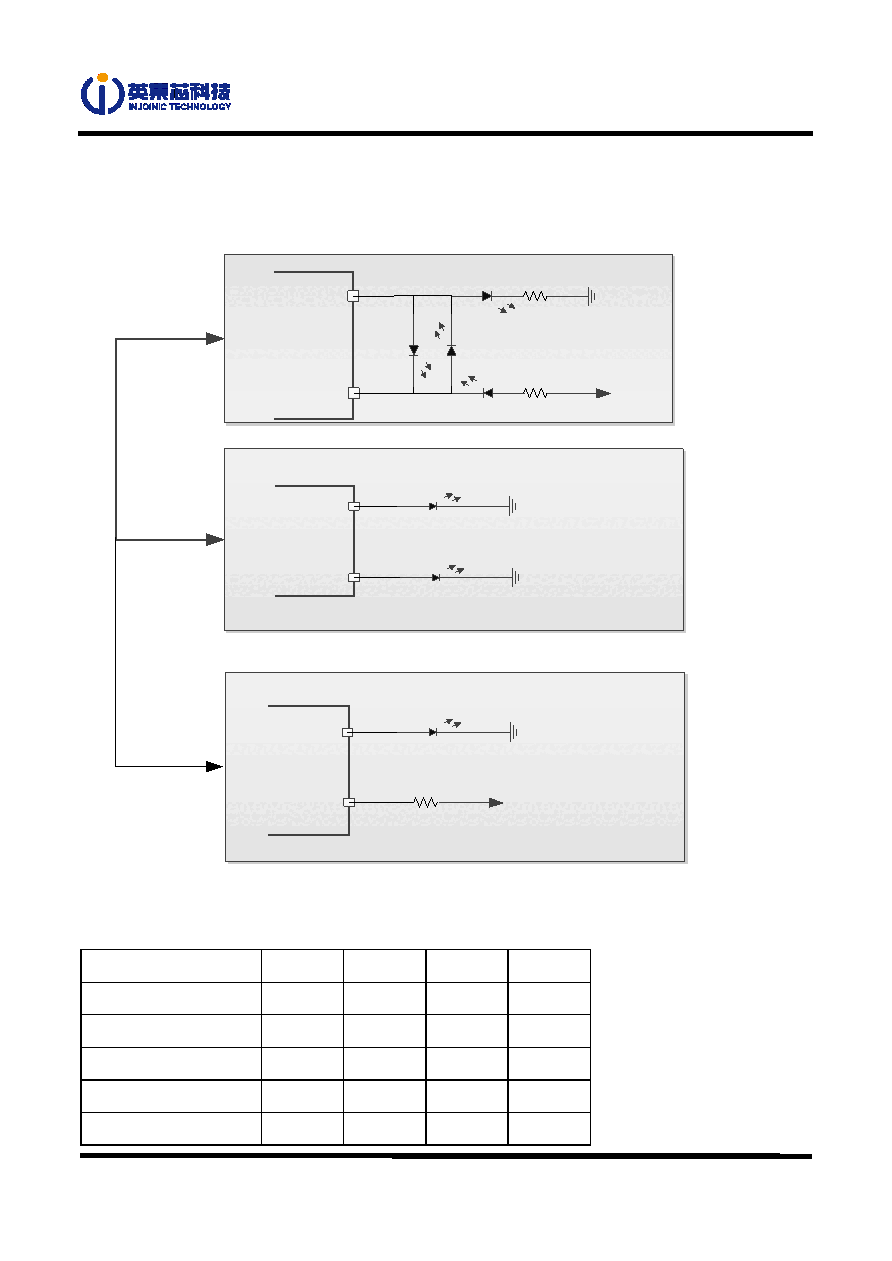

background image
IP5407
V1.31
http://www.injoinic.com/
9 / 13
Copyright © 2019, Injoinic Corp.
Light display mode
Four lights
Two lights
One light
BAT
D1
LED1
LED2
LED1
LED2
LED2
LED1
D2
D1
D1
1K
D2
BAT
D3
D4
51R
51R
IP5407
IP5407_2D1D
IP5407_2D1D
Figure 6 LED display mode
4 light mode (IP5407 standard only supports 4 lights)
Discharge
battery capacity C(%)
D1
D2
D3
D4
C≥75%
ON
ON
ON
ON
50%≤C＜75%
ON
ON
ON
OFF
25%≤C＜50%
ON
ON
OFF
OFF
3%≤C＜25%
ON
OFF
OFF
OFF
0%＜C＜3%
1Hz Flash
OFF
OFF
OFF
