AD8354

Rev. C | Page 9 of 16

FREQUENCY (MHz)

4.0

500

1000

NF AT 3.3V

NF AT 3.0V

NF AT 2.7V

4.2

4.4

4.6

4.8

5.0

5.2

5.4

5.6

5.8

6.0

2000

2500

1500

3000

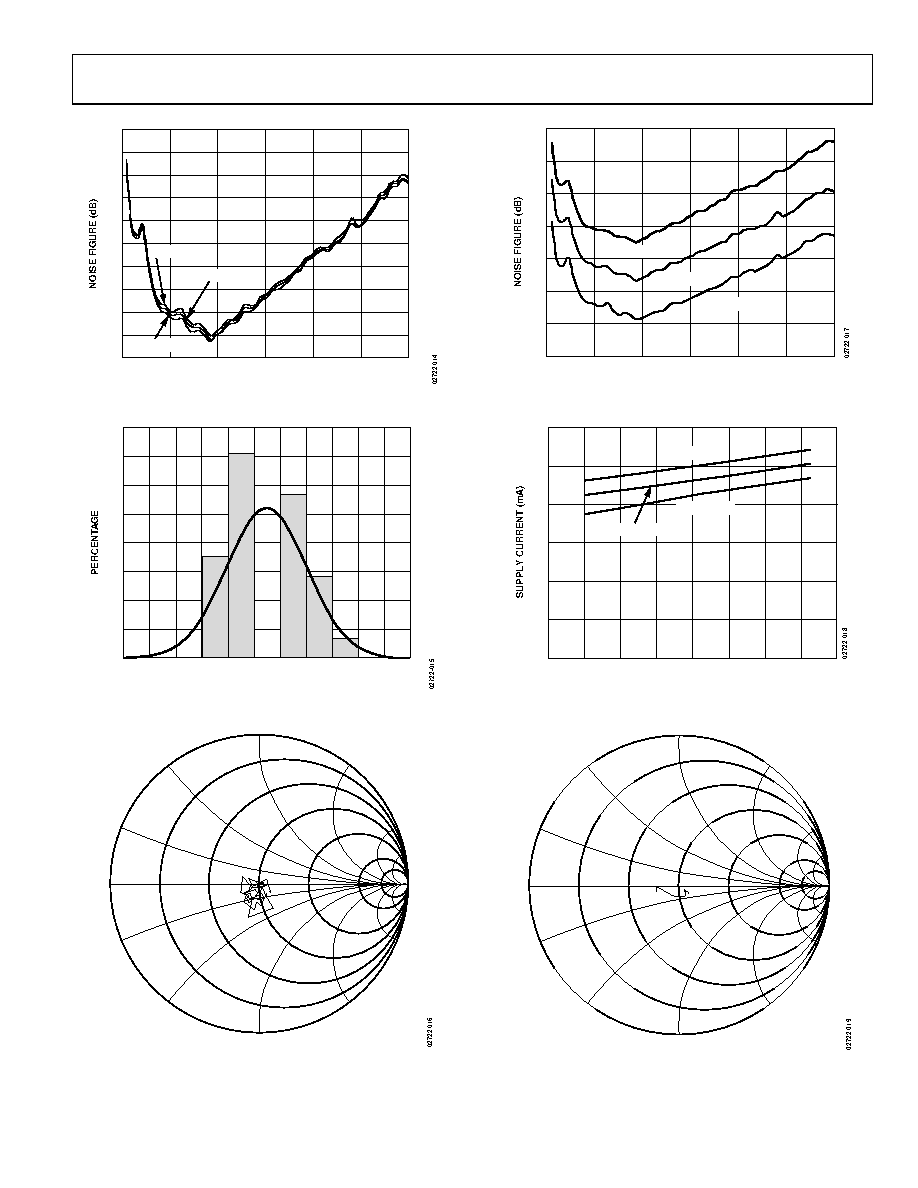

Figure 15. Noise Figure vs. Frequency, VS = 2.7 V, 3 V, and 3.3 V, TA = 25°C

NOISE FIGURE (dB)

4.70

4.75 4.80 4.85 4.90 4.95 5.00 5.05 5.10 5.15 5.20 5.25

Figure 16. Distribution of Noise Figure, VS = 3 V, TA = 25°C, f = 2.2 GHz

180

150

120

330

300

270

240

210

Figure 17. S11 vs. Frequency, VS = 5 V, TA = 25°C, 100 MHz ≤ f ≤ 3 GHz

FREQUENCY (MHz)

3.0

500

1500

3.5

4.0

4.5

5.0

5.5

6.5

6.0

1000

2500

2000

3000

NF AT +85°C

NF AT +25°C

NF AT –40°C

Figure 18. Noise Figure vs. Frequency, VS = 3 V, TA = −40°C, +25°C, and +85°C

TEMPERATURE (°C)

–60

–40

–20

100

IS AT 3.0V

IS AT 2.7V

IS AT 3.3V

Figure 19. Supply Current vs. Temperature, VS = 2.7 V, 3 V, and 3.3 V

180

150

120

330

300

270

240

210

Figure 20. S22 vs. Frequency, VS = 5 V, TA = 25°C, 100 MHz ≤ f ≤ 3 GHz
