TYPICAL PERFORMANCE CHARACTERISTICS

180

150

120

330

300

270

240

210

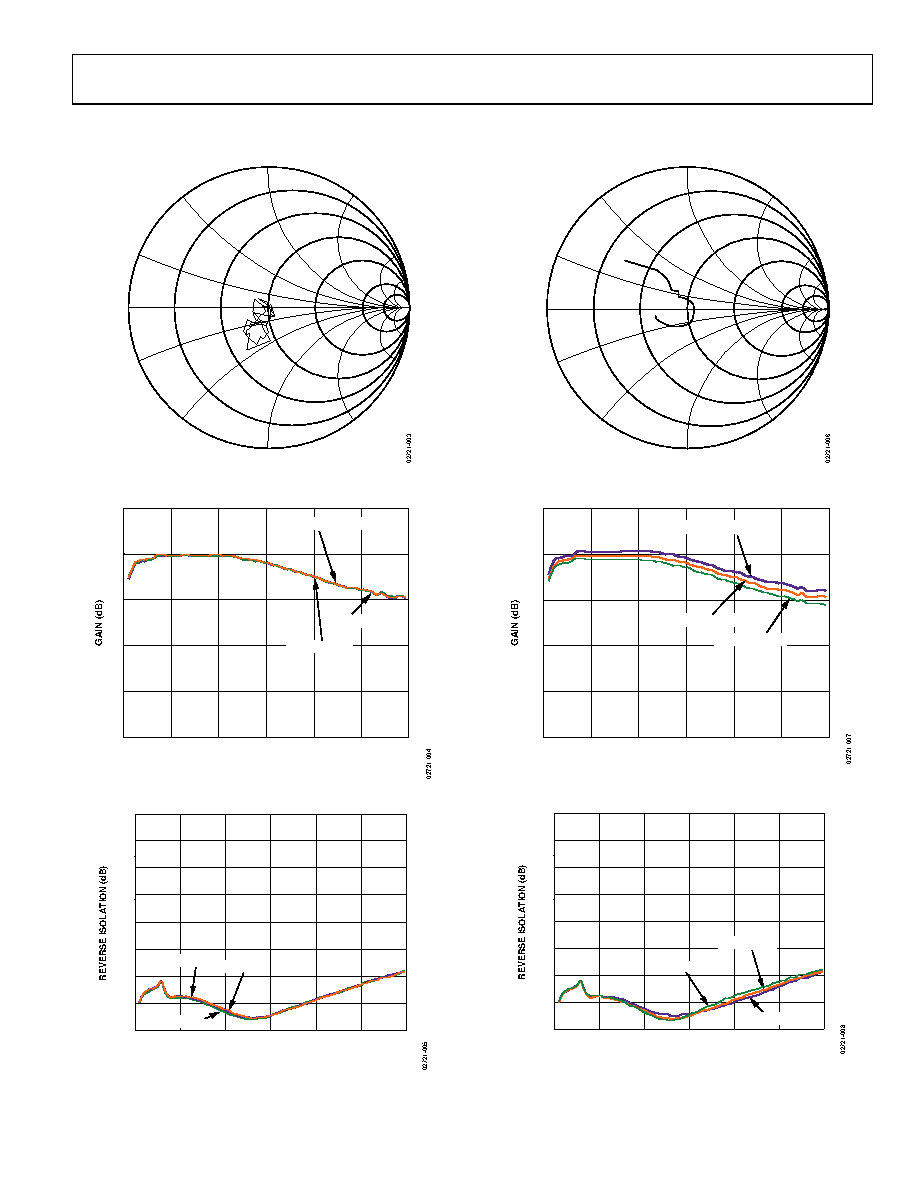

Figure 3. S11 vs. Frequency, VS = 3 V, TA = 25°C, dc ≤ f ≤ 3 GHz

500

1000

1500

2000

3000

2500

GAIN AT 3.3V

GAIN AT 2.7V

GAIN AT 3.0V

FREQUENCY (MHz)

Figure 4. Gain vs. Frequency, VS = 2.7 V, 3 V, and 3.3 V, TA = 25°C

500

1000

1500

2000

3000

2500

FREQUENCY (MHz)

S12 AT 3.0V

–20

–30

–10

–15

–25

–5

–35

–40

S12 AT 2.7V

S12 AT 3.3V

Figure 5. Reverse Isolation vs. Frequency, VS = 2.7 V, 3 V, and 3.3 V, TA = 25°C

180

150

120

330

300

270

240

210

Figure 6. S22 vs. Frequency, VS = 3 V, TA = 25°C, dc ≤ f ≤ 3 GHz

500

1000

1500

2000

3000

2500

FREQUENCY (MHz)

GAIN AT +85°C

GAIN AT +25°C

GAIN AT –40°C

Figure 7. Gain vs. Frequency, VS = 3 V, TA = −40°C, +25°C, and +85°C

500

1000

1500

2000

3000

2500

FREQUENCY (MHz)

S12 AT –40°C

S12 AT +25°C

–20

–30

–10

–15

–25

–5

–35

–40

S12 AT +85°C

Figure 8. Reverse Isolation vs. Frequency, VS = 3 V, TA = −40°C, +25°C, and +85°C
