Metalized Polypropylene Capacitor

MPPB: Box Type, Low Loss at High Frequency

14-JUN-2023

Page 8 of 9

RFE International • Tel (949) 833-1988 • Fax (949) 833-1788 • E-mail sales@rfeinc.com

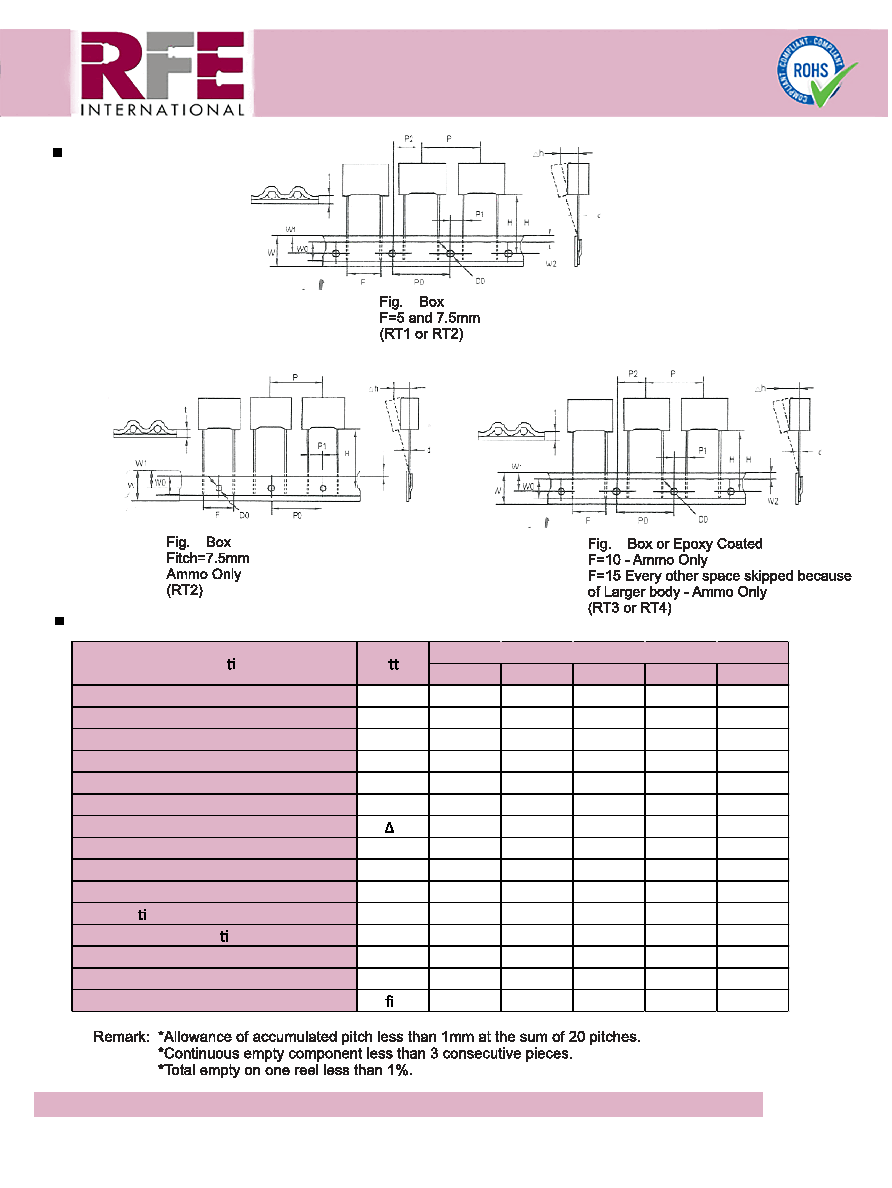

RADIAL TAPING

SPECIFICATIONS

RT1

RT2

RT3

RT4

Tol.

Lead Wire Diameter

d

0.5/0.6

0.5/0.6

0.6

0.6/0.8

±0.05

Tape Pitch

P

12.7

12.7

12.7

25.4

±1

Feed Hole Pitch

P0

12.7

12.7

12.7

12.7

±0.2

Centering of the Lead Wire

P1

3.85

2.6/3.75

7.7

5.2

±0.7

Centering of the Body

P2

6.35

6.35

12.7

12.7

±1.3

Lead Spacing

F

5

7.5

10

15

0

Component Alignment

h

0

0

0

0

±2

Height of Component from Tape Center

H

18.5

18.5

18.5

18.5

±0.5

Carrier Tape Width

W

18

18

18

18

+1;-0.5

Hold Down Tape Width

W0

6

6

9

10

Min

Hole Posi on

W1

9

9

9

9

±0.5

Hold Down Tape Posi on

W2

3

3

3

3

Max

Feed Hole Diameter

Do

4

4

4

4

±0.2

Tape Thickness

t

0.5

0.5

0.5

0.5

±0.2

Figure

g

1

1 or 2

3

3

Le er

Descrip on

Dimension (mm)

1

2

3
