6HDD15PBY99R40X Datasheet(PDF) 1 Page - CONEC Elektronische Bauelemente GmbH |
|
|
|||||||||||||||||||||||||||||
6HDD15PBY99R40X Datasheet(HTML) 1 Page - CONEC Elektronische Bauelemente GmbH |
|
|

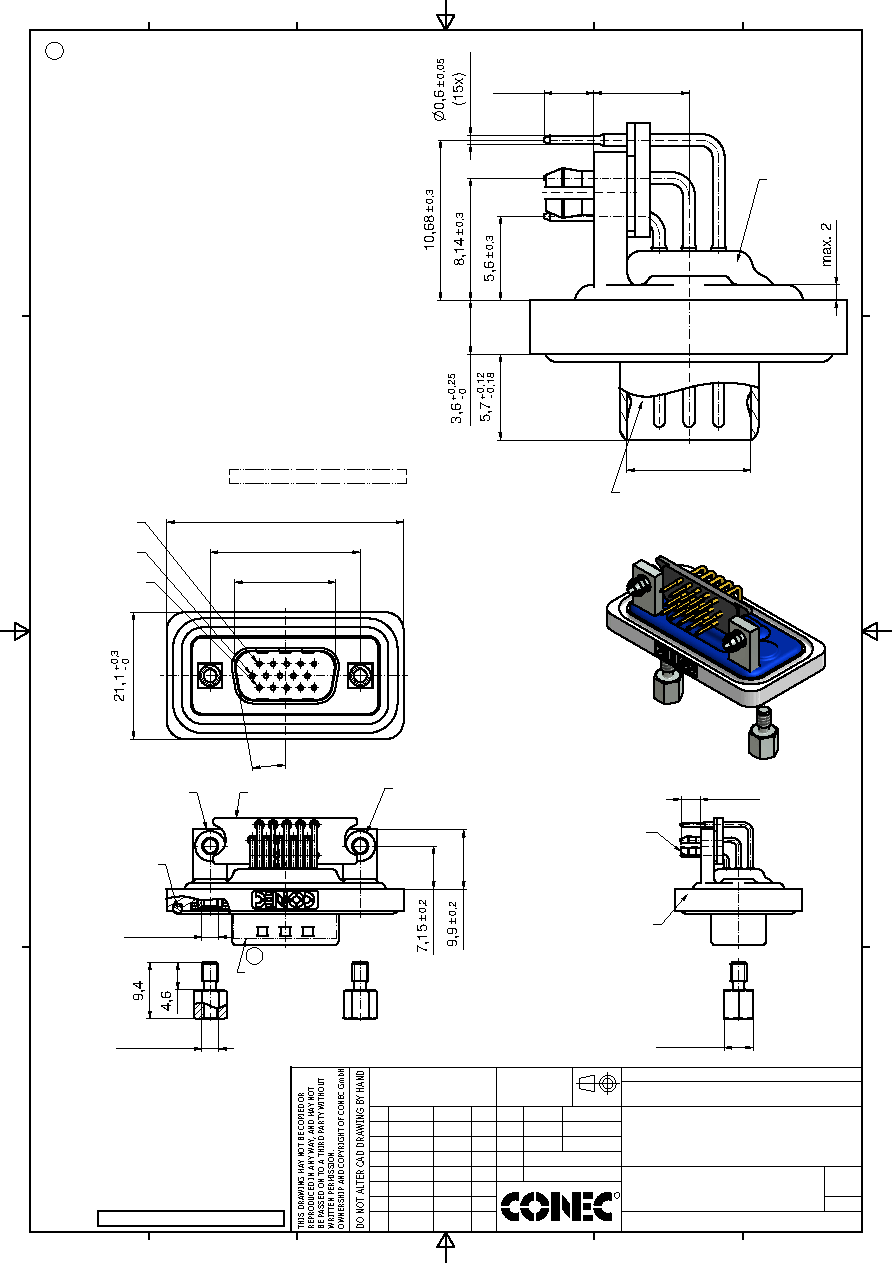

1 / 2 page  A A A A A A A A B B B B B B B B C C C C C C C C D D D D D D D D E E E E E E E E F F F F F F F F A A A A A A A A B B B B B B B B C C C C C C C C D D D D D D D D dim. in mm R R R R date drawn d-old norm appd. tolerance material: title: dwg no: DIN- sh: part no: name date name description rev. scale: 15K1A960 A3 1 D-SUB HD MALE 90° SEE NOTES Gitinow 02.11.11 02.11.11 Fischer 15pos. SOLDER PIN ANGLED threaded insert, metal bracked, fixing-plate, snap 18K1A464 2:1 (5:1) 6HDD15P Y99R40X a Original 2 x b Ä4784 11.06.13 HS 6HDD15PoY99R40X CONEC ABC NOTES: 1. FOR WAVESOLDERING ( SOLDER BATH TEMPERATURE 240°C FOR 5 SEC. / AND SOLDER PREHEAT 120°C FOR 120 SEC. ) 2. METALSHELLS: COPPER ALLOY; min. 315µin TIN over 40-80µin NICKEL 3. INSULATORS: PBT GF UL 94 V-0; BLACK 4. CONTACTS: COPPER ALLOY; PLATING (SEE PART NO.): o PLEASE ADD A for GOLD FLASH over NICKEL (PREFERRED TYPE) o PLEASE ADD B for 20µin HARD GOLD over min. 50µin NICKEL o PLEASE ADD C for 30µin HARD GOLD over min. 50µin NICKEL 5. METAL BRACKETS: ZINC DIE CAST; 300µin COPPER/ 40-120µin NICKEL/ 120-200µin TIN 6. THREADED INSERTS: COPPER ALLOY; min. 200µin TIN over 80µin NICKEL 7. PCB-SNAPS: COPPER ALLOY; min. 200µin TIN over 80µin NICKEL PCB-HOLE: n3,1±0,1; PCB THICKNESS 1,6mm 8. COLLARS: COPPER ALLOY; NICKEL PLATED 9. HEXLOCKING SCREWS: STAINLESS STEEL 10. FRAME: ZINC DIE CAST; NICKEL PLATED 11. FIXING PLATE: PBT GF UL 94 V-0; BLACK 12. O-RING: SILICON; BLUE 13. RUBBER GASKET: TPE 14. SEALING COMPOUND: PUR; BLUE 15. P.C.B. HOLE DRILLINGS AND RECOMMENDED PANEL CUT-OUT ON SHEET 2 16. RECOMMENDED TORQUE FOR MOUNTING SCREW 35Ncm (3.1 in.LB) / max.40Ncm (3.5 in.LB) 17. CONNECTOR IS PART MARKED: 6HDD15PoY99R40X CONEC ABC (see note 4) b b 16,84 - 0,05 0,2 + 39,4 - 0 0,3 + O-RING SEE NOTE 17 SEE NOTE 10 8,26 - 0,03 0,22 + ( 5 : 1 ) SEALING COMPOUND RUBBER GASKET PLACED ON TOP SURFACE OF MALE INSULATOR 10° POS. 11 POS. 6 4,8 SW 4-40 UNC PRESS FOR FIXING ON PCB METAL BRACKET 3,3 - 0 0,5 + 6,35 `0,3 PCB-SNAP FIXING PLATE 25 - 0,13 0,12 + 3,2 `0,2 POS. 1 4-40 UNC AT ALL TIMES WATER RESISTANT CONNECTORS NOT IN USE SHOULD BE COVERED WITH A CONEC WATER RESISTANT CAP OR WATERTIGHT HOOD. Directive 2002/95/EC RoHS compliant o (see note 4) |
