6HDD26PBY99R30X Datasheet(PDF) 1 Page - CONEC Elektronische Bauelemente GmbH |
|
|
|||||||||||||||||||||||||||||
6HDD26PBY99R30X Datasheet(HTML) 1 Page - CONEC Elektronische Bauelemente GmbH |
|
|

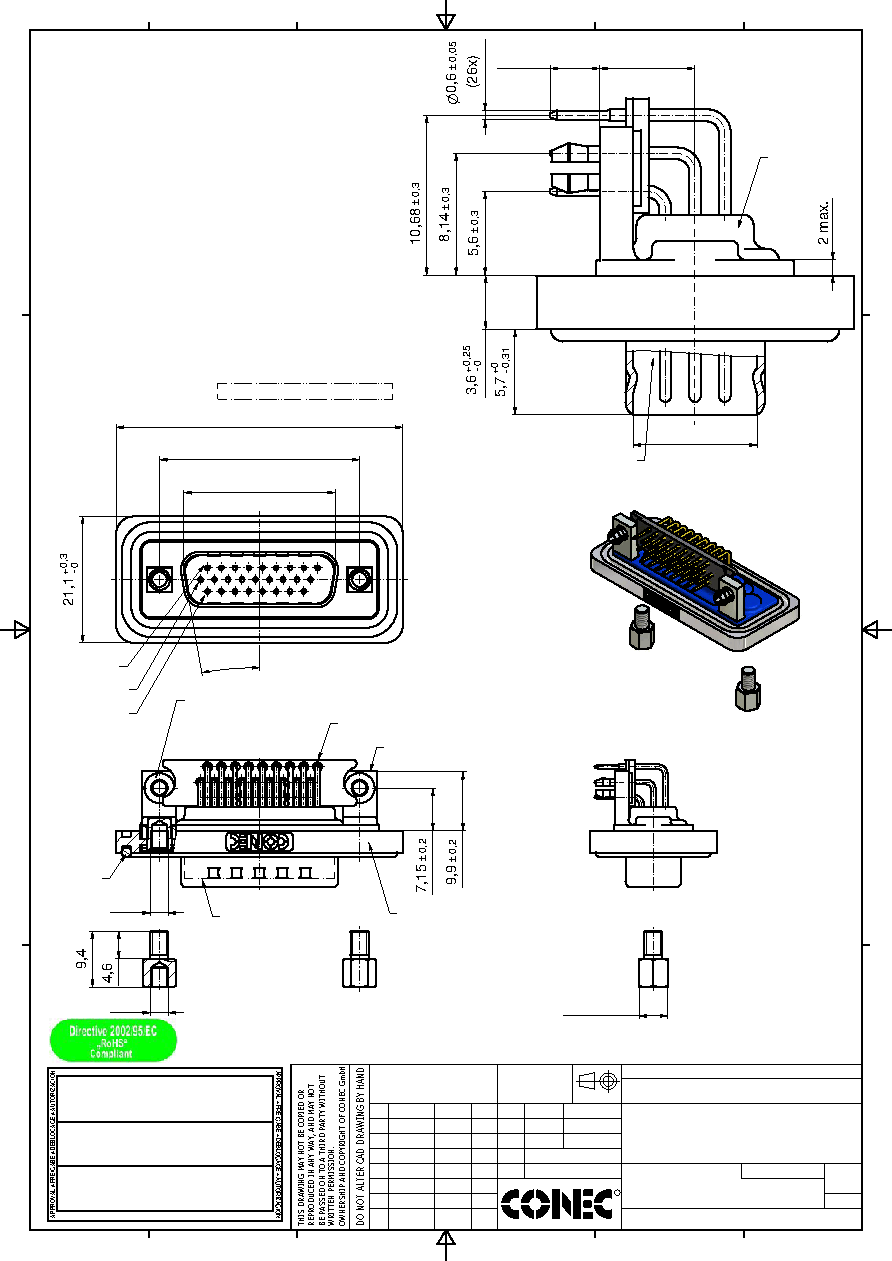

1 / 2 page  A A B B C C D D E E F F A A B B C C D D dim. in mm R date drawn Inventor 10 d-old norm appd. tolerance material: title: dwg no: DIN- sh: part no: name date name description rev. scale: CUSTOMER APPROVAL DATE: NAME: TITLE: COMPANY NAME: APPROVAL # FREIGABE # DEBLOCAGE # AUTORIZACION # APPROVAL APPROVAL # FREIGABE # DEBLOCAGE # AUTORIZACION # APPROVAL 15K1A576 A3 1 D-SUB HD MALE 90 ° SEE NOTES Henneboel 02.03.2010 02.03.2010 Fischer 26pos. SOLDER PIN ANGLED threaded insert, metal bracket, fixing plate, snap 2:1 (5:1) 6HDD26PAY99R30X a Origin 6HDD26PAY99R30X CONEC ABC NOTES: 1. FOR WAVESOLDERING ( SOLDER BATH TEMPERATURE 240 °C FOR 5 SEC. / AND SOLDER PREHEAT 120 °C FOR 120 SEC. 2. METALSHELLS: COPPER ALLOY; min. 315 µin TIN over 40-80µin NICKEL 3. INSULATORS: PBT GF UL 94 V-0; BLACK 4. SIGNAL CONTACTS: COPPER ALLOY PLATING: 8 µin HARD GOLD over min. 50µin NICKEL 5. METAL BRACKETS: ZINC DIE CAST; 300 µin COPPER/40-120µin NICKEL/ 120-200 µin TIN 6. THREADED INSERTS: COPPER ALLOY; min. 200 µin TIN over 80µin NICKEL 7. PCB-SNAPS: COPPER ALLOY; min. 200 µin TIN over 80µin NICKEL PCB-HOLE: n3,1`0,1mm; PCB-THICKNESS: 1,6mm 8. HEXLOCKING SCREWS: STAINLESS STEEL 9. FRAME: ZINC DIE CAST; NICKEL PLATED 10. FIXING PLATE: PBT GF UL 94 V-0; BLACK 11. O-RING: SILICON; BLUE 12. RUBBER GASKET: TPE 13. P.C.B. HOLE DRILLINGS AND RECOMMENDED PANEL CUT-OUT ON SHEET 2 14. RECOMMENDED TORQUE FOR MOUNTING SCREW 35Ncm (3.1 in.LB) / max.40Ncm (3.5 in.LB) 15. CONNECTOR IS PART MARKED: 6HDD26PAY99R30X CONEC ABC 25,17 - 0,05 0,2 + 8,26 - 0,03 0,22 + 6,35 `0,3 O-RING AT ALL TIMES WATER RESISTANT CONNECTORS NOT IN USE SHOULD BE COVERED WITH A CONEC WATER RESISTANT CAP OR WATERTIGHT HOOD SEE NOTE 15 SEALING COMPOUND RUBBER GASKET PLACED ON TOP SURFACE OF MALE INSULATOR FIXING PLATE 3,3 - 0 0,5 + POS. 1 POS. 10 POS. 19 SEE NOTE 9 33,3 - 0,1 0,15 + 47,7 - 0 0,3 + 10 ° 4,75 SW 3 M PRESS FOR FIXING ON PCB METAL BRACKET 3 M |
