1

1

2

2

3

3

4

4

5

5

6

6

A

A

B

B

C

C

D

D

dim. in mm

R

R

R

R

date

drawn

d-old

norm

appd.

tolerance

material:

title:

dwg no:

DIN-

sh:

part no:

name

date

name

description

rev.

scale:

15K1A1364

A3

1/2

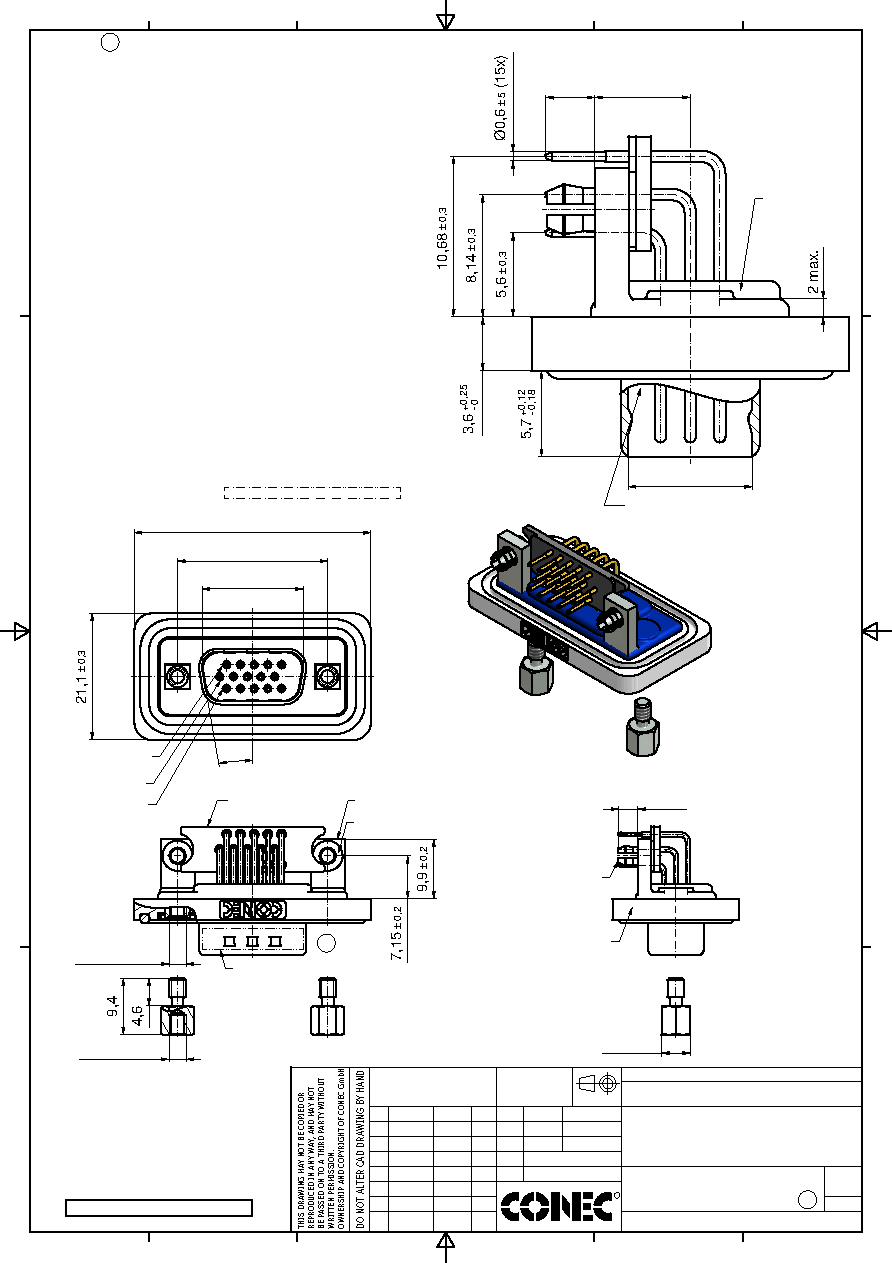

D-SUB HD C-FILTER MALE 90°

SEE NOTES

M.Heinrich

26.08.13

27.08.13

Fischer

15pos. SOLDER PIN ANGLED

threaded insert, metal bracket, snap, fixing plate

18K1A454

2:1 (5:1)

6HDF15P Y04R40X

a

Original

3 x b

Ä4897

26.08.2013 K.H.

NOTES:

1. FOR WAVESOLDERING ( SOLDER BATH TEMPERATURE 240°C

FOR 5 SEC. / AND SOLDER PREHEAT 100°C FOR 30 SEC. )

2. METALSHELLS: COPPER ALLOY; min. 315µin TIN over 40-80µin NICKEL

3. INSULATORS: HIGH TEMPERATURE PLASTIC UL 94 V-0; BLACK

4. SIGNAL CONTACTS: COPPER ALLOY; PLATING (SEE PART NO.):

o PLEASE ADD A for GOLD FLASH over NICKEL (PREFERRED TYPE)

o PLEASE ADD B for 20µin HARD GOLD over min. 50µin NICKEL

o PLEASE ADD C for 30µin HARD GOLD over min. 50µin NICKEL

5. METAL BRACKETS: ZINC DIE CAST; 300µin COPPER/40-120µin NICKEL/

120-200µin TIN

6. THREADED INSERTS: COPPER ALLOY;

min. 200µin TIN over 80µin NICKEL

7. PCB-SNAPS: COPPER ALLOY; min. 200µin TIN over 80µin NICKEL

PCB-HOLE: n3.1±0.1; PCB THICKNESS 1.6mm

8. COLLARS: COPPER ALLOY; NICKEL PLATED

9. HEXLOCKING SCREWS: STAINLESS STEEL

10. FRAME: ZINC DIE CAST; NICKEL PLATED

11. FIXING PLATE: PBT GF UL 94 V-0; BLACK

12. O-RING: SILICON; BLUE

13. RUBBER GASKET: TPE

14. SEALING COMPOUND: PUR; BLUE

15. CAPACITANCE: 830pF±20%

16. DIELECTRIC WITHSTANDING VOLTAGE: 300 VDC

17. P.C.B. HOLE DRILLINGS AND

RECOMMENDED PANEL CUT-OUT ON SHEET 2

18. RECOMMENDED TORQUE FOR MOUNTING SCREW 35Ncm (3.1 in.LB) / max.40Ncm (3.5 in.LB)

19. CONNECTOR IS PART MARKED: 6HDF15PoY04R40X CONEC ABC (see note 4)

FILTER IS TOTALLY GUARDED AGAINST HUMIDITY.

WATER COULD PENETRATE INTO THE MATING AREA.

AT ALL TIMES WATER RESISTANT CONNECTORS NOT

IN USE SHOULD BE COVERED

WITH A CONEC WATER RESISTANT

CAP OR WATER TIGHT HOOD.

3,25 -0

0,5

+

6,35 `0,3

8,26 -0,03

0,22

+

16,84 -0,05

0,2

+

10°

25 - 0,13

0,12

+

39,4 -0

0,3

+

SEALING

COMPOUND

RUBBER GASKET

PLACED ON TOP SURFACE

OF MALE INSULATOR

POS.1

POS.11

POS.6

FIXING PLATE

PRESS FOR FIXING ON PCB

6HDF15PoY04R40X

CONEC ABC

SEE NOTE 10

SEE NOTE 19

4-40 UNC

PCB SNAP

Directive 2002/95/EC RoHS compliant

4,8

SW

( 5 : 1 )

4-40 UNC

METAL BRACKET

3,2 `0,2

b

b

b

o

(see note 4)
