6HDF44P Y04R40X CONEC ABC

o

FILTER IS TOTALLY GUARDED AGAINST HUMIDITY.

WATER COULD PENETRATE INTO THE MATING AREA.

AT ALL TIMES WATER RESISTANT CONNECTORS NOT

IN USE SHOULD BE COVERED

WITH A CONEC WATER RESISTANT

CAP OR WATER TIGHT HOOD.

dim. in mm

R

R

R

R

date

drawn

d-old

norm

appd.

tolerance

material:

title:

dwg no:

DIN-

sh:

part no:

name

date

name

description

rev.

scale:

15K1A1365

A3

1/2

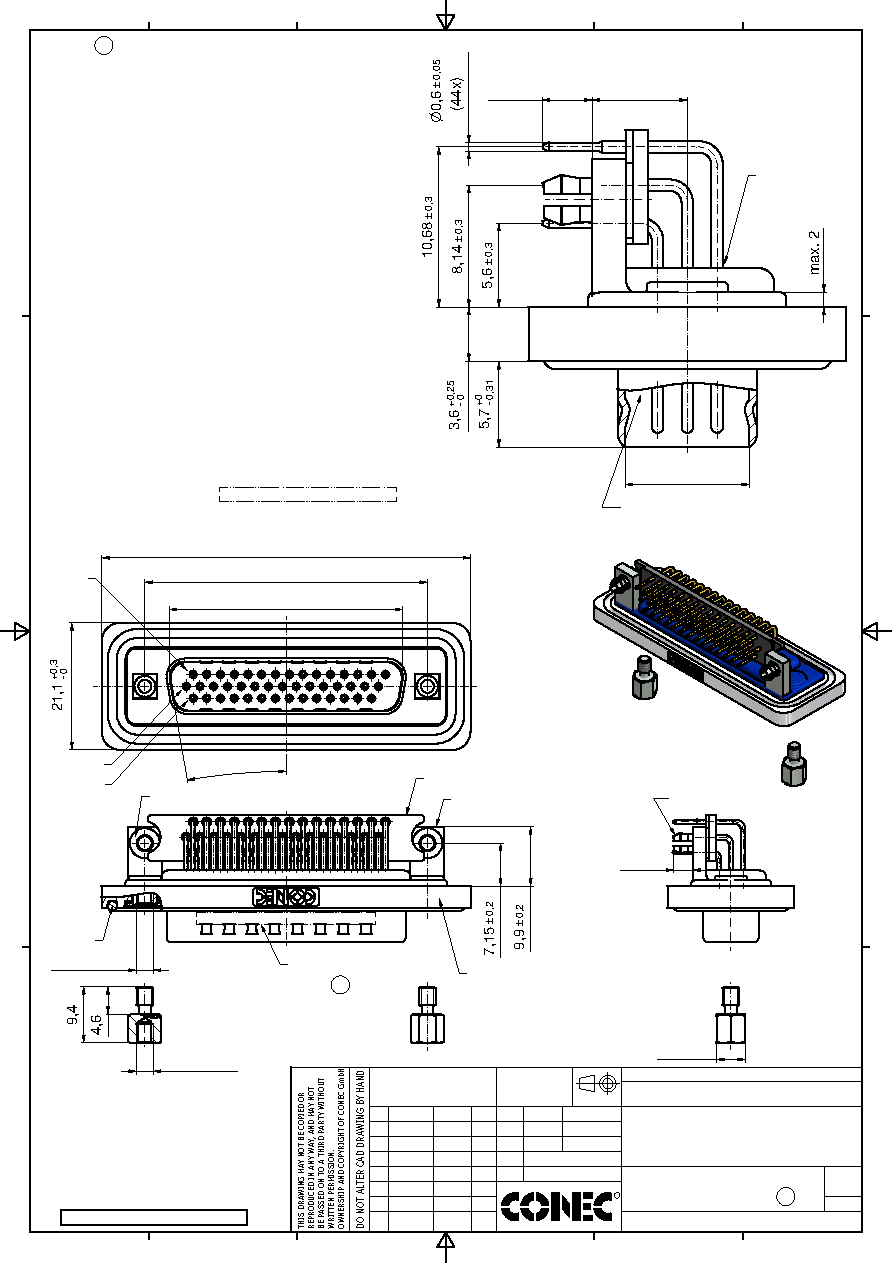

D-SUB HD C-FILTER MALE 90°

SEE NOTES

Henneboel

23.08.13

27.08.13

Fischer

44pos. SOLDER PIN ANGLED

threaded insert,metal bracket,fixing-plate,hex bolt

18K1A454

2:1 (5:1)

6HDF44P Y04R40X

a

Original

3 x b

Ä4897

23.08.2013 K.H

NOTES:

1. FOR WAVESOLDERING ( SOLDER BATH TEMPERATURE 240°C

FOR 5 SEC. / AND SOLDER PREHEAT 100°C FOR 30 SEC. )

2. METALSHELLS: COPPER ALLOY; min. 315µin TIN over 40-80µin NICKEL

3. INSULATORS: HIGH TEMPERATURE PLASTIC UL 94 V-0; BLACK

4. SIGNAL CONTACTS: COPPER ALLOY; PLATING (SEE PART NO.):

o PLEASE ADD A for GOLD FLASH over NICKEL (PREFERRED TYPE)

o PLEASE ADD B for 20µin HARD GOLD over min. 50µin NICKEL

o PLEASE ADD C for 30µin HARD GOLD over min. 50µin NICKEL

5. METAL BRACKETS: ZINC DIE CAST; 300µin COPPER/40-120µin NICKEL/

120-200µin TIN

6. THREADED INSERTS: COPPER ALLOY;

min. 200µin TIN over 80µin NICKEL

7. PCB-SNAPS: COPPER ALLOY; min. 200µin TIN over 80µin NICKEL

PCB-HOLE: n3.1±0.1; PCB THICKNESS 1.6mm

8. COLLARS: COPPER ALLOY; NICKEL PLATED

9. HEXLOCKING SCREWS: STAINLESS STEEL

10. FRAME: ZINC DIE CAST; NICKEL PLATED

11. FIXING PLATE: PBT GF UL 94 V-0; BLACK

12. O-RING: SILICON; BLUE

13. RUBBER GASKET: TPE

14. SEALING COMPOUND: PUR; BLUE

15. CAPACITANCE: 830pF±20%

16. DIELECTRIC WITHSTANDING VOLTAGE: 300 VDC

17. P.C.B. HOLE DRILLINGS AND

RECOMMENDED PANEL CUT-OUT ON SHEET 2

18. RECOMMENDED TORQUE FOR MOUNTING SCREW 35Ncm (3.1 in.LB) / max.40Ncm (3.5 in.LB)

19. CONNECTOR IS PART MARKED: 6HDF44PoY04R40X CONEC ABC (see note 4)

38,86 -0,02

0,23

+

FIXING PLATE

8,26 -0,03

0,22

+

6,35 `0,3

3,3 -0

0,5

+

47,04 `0,13

O-RING

SEE NOTE 19

SEALING

COMPOUND

RUBBER GASKET

PLACED ON TOP SURFACE

OF MALE INSULATOR

SEE NOTE 10

METAL BRACKET

Pos. 1

Pos. 16

Pos. 31

4-40 UNC

4-40 UNC

4,8

SW

( 5 : 1 )

Directive 2002/95/EC RoHS compliant

o

(see note 4)

b

PRESS FOR FIXING ON PCB

3,2 `0,2

PCB-SNAP

b

b

61,4 -0

0,3

+

10°
