6HDF62PoY04R40X CONEC ABC

dim. in mm

R

R

R

R

date

drawn

d-old

norm

appd.

tolerance

material:

title:

dwg no:

DIN-

sh:

part no:

name

date

name

description

rev.

scale:

15K1A1366

A3

1/2

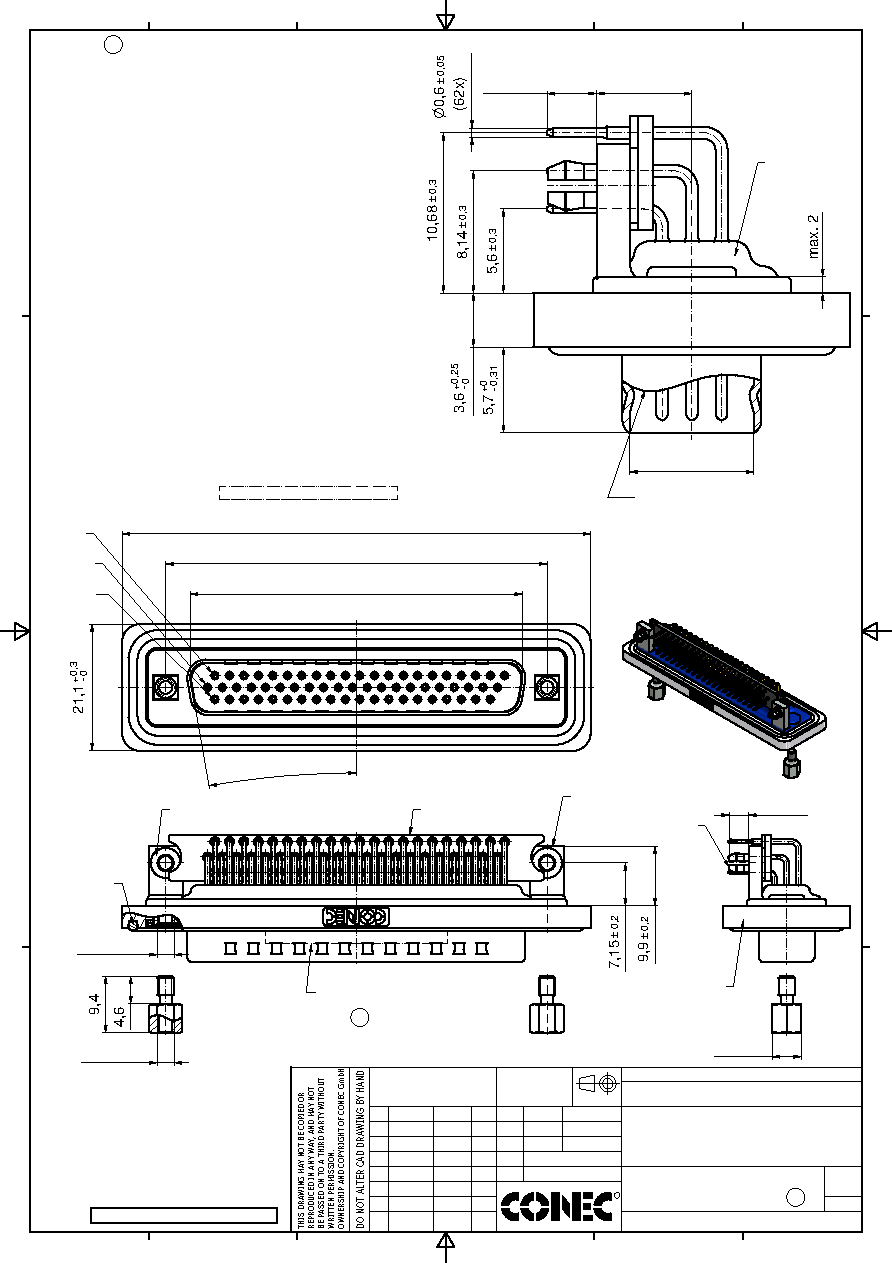

D-SUB HD C-FILTER MALE 90°

SEE NOTES

Henneboel

23.08.13

27.08.13

Fischer

62pos. SOLDER PIN ANGLED

threaded insert, metal bracket, snap, fixing plate, hexl. screw

18K1A454

2:1 (5:1)

6HDF62P Y04R40X

a

Original

3 x b

Ä4897

23.08.2013 K.H.

b

FILTER IS TOTALLY GUARDED AGAINST HUMIDITY.

WATER COULD PENETRATE INTO THE MATING AREA.

AT ALL TIMES WATER RESISTANT CONNECTORS NOT

IN USE SHOULD BE COVERED

WITH A CONEC WATER RESISTANT

CAP OR WATER TIGHT HOOD.

NOTES:

1. FOR WAVESOLDERING ( SOLDER BATH TEMPERATURE 240°C

FOR 5 SEC. / AND SOLDER PREHEAT 100°C FOR 30 SEC. )

2. METALSHELLS: COPPER ALLOY; min. 315µin TIN over 40-80µin NICKEL

3. INSULATORS: HIGH TEMPERATURE PLASTIC UL 94 V-0; BLACK

4. SIGNAL CONTACTS: COPPER ALLOY; PLATING (SEE PART NO.):

o PLEASE ADD A for GOLD FLASH over NICKEL (PREFERRED TYPE)

o PLEASE ADD B for 20µin HARD GOLD over min. 50µin NICKEL

o PLEASE ADD C for 30µin HARD GOLD over min. 50µin NICKEL

5. METAL BRACKETS: ZINC DIE CAST; 300µin COPPER/40-120µin NICKEL/

120-200µin TIN

6. THREADED INSERTS: COPPER ALLOY;

min. 200µin TIN over 80µin NICKEL

7. PCB-SNAPS: COPPER ALLOY; min. 200µin TIN over 80µin NICKEL

PCB-HOLE: n3.1±0.1; PCB THICKNESS 1.6mm

8. COLLARS: COPPER ALLOY; NICKEL PLATED

9. HEXLOCKING SCREWS: STAINLESS STEEL

10. FRAME: ZINC DIE CAST; NICKEL PLATED

11. FIXING PLATE: PBT GF UL 94 V-0; BLACK

12. O-RING: SILICON; BLUE

13. RUBBER GASKET: TPE

14. SEALING COMPOUND: PUR; BLUE

15. CAPACITANCE: 830pF±20%

16. DIELECTRIC WITHSTANDING VOLTAGE: 300 VDC

17. P.C.B. HOLE DRILLINGS AND

RECOMMENDED PANEL CUT-OUT ON SHEET 2

18. RECOMMENDED TORQUE FOR MOUNTING SCREW 35Ncm (3.1 in.LB) / max.40Ncm (3.5 in.LB)

19. CONNECTOR IS PART MARKED: 6HDF62PoY04R40X CONEC ABC (see note 4)

55,3 -0

0,25

+

POS. 43

POS. 22

POS. 1

4-40 UNC

O-RING

METAL BRACKET

FIXING PLATE

4-40 UNC

SEE NOTE 19

SEE NOTE 10

8,26 -0,03

0,22

+

3,3 -0,3

0,5

+

6,35 `0,3

SEALING

COMPOUND

( 5 : 1 )

RUBBER GASKET

PLACED ON TOP SURFACE

OF MALE INSULATOR

63,5 `0,13

PRESS FOR FIXING ON PCB

4,8

SW

Directive 2002/95/EC RoHS compliant

o

(see note 4)

PCB-SNAP

3,2 `0,2

78 - 0

0,3

+

10°

b

b
