4LS
Typical Operating Characteristics
Datasheet
• PUBLIC
DS000542
• v3-01 • 2022-Nov-17
114
│ 20

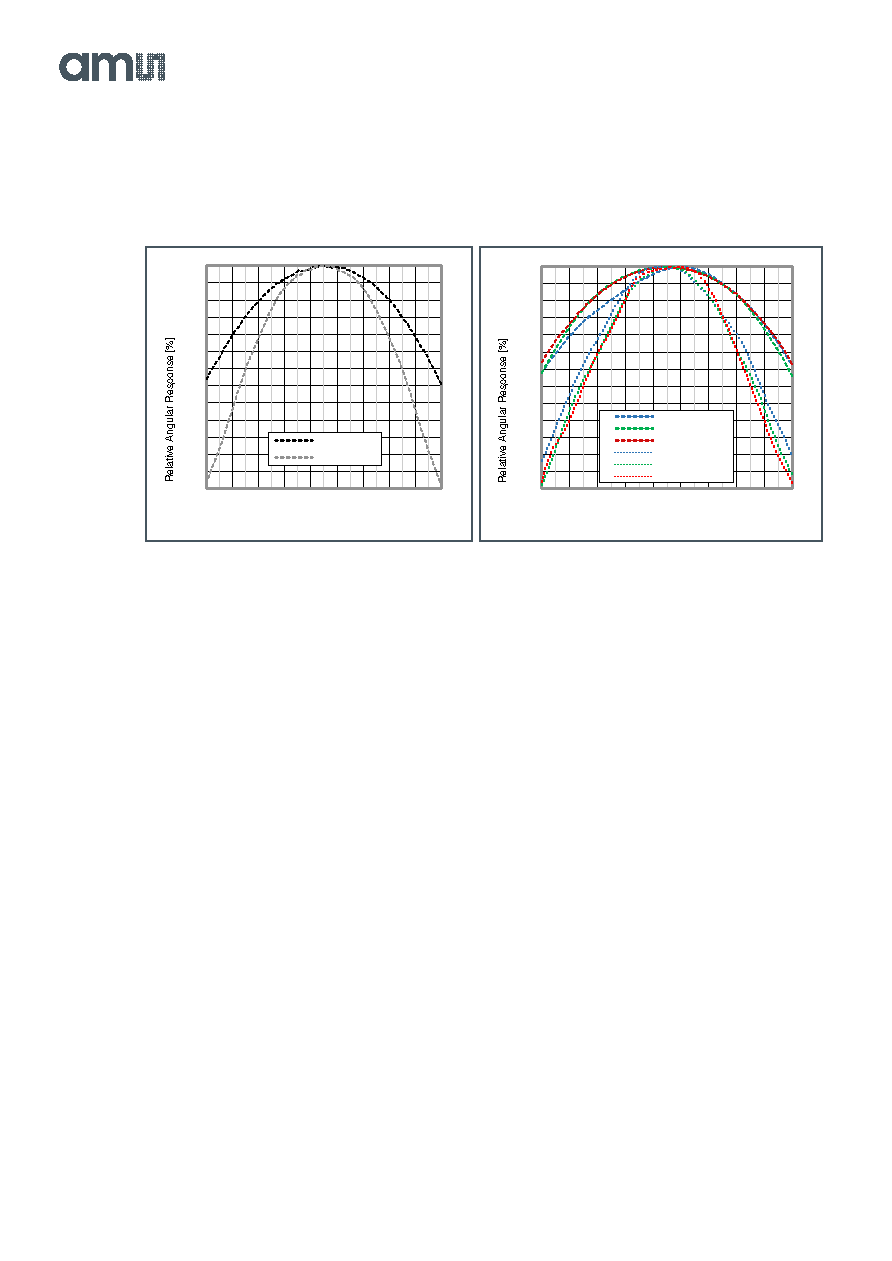

Figure 23:
4LS Monochrome Relative Angular
Response(1)
Figure 24:
4LS RGB Relative Angular Response(1)(2)
(1)
Due to the nature of 4LS pixel and sensor structure, the pixel matrix gets shielded by thick metal barriers, between each
pixel line. Therefore it is observed a lower response when the sensor is rotated horizontally, or when the illumination
varies horizontally relative to the sensor.
(2)
When the sensor is rotated vertically, or the illumination varies vertically relative to the sensor, additional metal barriers
on the left side of the pixel will block a part of blue light, while red and green can pass through the metal easier.
35
40
45
50
55
60
65
70
75
80
85
90
95
100
-45 -35 -25 -15
-5
5
15
25
35
45
Angle (º)
AR Mono Vertical
AR Mono Horizontal
35
40
45
50
55
60
65
70
75
80
85
90
95
100
-45 -35 -25 -15
-5
5
15
25
35
45
Angle (º)
AR Blue Vertical
AR Green Vertical
AR Red Vertical
AR Blue Horizontal
AR Green Horizontal
AR Red Horizontal
